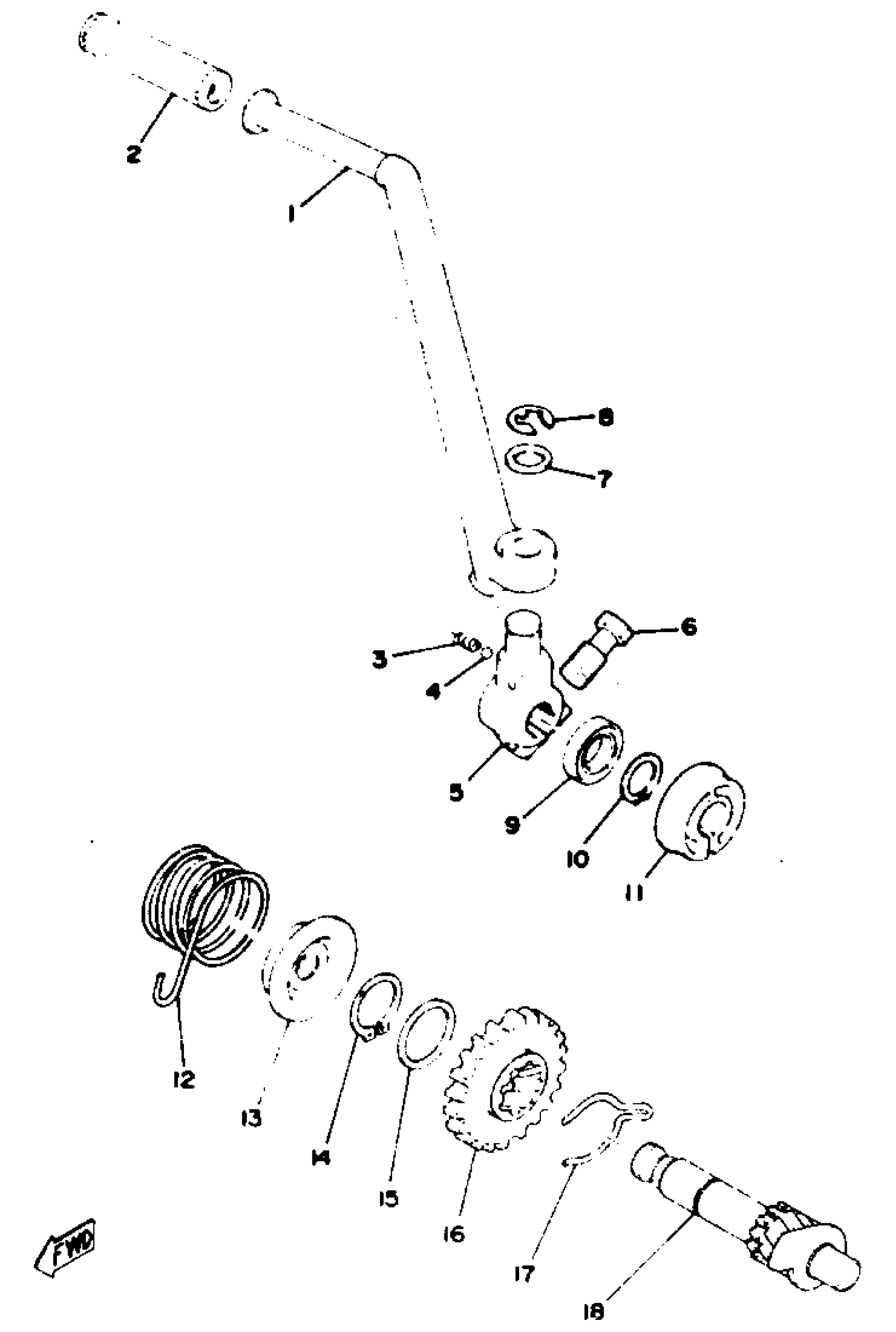

Yamaha RD125C (RD125) 1976 KICK STARTER Diagram

#

Description
Price

1

CRANK,KICK

278-15611-00-00

Unavailable

2

COVER, KICK LEVER

156-15618-01-00

$5.99

3

SPRING COMPRESSION278156220000

90501-12081-00

$5.75

4

BALL (12R)

93507-32031-00

$3.65

5

BOSS, KICK CRANK

337-15621-01-00

Unavailable

6

BOLT, HEXAGON

97017-06025-00

$2.78

7

WASHER PLATE 278156130000

90201-15234-00

$6.34

8

CIRCLIP

99006-10600-00

$6.45

9

OIL SEAL (15X26X6-102)

93109-15001-00

$6.93

10

CIRCLIP(1AR)

99009-15400-00

$4.89

11

COVER, KICK SPRING

132-15676-01-00

Unavailable

12

SPRING TORSION 304156650000

90508-26136-00

Unavailable

13

GUIDE, KICK SPRING

132-15664-01-00

$9.38

14

CIRCLIP (256)

93410-25017-00

$2.41

15

WASHER, PLATE(59W)

90201-253K0-00

$5.76

16

GEAR, KICK

180-15641-00-00

Unavailable

17

CLIP 315156870000

90468-26048-00

Unavailable

18

KICK AXLE ASSEMBLY

180-15660-01-00

Unavailable
