1976 Yamaha RD125 (RD125C) Crankcase Cover Diagram

← All diagrams

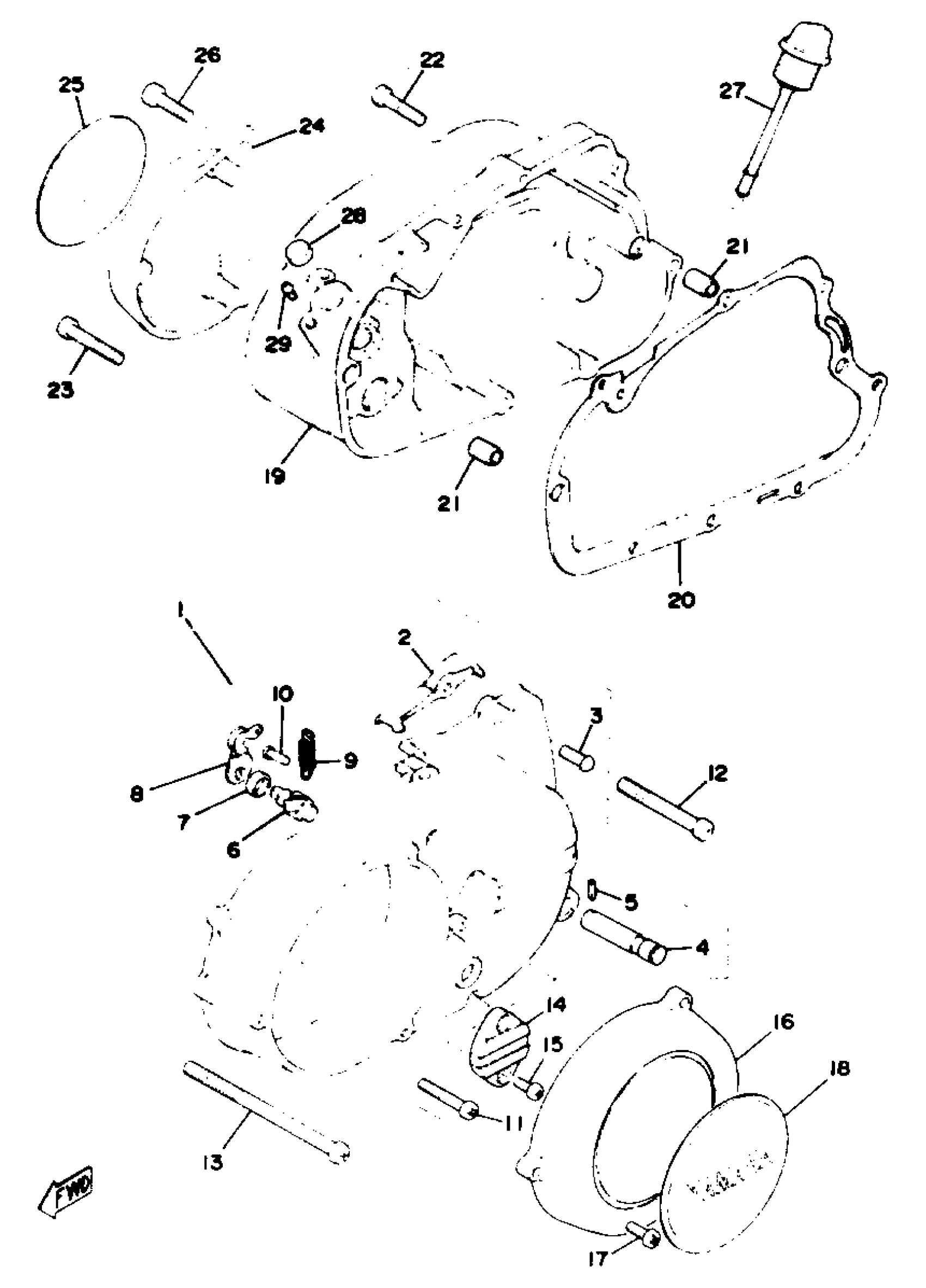

Find the part on the Crankcase Cover diagram for your 1976 Yamaha RD125 (RD125C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha RD125 (RD125C) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRCS COVER ASSEMBLY L

(396-15410-00-00)

1
Out of stock

2

COVER, CHAIN CASE

(183-15418-01-00)

1
Out of stock

3

RIVET

(90266-06005-00)

1
Out of stock

4

AXLE, PAWL HOLDER

(307-18188-00-00)

1
Out of stock

5

PIN, SPRING

91690-30014-00

1
Out of stock

6

SCREW, PUSH

241-16341-01-00

1
Out of stock

7

SEAL 0IL (2V7)

93104-10085-00

1
Out of stock

8

LEVER, PUSH

241-16342-00-00

1
Out of stock

9

SPRING TENSION 132163450000

90506-10019-00

1
Out of stock

10

HOOK, SPRING

132-16346-00-00

1
Out of stock

11

SCREW, PAN

98507-06035-00

1
Out of stock

12

SCREW, PAN

98507-06060-00

1
Out of stock

13

SCREW,PAN

98507-06120-00

1
Out of stock

14

COVER, CAP

(396-15417-00-00)

1
Out of stock

15

SCREW, PAN

98517-05012-00

1
Out of stock

16

COVER, GENERATOR

(389-15415-00-00)

1
Out of stock

17

SCREW, PAN

98517-06020-00

—
Out of stock

18

COVER, GENERATOR R

389-15425-00-00

1
Out of stock

19

COVER, CRANKCASE R

(396-15421-00-00)

1
Out of stock

20

GASKET, CRANK CASE COVER (R.H)

252-15451-01-00

—
Out of stock

21

PIN, DOWEL(3VD)

99530-10114-00

—
Out of stock

22

SCREW, PAN

98517-06030-00

1
Out of stock

23

SCREW, PAN

98507-06040-00

—
Out of stock

24

COVER, OIL PUMP

(389-15416-00-00)

1
Out of stock

25

COVER, OIL PUMP R

(389-15426-00-00)

1
Out of stock

26

SCREW, PAN

98507-06035-00

1
Out of stock

27

PLUG, OIL

(307-15363-00-00)

1
Out of stock

28

PLUG(12Y)

90338-16029-00

—
Out of stock

29

SCREW PAN HEAD

98580-06010-00

—
Out of stock
