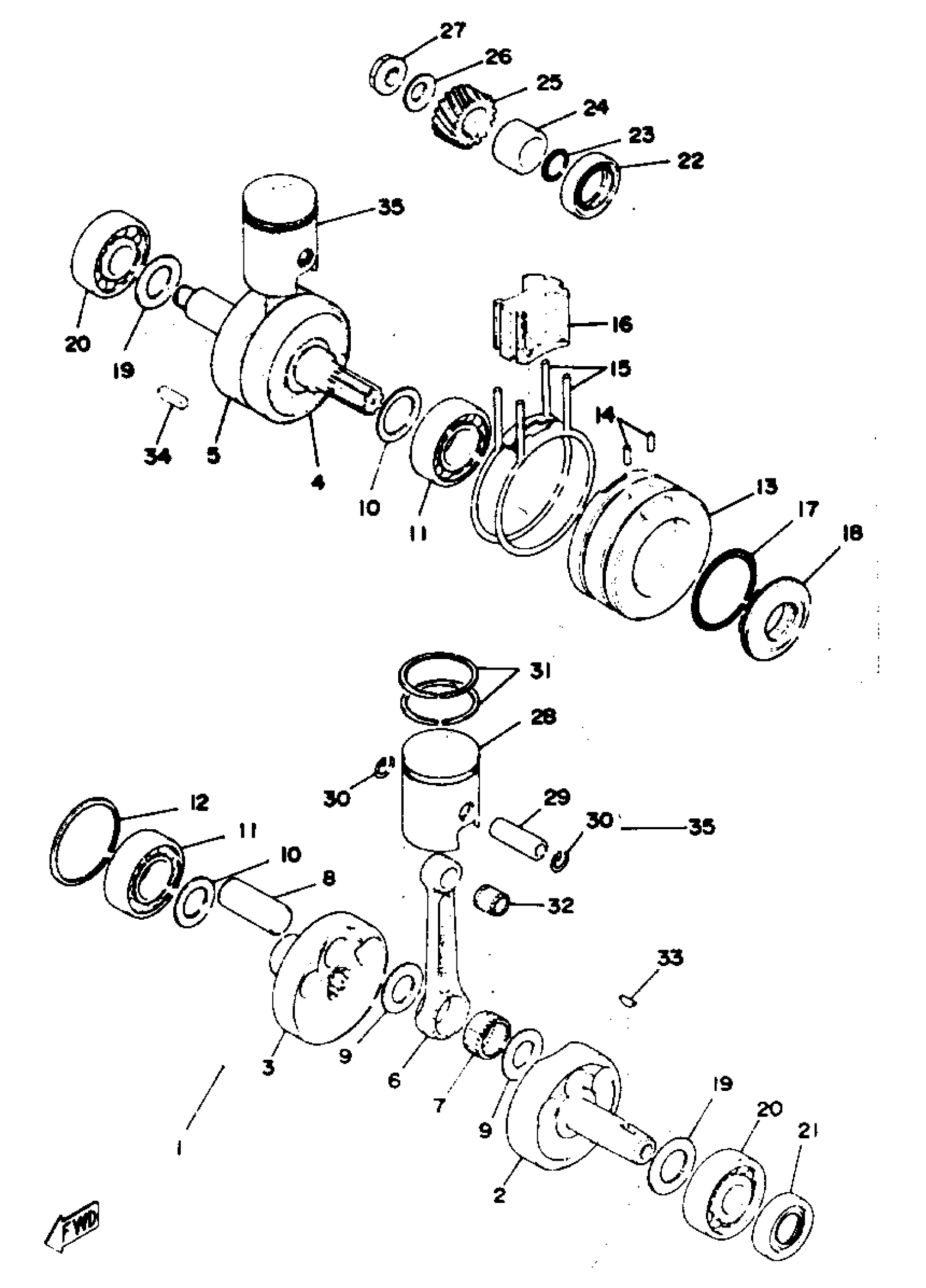

Find the part on the Crank Piston diagram for your 1976 Yamaha RD125 (RD125C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha RD125 (RD125C) Crank Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(416-11400-00-00)

1
Out of stock

2

CRANK 1

(183-11412-03-00)

1
Out of stock

3

CRANK 2

(132-11422-04-00)

1
Out of stock

4

CRANK 3

(132-11432-03-00)

1
Out of stock

5

CRANK 4

(389-11442-00-00)

1
Out of stock

6

. ROD, CONNECTING

1E7-11651-00-00

1
Out of stock

7

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

1
Out of stock

8

. PIN, CRANK 1

3R1-11681-00-00

1
Out of stock

9

WASHER 132116850000

90209-18112-00

1
Out of stock

10

. SHIM, CRANK 1

132-11561-00-03

1
Out of stock

11

1

$35.25

In stock

12

. CIRCLIP

93450-52010-00

1
Out of stock

13

COVER, CRANK

(132-11511-02-00)

1
Out of stock

14

PIN, DOWEL(4SS)

93604-18251-00

1
Out of stock

15

. SEAL, CRANK COVER

183-11512-00-00

1
Out of stock

16

METAL, FILLER

(307-11541-00-00)

1
Out of stock

17

. O-RING

93210-48045-00

1
Out of stock

18

. SEAL, LABYRINTH 1

132-11515-01-00

1
Out of stock

19

SHIM, CRANK 1

136-11561-00-03

1
Out of stock

19

SHIM, CRANK 1

136-11561-00-04

1
Out of stock

19

SHIM, CRANK 1

136-11561-00-05

1
Out of stock

19

SHIM, CRANK 1

136-11561-00-06

1
Out of stock

19

SHIM, CRANK 1

136-11561-00-07

1
Out of stock

19

SHIM, CRANK 1

136-11561-00-08

1
Out of stock

20

—

$54.91

In stock

21

OIL SEAL, SD-TYPE

93102-20117-00

1
Out of stock

22

OIL SEAL (28X40X8-132)

93103-28011-00

—

$12.05

In stock

23

O-RING(3KX)

93210-180A6-00

—

$4.78

In stock

24

COLLAR 183161360000

90387-20163-00

—
Out of stock

25

GEAR, PRI DRIVE

(389-16111-00-00)

1
Out of stock

26

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

27

NUT(1EE)

90179-12659-00

—

$5.37

In stock

28

PISTON STD

466-11631-01-97

1
Out of stock

28

PISTON 1 O/S 0.25

466-11635-01-00

1
Out of stock

28

PISTON 2 O/S 0.50

466-11636-01-00

1
Out of stock

28

PISTON 3 O/S 0.75

(466-11637-01-00)

1
Out of stock

28

PISTON 4 O/S 1.00

(466-11638-01-00)

1
Out of stock

29

PIN, PISTON

183-11633-01-00

1
Out of stock

30

CIRCLIP 132116340000

93450-13022-00

—
Out of stock

31

PISTON RINGSET STD

307-11601-01-00

1
Out of stock

31

PISTON RINGSET 1ST

307-11601-11-00

1
Out of stock

31

PISTON RINGSET 2ND

307-11601-21-00

1
Out of stock

31

PISTON RINGSET 3RD

(307-11601-31-00)

1
Out of stock

31

PISTON RINGSET 4TH

(307-11601-41-00)

1
Out of stock

32

BEARING, CYLINDER.#10

93310-11296-00

1
Out of stock

33

KEY WOODRUFF 146115450000

90280-03017-00

—

$5.78

In stock

34

KEY, STRAIGHT 3531154600

90282-05005-00

—
Out of stock

35

PISTON KIT STD

466-11630-00-00

1
Out of stock

35

PISTON KIT 2ND

(466-11630-20-00)

1
Out of stock
