1975 Yamaha RD125 (RD125B) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1975 Yamaha RD125 (RD125B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

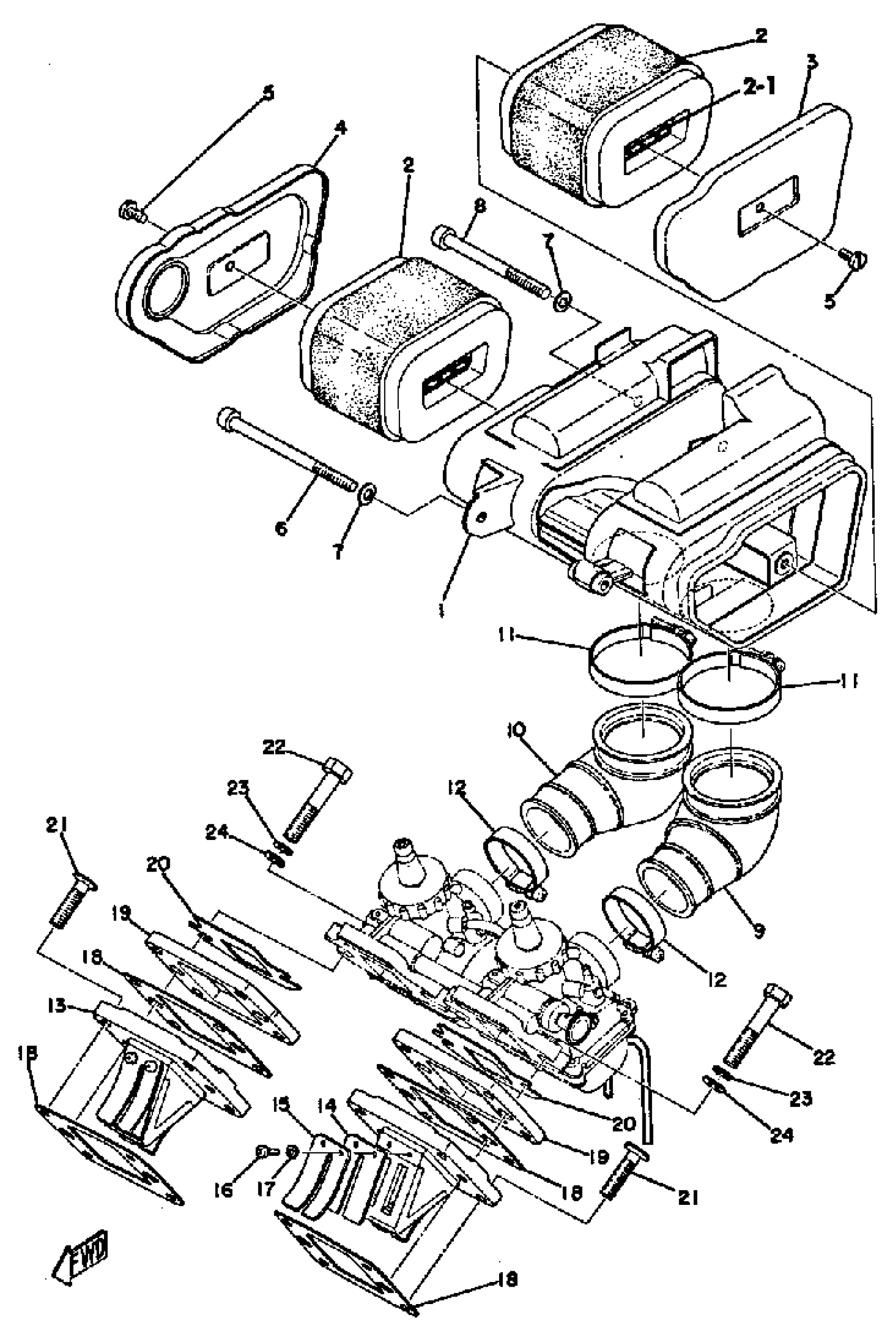

1975 Yamaha RD125 (RD125B) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

(397-14411-00-00)

1
Out of stock

2

ELEMENT, AIR CLNR

396-14451-09-00

1
Out of stock

3

CAP, CLEANER CASE 1

(389-14412-01-00)

1
Out of stock

4

CAP, CLEANER CASE 2

(397-14422-00-00)

1
Out of stock

5

SCREW, CYLINDER.HEAD

(98301-05010-00)

1
Out of stock

6

SCREW, PAN HEAD

98580-06580-00

1
Out of stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

SCREW PAN HEAD

98580-06570-00

1

$17.32

In stock

9

JOINT, AIR CLNR 1

389-14453-00-00

1
Out of stock

10

JOINT, AIR CLNR 2

389-14463-00-00

1
Out of stock

11

CLAMP HOSE 278144550000

90460-49058-00

1
Out of stock

12

CLAMP, HOSE

90460-37130-00

1
Out of stock

13

REED VALVE ASSEMBLY

(389-13610-01-00)

1
Out of stock

14

. REED, VALVE

389-13613-00-00

1
Out of stock

15

STOPPER, REED VALVE

(389-13616-01-00)

1
Out of stock

16

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

17

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

18

GASKET,VALVE SEAT

389-13621-09-00

1
Out of stock

19

MANIFOLD, INTAKE

389-13555-00-00

1
Out of stock

20

GASKET, VALVE SEAT

389-13622-01-00

1
Out of stock

21

SCREW, FLAT

98707-06025-00

—
Out of stock

22

BOLT,SOCKET

91317-08040-00

—

$5.68

In stock

23

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

24

WASHER(6TC)

92907-08200-00

—
Out of stock
