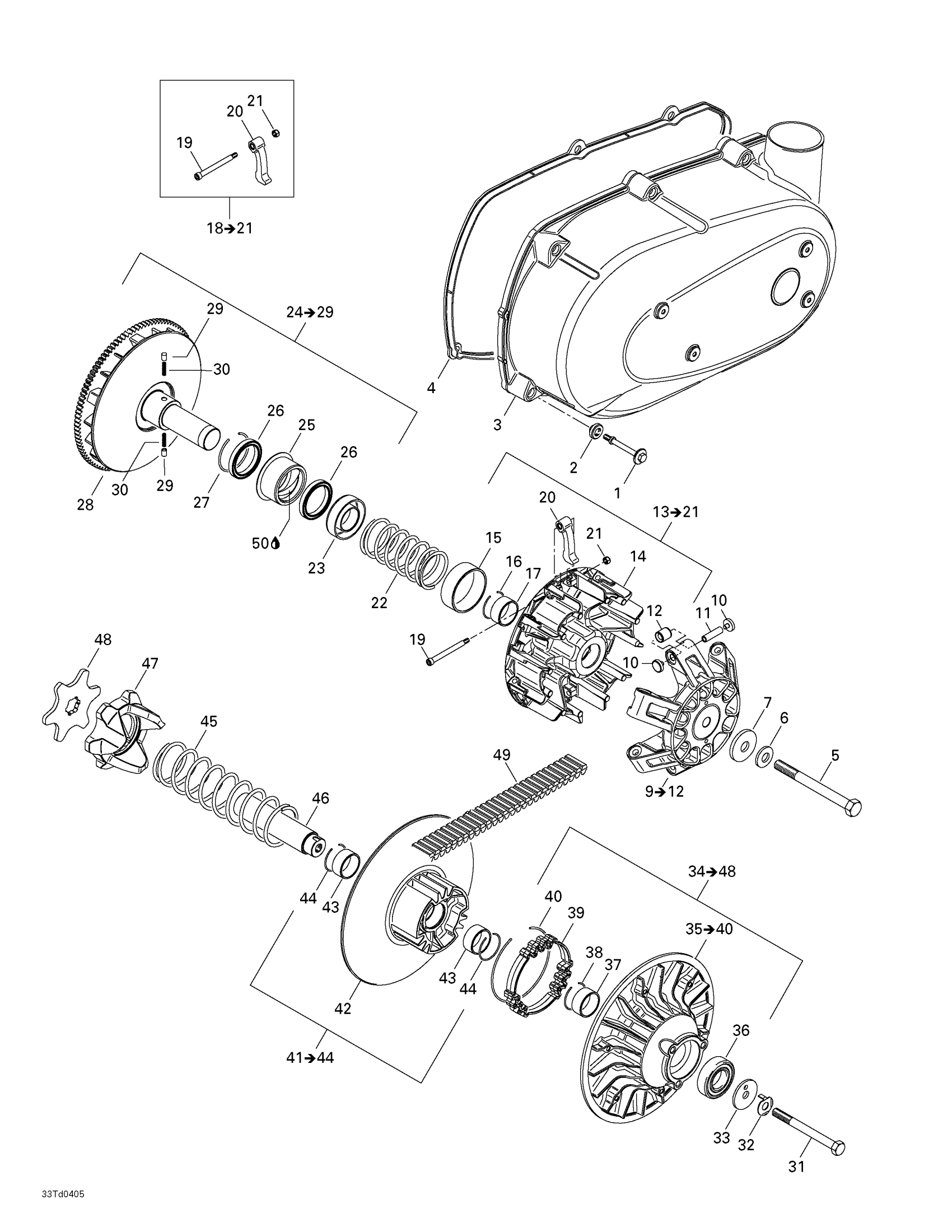

Can-Am Quest XT, 2004 Belt And Engine Pulley Diagram

#

Description
Price

1

DISTANCE SCREW M6 X 47.9 - Call your local BRP dealership

420240906

$23.10

2

Rubber Bushing

420260050

Unavailable

3

TRANSMISSION COVER - Call your local BRP dealership

420610350

Unavailable

4

GASKET - Call your local BRP dealership

420630110

Unavailable

5

Hex. Screw M12 X 140

420641859

$23.10

6

Spring Washer

420627768

$18.63

7

Thrust Washer

420627920

$6.93

8

CVT Drive Pulley Ass'y | Traxter 650 CVT, Includes 8 To 30

420684340

Unavailable

CVT Drive Pulley Ass'y | Traxter 500 CVT, Includes 8 To 30

420684345

Unavailable

9

Governor Cup Ass'y | Includes 6 to 9

420280522

$241.76

10

Slider Shoe Set

420281296

$41.01

11

Roller Axle

417223257

$6.37

12

Roller

417223767

$7.15

13

Outer Half Ass'y | Traxter 500 CVT, Includes 13 To 21

420280148

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Centrifugal Lever Kit | Traxter 500 CVT, Includes 18 To 21

420248431

Unavailable

18

CENTRIFUGAL LEVER KIT - Call your local BRP dealership | Traxter 650 CVT, Includes 18 To 21

420248408

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Compression Spring | Traxter 650 CVT

420238164

Unavailable

Compression Spring

420238166

$32.06

23

SPRING SEAT - Call your local BRP dealership

420627573

Unavailable

24

Inner Half Ass'y | Includes 24 To 30

420281395

Unavailable

25

Drive Pulley Clutch

420257195

$109.24

26

Ball Bearing

420632377

$46.24

27

Retaining Ring

420245951

$5.39

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Spring Sleeve

420229577

$17.13

30

Spring

420239134

$2.90

31

Hex. Screw M10 X 110

420441485

$11.37

32

TAB WASHER - Call your local BRP dealership

420245925

Unavailable

33

Thrust Washer

420627594

$11.81

34

CVT Driven Pulley Ass'y | Includes 34 To 49

420684350

Unavailable

35

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$341.76

36

Ball Bearing

420932421

$26.09

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

TORQUE GEAR - Call your local BRP dealership

420660120

Unavailable

40

Retaining Ring

420245911

$5.31

41

DRIVEN PULLEY INNER HALF ASS'Y - Call your local BRP dealership | Includes 42 To 45

420280186

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Compression Spring, Driven Pulley

420238173

$51.46

46

Driven Pulley Shaft

420220913

$120.87

47

DRIVEN PULLEY CAM - Call your local BRP dealership

420280191

Unavailable

48

Cam Plate

420627586

$43.25

49

Drive Belt

422280283

$92.51

V-belt | Traxter 650 CVT

715900023

$138.03

50

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
