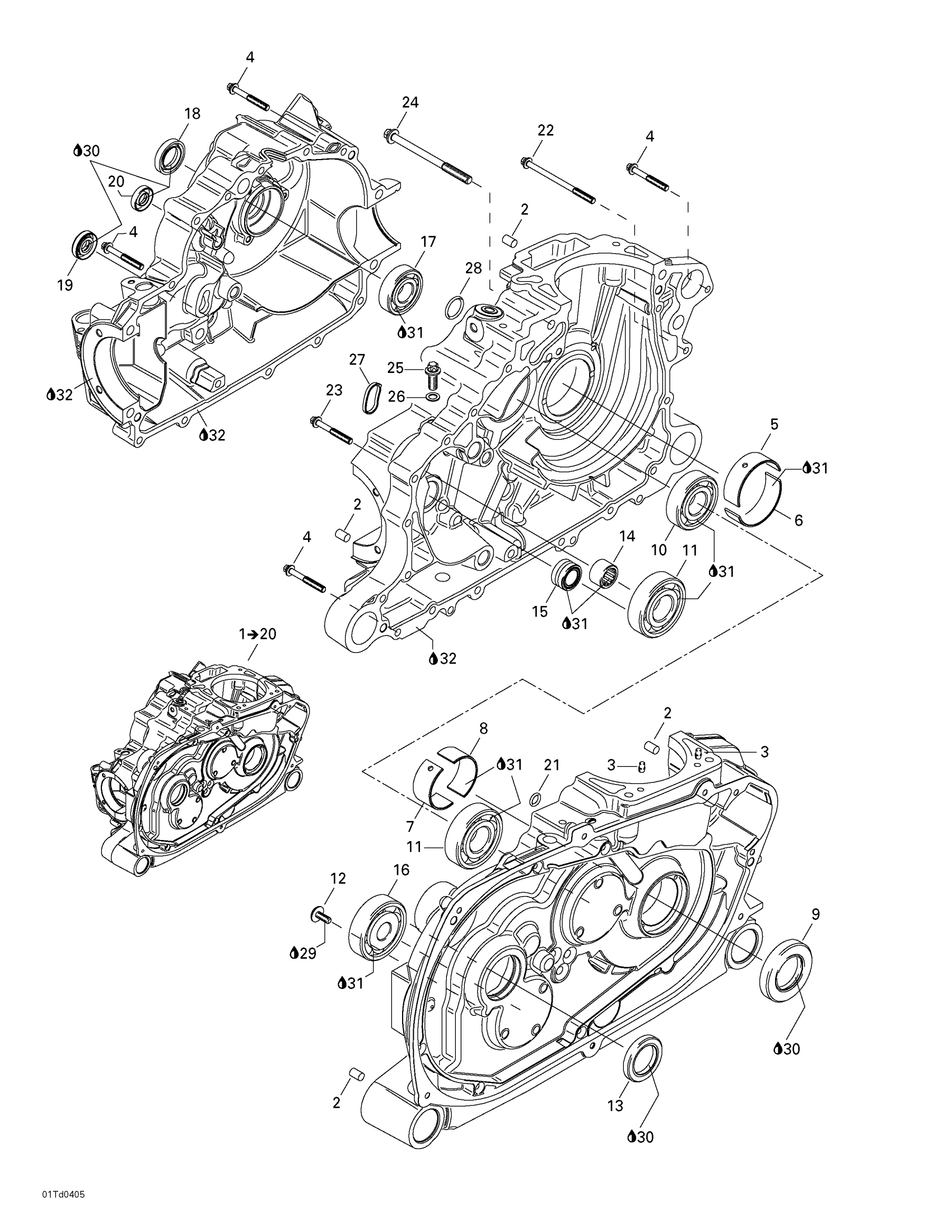

Can-Am Quest XT, 2004 Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 To 21

420296652

Unavailable

2

Center Pin 8 X 12

420632010

$3.07

3

Drive Pin 5 X 10

420929650

$1.34

4

Torx Flange Screw M6 X 45

420440324

$0.81

5

BEARING SLEEVE - Call your local BRP dealership

420933492

Unavailable

6

Bushing_Half - Call your local BRP dealership

420933495

Unavailable

7

Bushing_Half - Call your local BRP dealership

420233740

Unavailable

8

Bushing_Half - Call your local BRP dealership

420233745

Unavailable

9

Oil Seal

420630152

$15.64

10

BALL BEARING 63/22 - Call your local BRP dealership

420632200

Unavailable

11

Ball Bearing

420932822

$28.33

12

Torx Screw M6 X 16

420241529

$1.56

13

Oil Seal

420950089

$17.88

14

Needle Bushing

420832240

$19.37

15

Needle Bushing

420232085

$35.04

16

Ball Bearing

420632295

$44.00

17

Ball Bearing 6204

420932433

$21.61

18

Oil Seal

420930392

$11.77

19

Oil Seal

420650315

$9.62

20

Oil Seal

420250450

$15.64

21

O-Ring

420850900

Unavailable

22

Torx Flange Screw M6 X 85

420641228

$6.11

23

Torx Flange Screw M6 X 45

420440324

$0.81

24

Torx Flange Screw M8 X 90

420440412

$7.01

25

Torx Flange Screw M8 X 25

420440372

$3.88

26

Sealing Ring

420950141

$1.64

27

GASKET - Call your local BRP dealership

420630180

Unavailable

28

O-RING - Call your local BRP dealership

420950180

Unavailable

29

Loctite 243, 10 ml

293800060

$20.77

30

Grease, Super Lube

293550030

$24.67

31

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

32

Loctite 5910, 300 ml

293800081

$57.99
