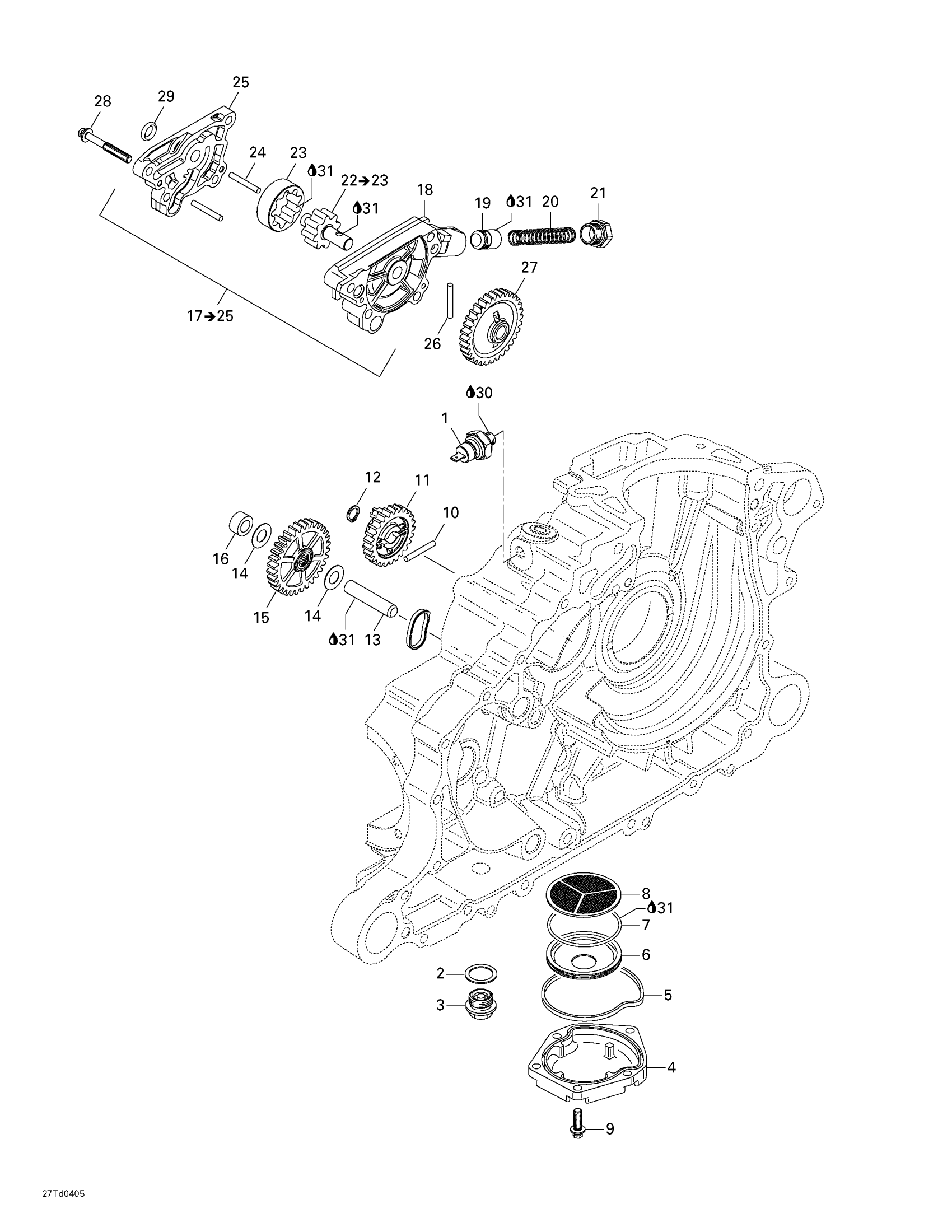

Can-Am Quest XT, 2004 Engine Lubrication Diagram

#

Description
Price

1

OIL PRESSURE SWITCH - Call your local BRP dealership

710000313

Unavailable

2

Crush Washer

420552280

$2.99

3

Drain Plug M18 X 1.5

420840278

$22.36

4

OIL SIEVE COVER - Call your local BRP dealership

420211940

Unavailable

5

Rubber Ring

420650560

$14.34

6

Oil Collector

420256650

$46.99

7

O-Ring

420650697

$9.25

8

Oil Sieve

420256576

$17.88

9

Torx Flange Screw M6 X 25

420440234

$2.91

10

Needle Pin

420232431

$3.67

11

Idle Gear, 25 Teeth

420635191

$15.64

12

Snap Ring

420245330

$1.43

13

LOCATION PIN - Call your local BRP dealership

420229300

Unavailable

14

THRUST WASHER - Call your local BRP dealership

420927952

Unavailable

15

SPROCKET, 32 TEETH - Call your local BRP dealership

420834267

Unavailable

16

SPACER - Call your local BRP dealership

420247080

Unavailable

17

Oil Pump Ass'y | Includes 17 To 25

420296505

Unavailable

18

Oil Pump Housing

420610221

$89.52

19

Piston Valve

420256922

$11.70

20

Compression Spring

420238220

$7.24

21

Plug Screw M16

420641167

$17.88

22

Oil Pump Shaft

420220814

$120.12

23

Oil Pump Outer Rotor

420256935

$64.90

24

Needle Pin

420232431

$3.67

25

Oil Pump Cover

420610210

Unavailable

26

Needle Pin

420232431

$3.67

27

Oil Pump Gear, 32 Teeth

420635220

$19.37

28

Torx Flange Screw M6 X 45

420440324

$0.81

29

O-RING - Call your local BRP dealership

420250405

Unavailable

30

Loctite 243, 10 ml

293800060

$20.77

31

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
