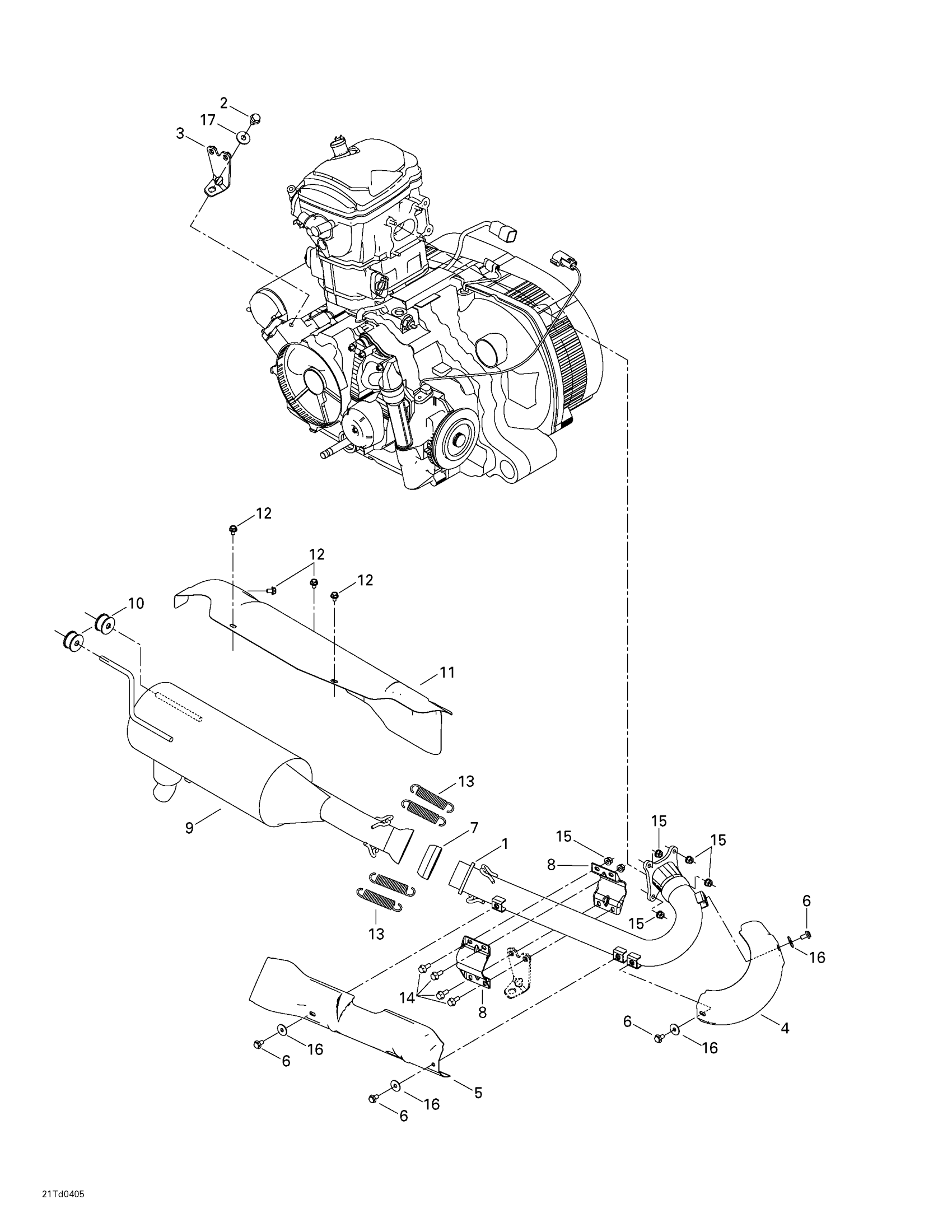

Can-Am Quest XT, 2004 Exhaust System Diagram
#
Description
Price
1
TUNED PIPE - Call your local BRP dealership
707600084
Unavailable
2
Hex. Flange Screw M8 X 16, Scotch Grip
207581646
Unavailable
3
Exhaust Support
707600131
Unavailable
4
Heat Shield Black
707600167
Unavailable
5
Heat Shield Black
707600168
Unavailable
6
HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership
250000073
Unavailable
7
Pipe Gasket
707600164
Unavailable
8
Exhaust Clamp
707600165
Unavailable
9
Tuned Pipe
707600230
Unavailable
11
Heat Shield
707600076
Unavailable
13
SPRING - Call your local BRP dealership
707600177
Unavailable
14
Hex. Flange Screw M6 X 16
207661646
Unavailable
15
Hex. Flange Nut M6
233061414
Unavailable
16
Flat Washer
224060201
Unavailable
