1992 Yamaha Y-Zinger (PW80D) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1992 Yamaha Y-Zinger (PW80D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

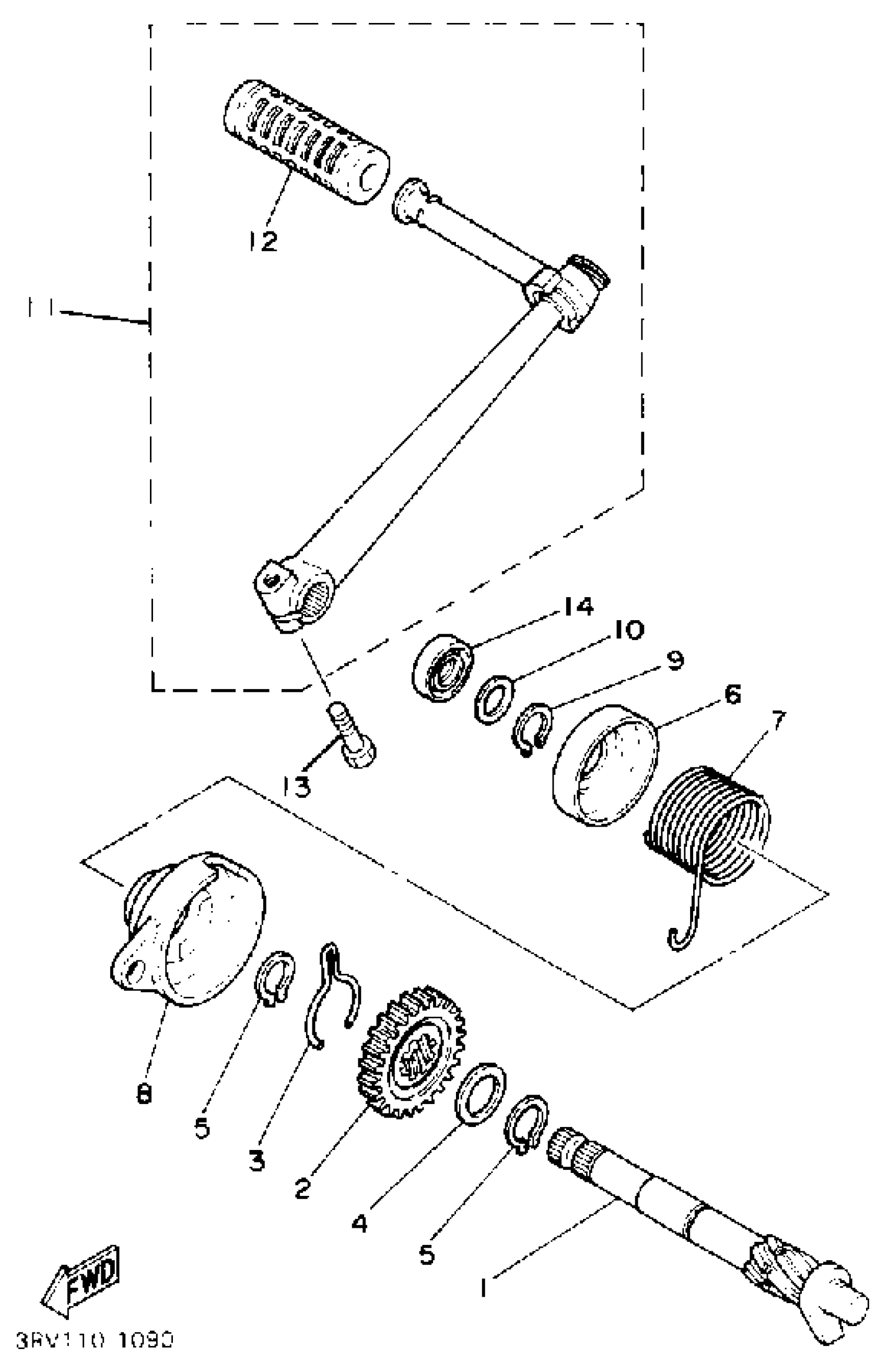

1992 Yamaha Y-Zinger (PW80D) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSY

3E5-15660-00-00

1
Out of stock

2

GEAR, KICK (21T)

3E5-15641-00-00

1
Out of stock

3

CLIP(4ES)

90468-23194-00

1

$7.91

In stock

4

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

5

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

6

COVER, SPRING

3E5-15676-00-00

1
Out of stock

7

SPRING TORSION 304156650000

90508-26136-00

—
Out of stock

8

GUIDE, SPRING

4BC-15664-00-00

1
Out of stock

9

CIRCLIP(1EY)

99009-17400-00

1
Out of stock

10

WASHER (566)

90201-15701-00

1

$6.17

In stock

11

KICK CRANK ASSY

4BC-15620-00-00

1
Out of stock

12

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

13

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

14

OIL SEAL (15X26X6-102)

93109-15001-00

1

$7.42

In stock
