1992 Yamaha Y-Zinger (PW80D) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1992 Yamaha Y-Zinger (PW80D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

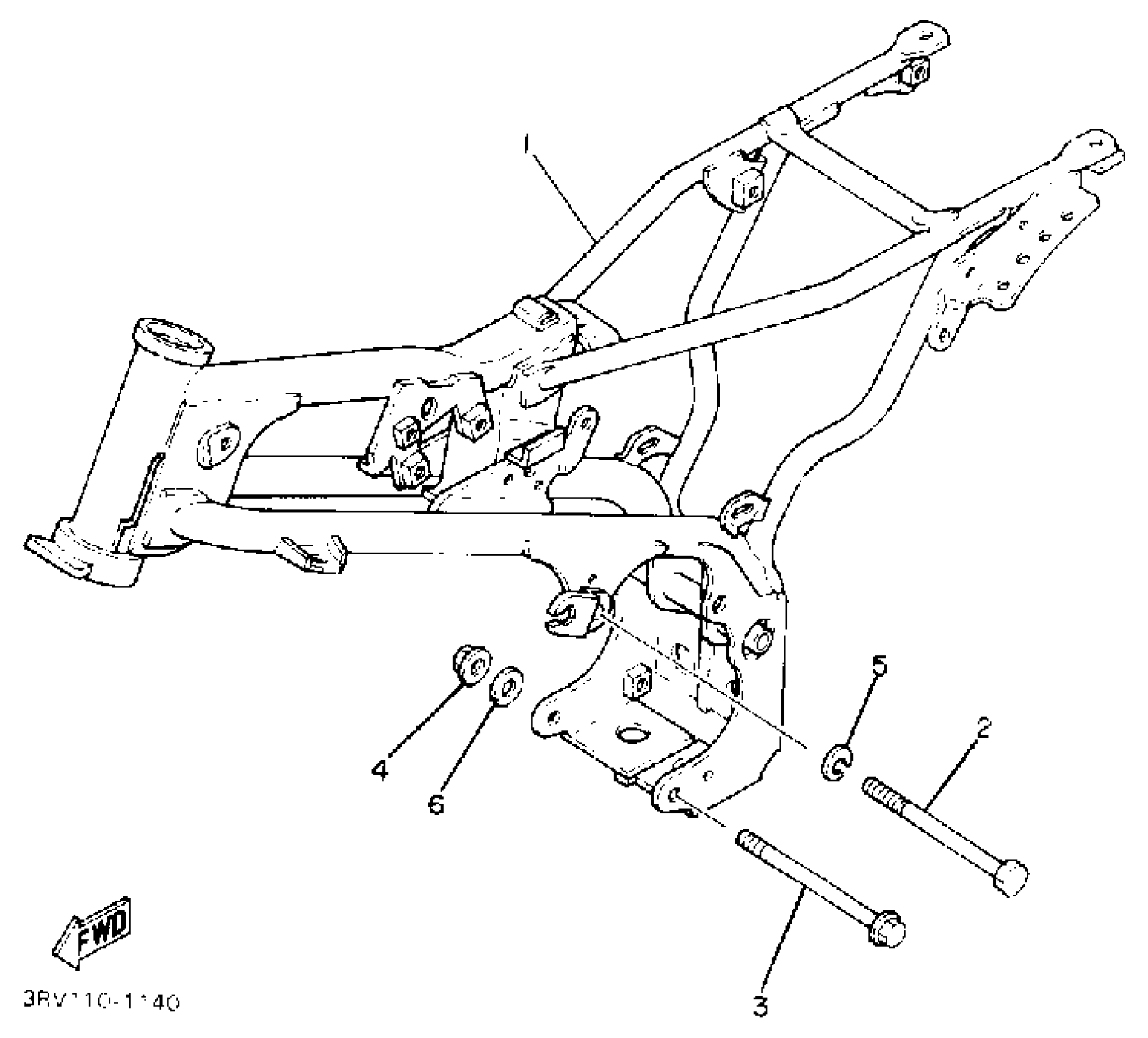

1992 Yamaha Y-Zinger (PW80D) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

21W-21110-10-33

1
Out of stock

2

BOLT, HEXAGON (582)

90101-08286-00

1
Out of stock

3

BOLT, FLANGE(4EM)

95817-08120-00

1

$3.83

In stock

4

NUT, FLANGE

95704-08500-00

1
Out of stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

WASHER, PLATE(3XP)

90201-086P8-00

1

$4.35

In stock
