1992 Yamaha Y-Zinger (PW80D) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 1992 Yamaha Y-Zinger (PW80D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

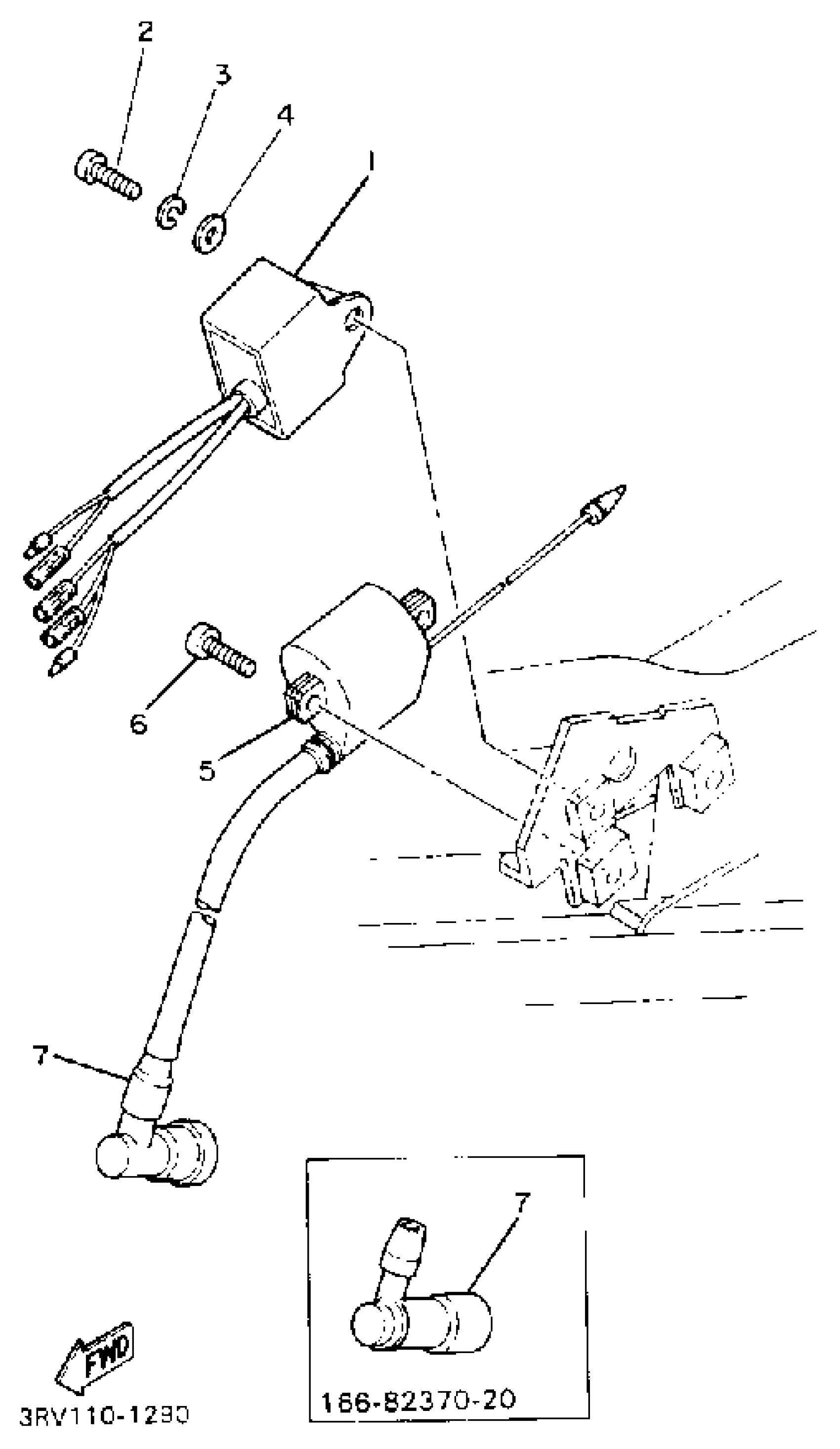

1992 Yamaha Y-Zinger (PW80D) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

C.D.I. UNIT ASSY

21W-85540-20-00

1
Out of stock

2

SCREW PAN HEAD

98580-06020-00

1
Out of stock

3

WASHER, SPRING

92995-06100-00

1
Out of stock

4

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

5

IGNITION COIL ASSEMBLY

43G-82310-40-00

1
Out of stock

6

SCREW PAN HEAD

98580-06020-00

1
Out of stock

7

PLUG CAP ASSY

56J-82370-00-00

1
Out of stock

7

PLUG CAP ASSY

166-82370-20-00

1
Out of stock
