1992 Yamaha Y-Zinger (PW80D) Generator Diagram

← All diagrams

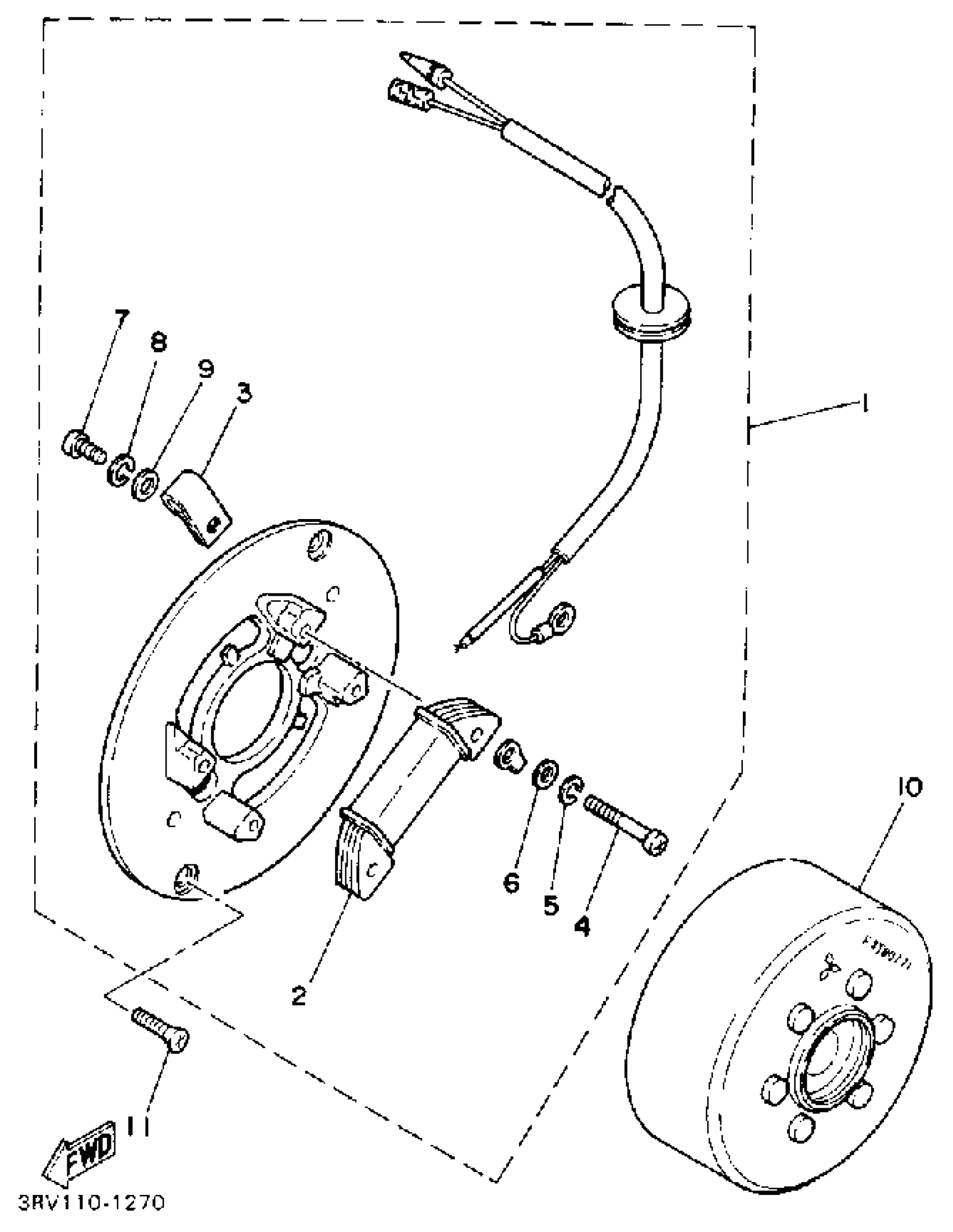

Find the part on the Generator diagram for your 1992 Yamaha Y-Zinger (PW80D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Y-Zinger (PW80D) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSEMBLY

1RY-85510-20-00

1
Out of stock

2

. COIL, SOURCE

1RY-85512-20-00

1
Out of stock

3

CLAMP, LEAD

104-81328-20-00

1

$6.31

In stock

4

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

5

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

6

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

7

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

8

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

9

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

10

ROTOR ASSEMBLY

21W-85550-20-00

1
Out of stock

11

SCREW, FLAT

98707-05016-00

1

$5.60

In stock
