1983 Kawasaki Prairie Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1983 Kawasaki Prairie, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

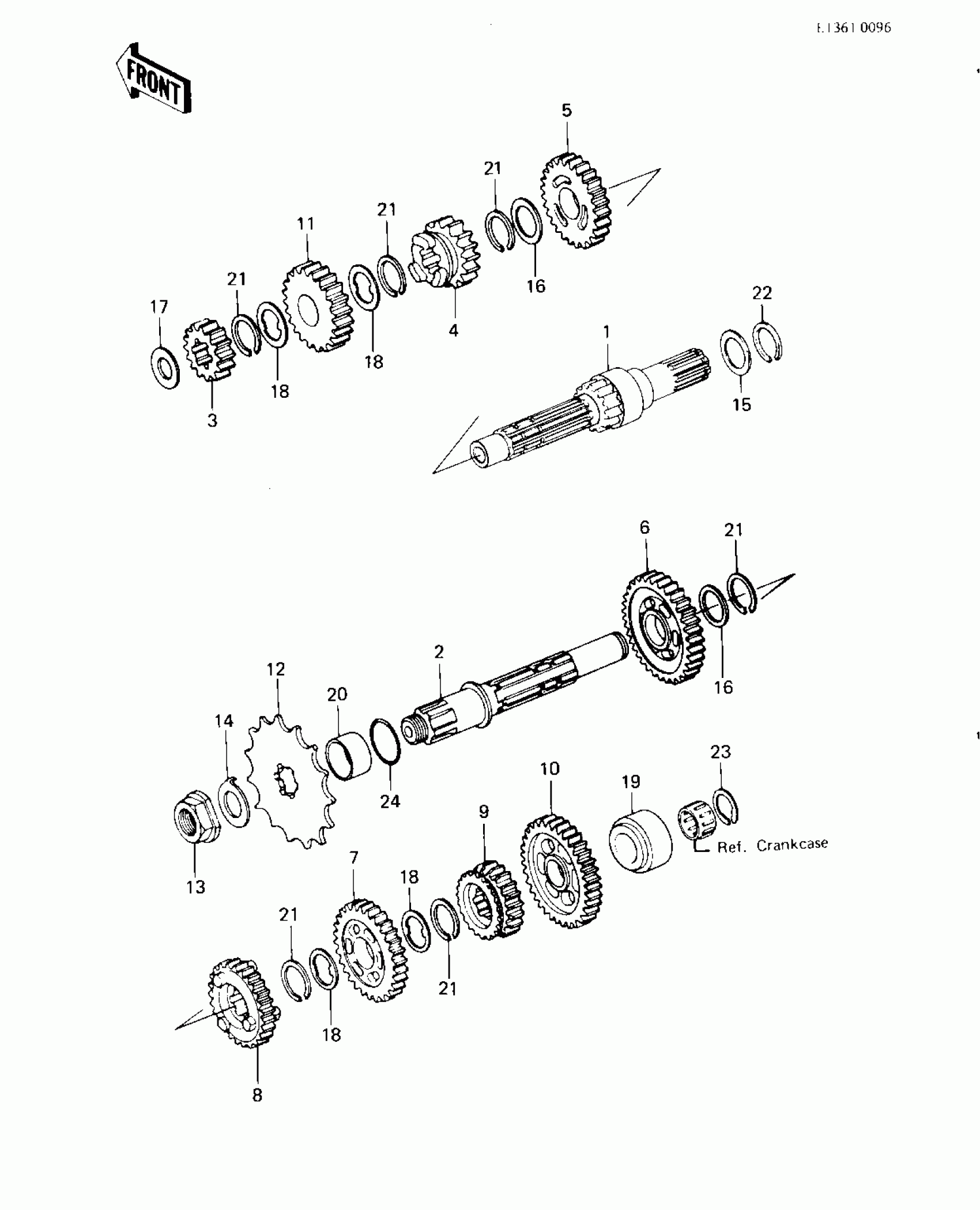

1983 Kawasaki Prairie Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT-TRANSMISSION IN

13127-1068

1
Out of stock

2

SHAFT,OUTPUT

13128-1007

1
Out of stock

3

GEAR,INPUT,2ND,13T

13129-1316

1
Out of stock

4

GEAR,INPUT,3RD,18T

13129-1317

1
Out of stock

5

GEAR,INPUT,TOP,24T

13129-1318

1
Out of stock

6

GEAR,OUTPUT,2ND,27T

13129-1320

1
Out of stock

7

GEAR,OUTPUT,3RD,26T

13129-1321

1
Out of stock

8

GEAR,OUTPUT,4TH,21T

13129-1322

1
Out of stock

9

GEAR,OUTPUT,TOP,20T

13129-1323

1
Out of stock

10

GEAR-TRANSMISSION SPU

13129-1422

1
Out of stock

11

4TH GEAR,DRIVE SHAFT

13134-026

1
Out of stock

12

SPROCKET-OUTPUT,13T

13144-1038

1
Out of stock

12

SPROCKET-OUTPUT,12T

13144-1039

—
Out of stock

13

NUT,LOCK,16M/M

92015-1013

1
Out of stock

14

WASHER,LOCK

92022-1017

1
Out of stock

15

1

$7.04

In stock

16

WASHER,22.3X27X0.5

92022-198

1
Out of stock

17

WASHER,THRUST,15MM

92022-279

1
Out of stock

18

WASHER,TOOTHED,22.5X27X0.5

92024-039

1
Out of stock

19

SPACER,DRIVE SHAFT

92026-1061

1

$8.63

In stock

20

COLLAR,ENGINE SPROCKT

92027-287

1
Out of stock

21

1

$3.94

In stock

22

RING-SNAP,18MM

92033-029

1

$7.79

In stock

23

RING-SNAP

92033-032

1

$3.94

In stock

24

RING-O,17.5X1.5

92055-022

1

$4.93

In stock
