1983 Kawasaki Prairie Brake Pedal Diagram

← All diagrams

Find the part on the Brake Pedal diagram for your 1983 Kawasaki Prairie, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

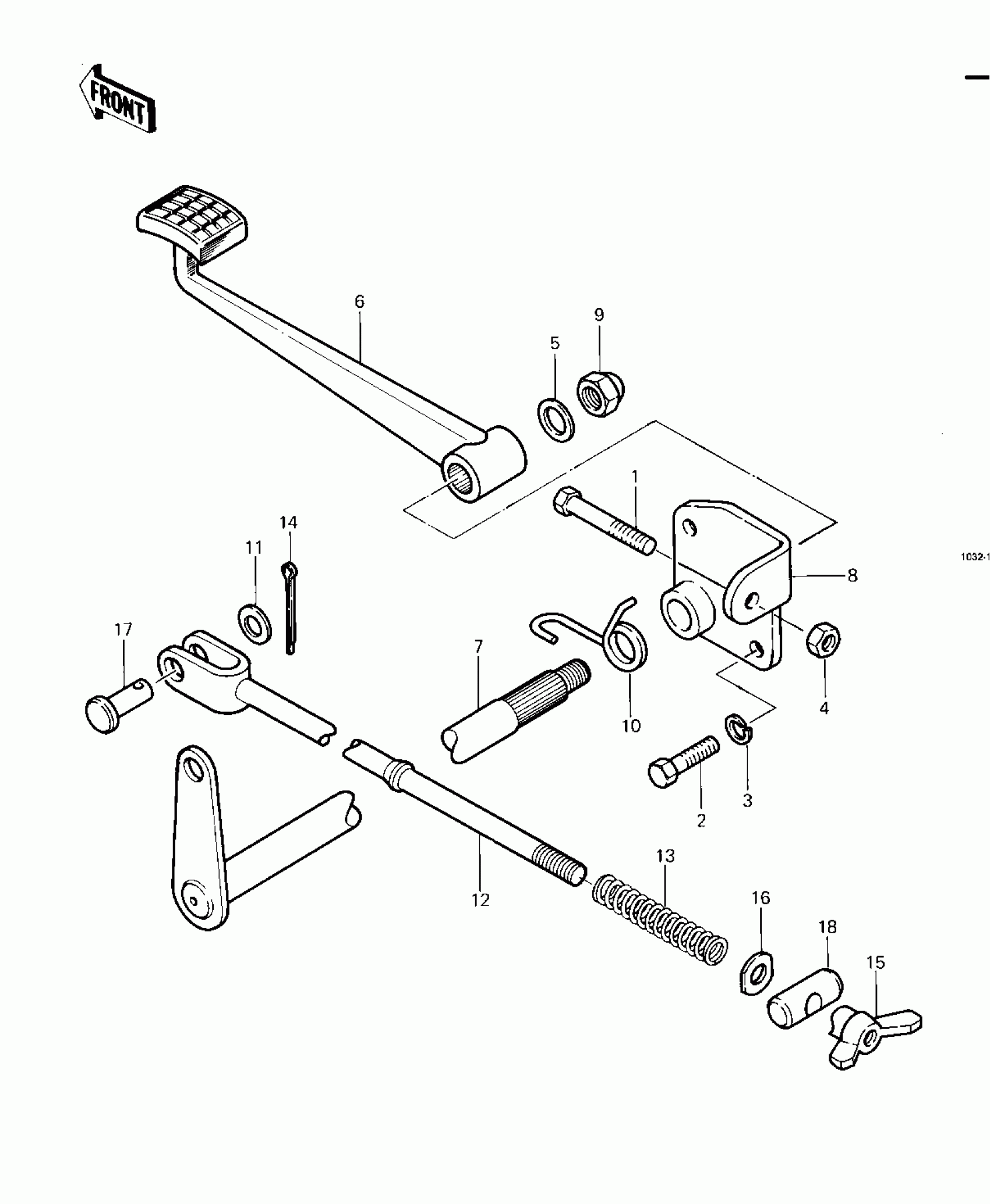

1983 Kawasaki Prairie Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT-UPSET

112G0625

1
Out of stock

2

BOLT-UPSET 6X14

112B0614

1
Out of stock

3

WASHER SPRING 6MM

461F0600

1
Out of stock

4

NUT 6MM

311B0600

1
Out of stock

5

WASHER-PLAIN,10MM

411B1000

1
Out of stock

6

LEVER-BRAKE,PEDAL

43001-4009

1

$66.92

In stock

7

HOLDER-BRAKE

43034-4001

1

$19.36

In stock

8

HOLDER-BRAKE

43034-4001

1

$19.36

In stock

9

NUT,CAP,10MM

92020-003

1

$5.16

In stock

10

SPRING,BRAKE PEDAL

92081-1337

1
Out of stock

11

1

$1.19

In stock

12

ROD-BRAKE

43011-4005

1
Out of stock

13

SPRING,BRAKE ROD

43012-001

1

$3.69

In stock

14

PIN COTTER 2.0X15

550D2015

1
Out of stock

15

NUT,WING,6MM

92015-4004

1

$5.81

In stock

16

WASHER, BRAKE ROD

92022-4003

1
Out of stock

17

PIN,6X17

92043-064

1

$3.72

In stock

18

PIN,BRAKE ROD

92043-065

1

$4.42

In stock
