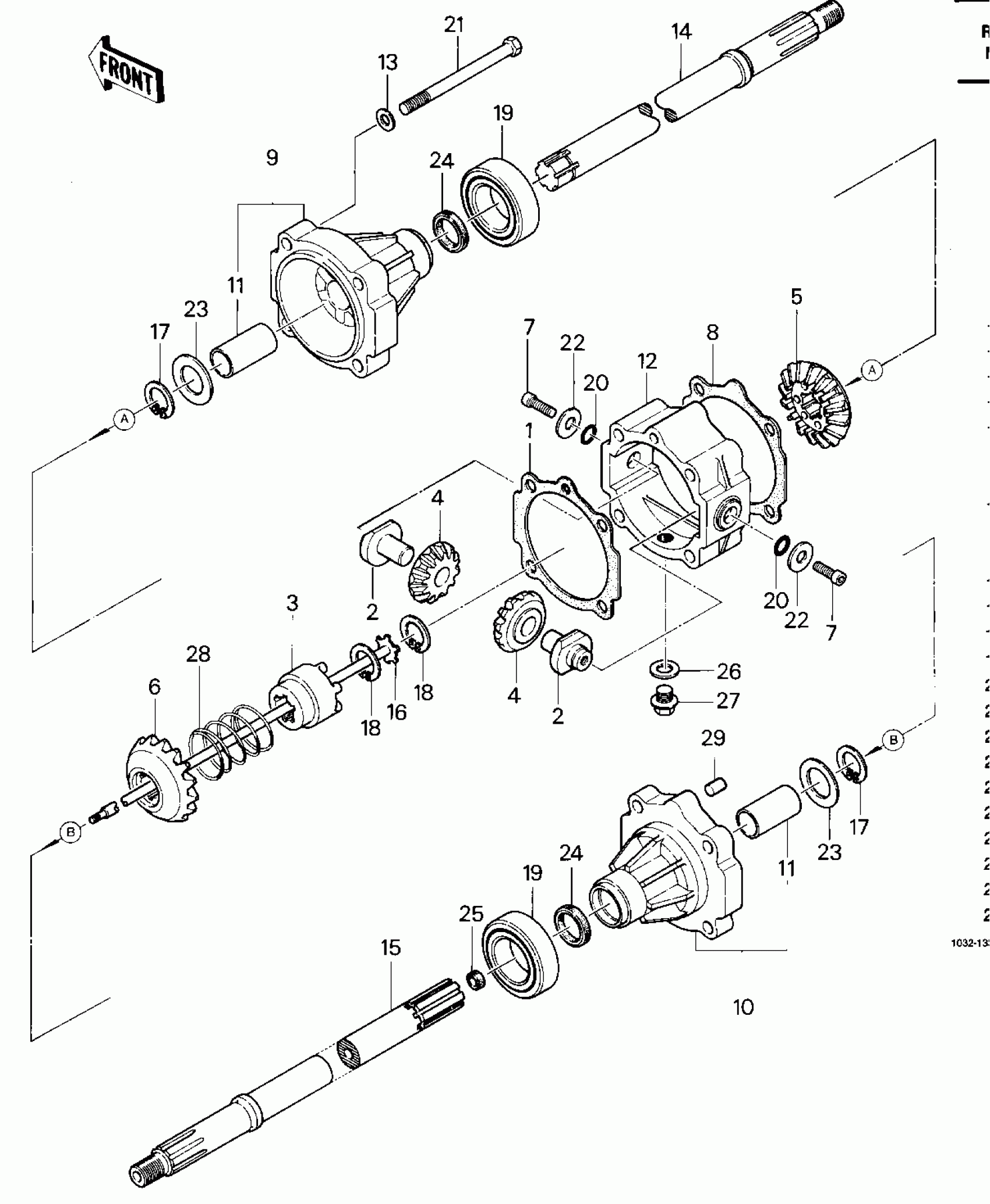

Find the part on the Rear Axle diagram for your 1983 Kawasaki Prairie, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Kawasaki Prairie Rear Axle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET,DIFFERENTIAL C

11009-1341

1
Out of stock

2

SHAFT

13107-1042

1
Out of stock

3

SHIFTER

13139-1004

1
Out of stock

4

GEAR,BEVEL,10T

16085-4005

1

$50.46

In stock

5

GEAR,BEVEL,16T

16085-4006

1

$195.25

In stock

6

GEAR,BEVEL,16T

16085-4007

1

$98.12

In stock

7

BOLT-SOCKET,8X20

120P0820

1
Out of stock

8

GASKET,DIFFERENTIAL C

11009-1345

1
Out of stock

9

1

$65.64

In stock

10

1

$87.76

In stock

11

1

$23.88

In stock

12

1

$115.41

In stock

13

WASHER,10.5X18X2.5

92022-1453

1

$5.05

In stock

14

AXLE,RR,RH

41068-1153

1
Out of stock

14

AXLE,RR,RH

41068-1153

1
Out of stock

15

AXLE,RR,LH

41068-1154

1

$167.56

In stock

15

AXLE,RR,LH

41068-1154

1

$167.56

In stock

16

ROD

46102-4006

1

$21.61

In stock

17

1

$3.97

In stock

18

1

$3.85

In stock

19

1

$62.59

In stock

20

O RING,12MM

670B2012

1

$2.58

In stock

21

BOLT,10X103

92001-1842

1
Out of stock

22

WASHER,8.5X23X5.5

92022-1452

1

$9.14

In stock

23

WASHER,22X40X2

92022-4029

1
Out of stock

24

SEAL-OIL,SC22325

92049-1048

1
Out of stock

25

SEAL-OIL

92050-075

1
Out of stock

26

WASHER,12X18X1.0

92022-1211

1

$3.66

In stock

27

1

$4.88

In stock

28

1

$3.31

In stock

29

PIN-DOWEL,10X20

551A1020

1

$3.31

In stock
