1983 Kawasaki Prairie Ignition Coil Diagram

← All diagrams

Find the part on the Ignition Coil diagram for your 1983 Kawasaki Prairie, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

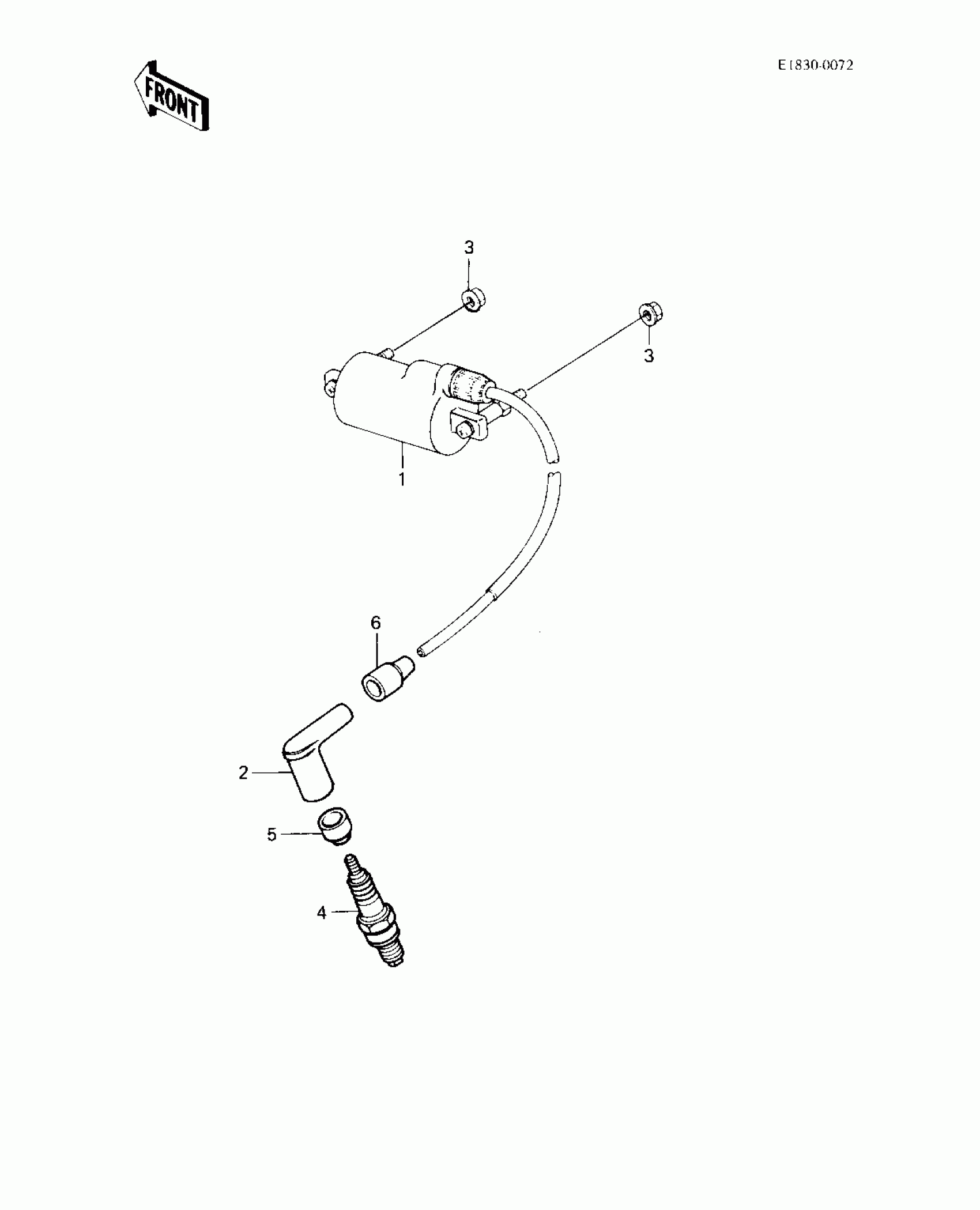

1983 Kawasaki Prairie Ignition Coil Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COIL-IGNITION

21121-1049

1

$149.89

In stock

2

CAP-SPARK PLUG,RTFM20

21130-1007

1
Out of stock

3

NUT,FLANGED,6MM

92015-1078

1
Out of stock

4

1

$2.92

In stock

4

1

$2.92

In stock

5

GROMMET,PLUG CAP

21131-004

1

$10.81

In stock

6

1

$3.39

In stock
