1983 Kawasaki Prairie Cables/meter Diagram

← All diagrams

Find the part on the Cables/meter diagram for your 1983 Kawasaki Prairie, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

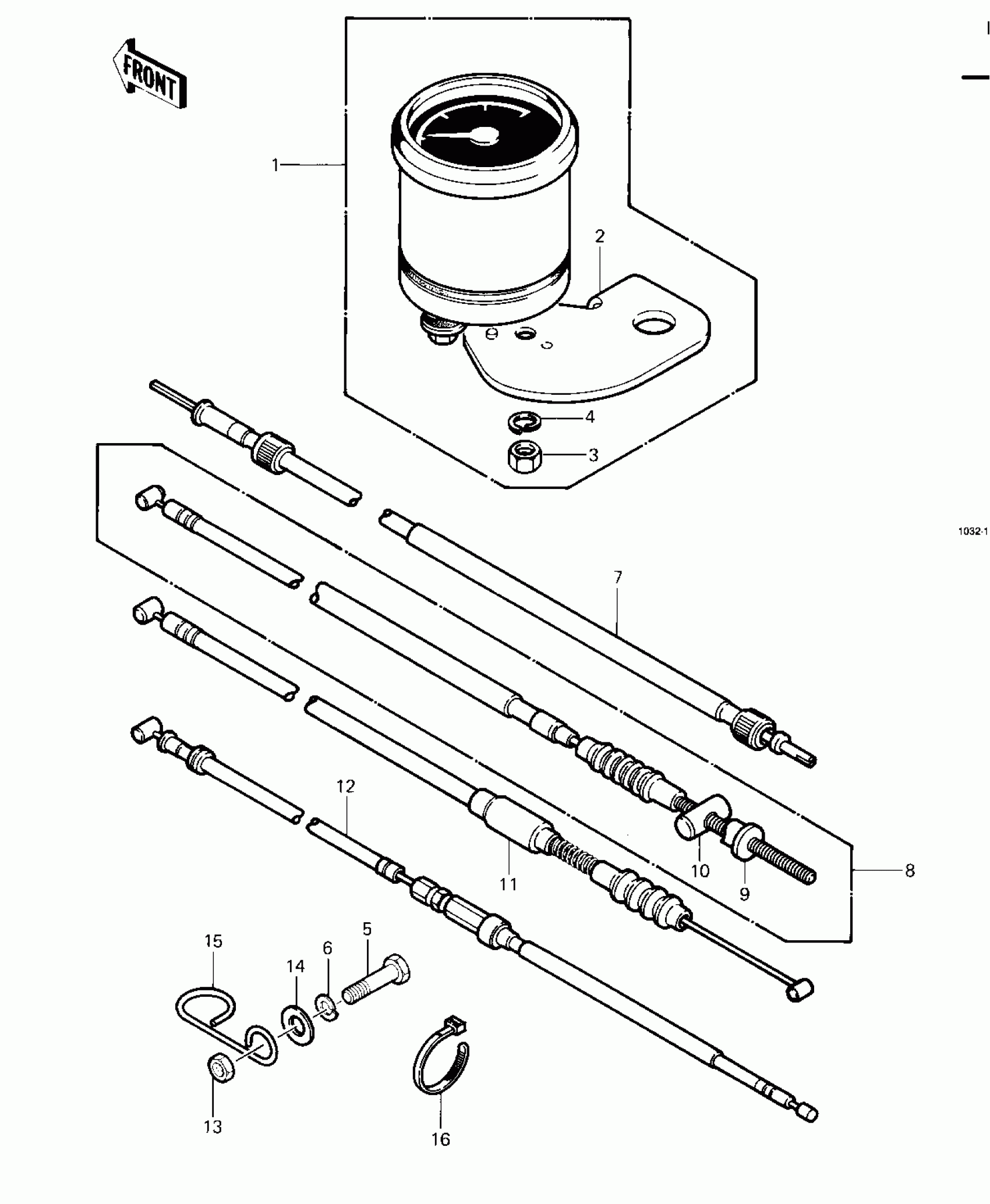

1983 Kawasaki Prairie Cables/meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

METER-ASSY

25001-4006

1

$174.55

In stock

1

METER-ASSY,KPH (Canada)

25001-4007

1
Out of stock

2

BRACKET-METER ASSY

11034-4136

1
Out of stock

3

NUT 6MM

311B0600

1
Out of stock

4

WASHER SPRING 6MM

461F0600

1
Out of stock

5

BOLT-UPSET

112G0618

1
Out of stock

6

WASHER SPRING 6MM

461F0600

1
Out of stock

7

CABLE,SPEEDOMETER

54001-4002

1
Out of stock

8

CABLE-BRAKE

54005-4004

1
Out of stock

9

NUT,CABLE ADJUSTER LOCK

92015-052

1
Out of stock

10

PIN,BRAKE CABLE

92043-082

1

$4.92

In stock

11

CABLE-CLUTCH

54011-4004

1
Out of stock

12

CABLE-THROTTLE

54012-4002

1
Out of stock

13

NUT,LOCK,6MM

92019-008

1

$3.36

In stock

14

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

15

CLAMP,CLUTCH CABLE

92037-1202

1
Out of stock

16

BAND

92072-3505

1
Out of stock
