1983 Kawasaki Prairie Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1983 Kawasaki Prairie, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

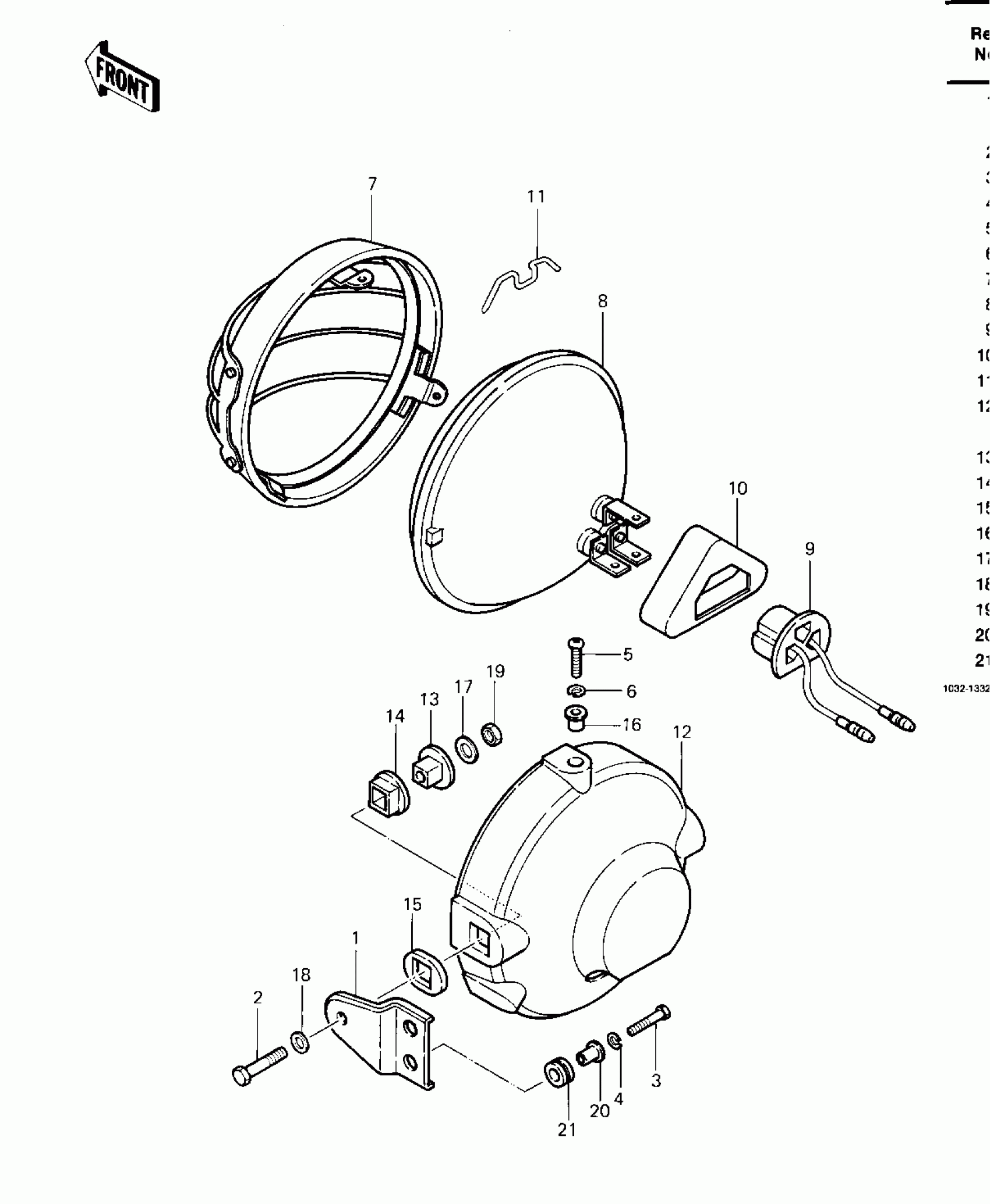

1983 Kawasaki Prairie Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET,HEADLAMP,EBNY

11034-4123-8G

1
Out of stock

1

BRACKET,HEADLAMP,RED

11034-4123-8R

1
Out of stock

2

BOLT-SMALL,8X32

114N0832

1
Out of stock

3

BOLT-UPSET,6X20

112G0620

1
Out of stock

4

WASHER SPRING 6MM

461F0600

1
Out of stock

5

SCREW-PAN-CROS

220B0512

1

$0.51

In stock

6

WASHER SPRING 5MM

461F0500

1
Out of stock

7

RIM-LAMP

23006-4003

1

$112.03

In stock

8

LENS-COMP

23007-4002

1

$65.42

In stock

9

SOCKET-ASSY

23008-1125

1

$14.14

In stock

10

1

$7.92

In stock

11

SPRING,HEAD LAMP LENS

92081-4025

1
Out of stock

12

BODY-HEADLAMP,EBONY

23005-4004-8G

1

$59.47

In stock

12

BODY-COMP HEADLAMP RD

23005-4004-8R

1

$33.54

In stock

13

COLLAR,L=15.6

92027-1105

1

$7.49

In stock

14

DAMPER,HEAD LAMP

92075-1077

1

$7.14

In stock

15

DAMPER,HEAD LAMP

92075-1078

1

$4.92

In stock

16

WASHER

23021-010

1

$3.43

In stock

17

WASHER PLAIN 6MM

411B0600

1
Out of stock

18

WASHER-PLAIN,8MM

411D0800

1

$2.49

In stock

19

NUT,LOCK,8MM

92015-1124

1
Out of stock

20

COLLAR

92027-1045

1

$4.37

In stock

21

DAMPER

92075-277

1

$2.20

In stock
