1983 Kawasaki Prairie Chassis Electrical Equipment Diagram

← All diagrams

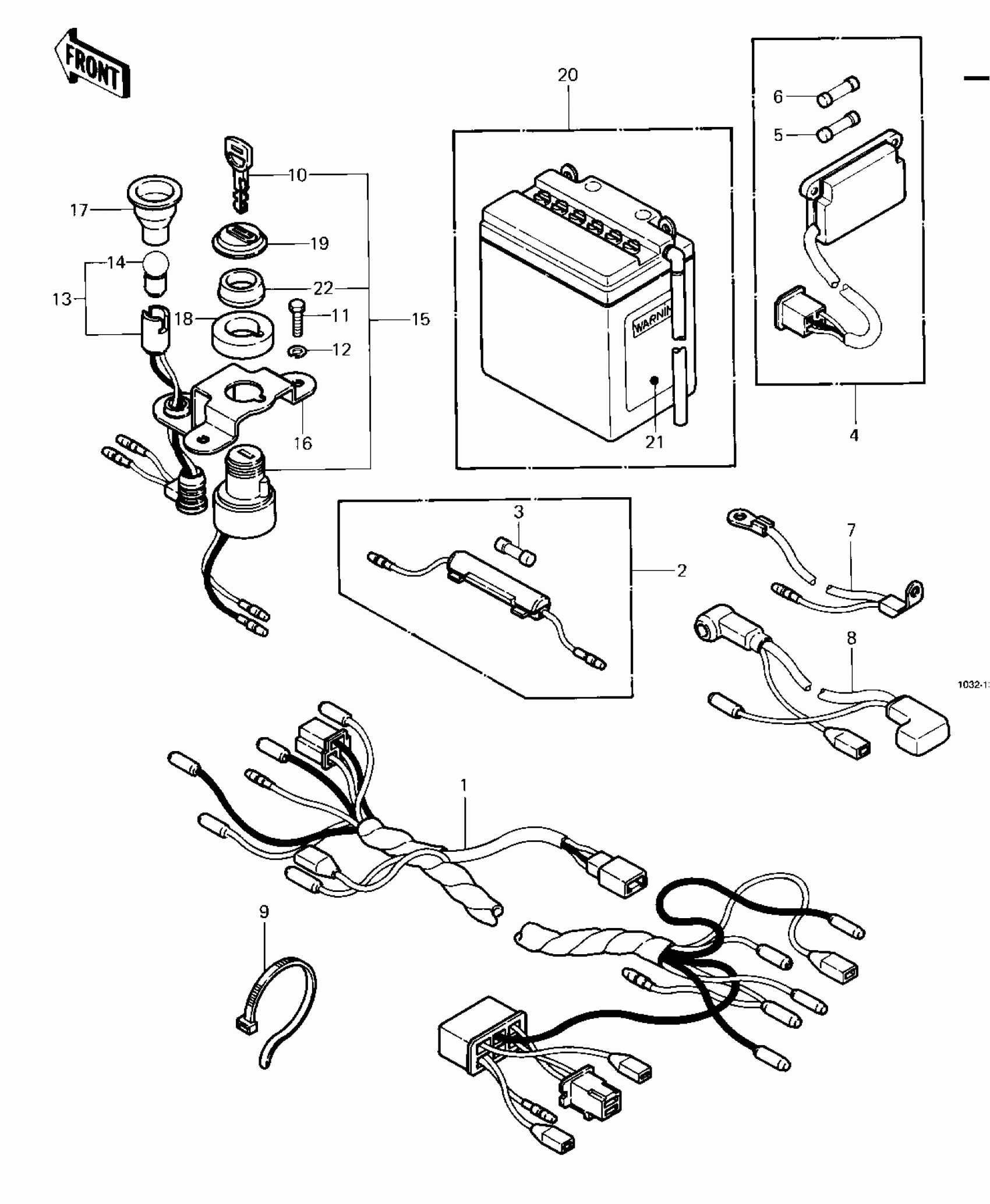

Find the part on the Chassis Electrical Equipment diagram for your 1983 Kawasaki Prairie, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Kawasaki Prairie Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS,MAIN

26001-4018

1
Out of stock

1

HARNESS,MAIN

26001-4026

1
Out of stock

2

FUSE ASSY

26004-013

1
Out of stock

3

FUSE,20A,L=25

26006-005

1

$4.02

In stock

4

FUSE-ASSY,ACCESSORY

26004-1016

1
Out of stock

5

FUSE,10A,L=25

26006-003

1

$3.74

In stock

6

FUSE,30A,L=25

26006-1005

1
Out of stock

7

1

$13.17

In stock

8

WIRE-LEAD,BATTERY(+)

26011-4007

1
Out of stock

9

BAND

92072-3505

1
Out of stock

10

KEY-LOCK,BLANK

27008-1103

1

$18.83

In stock

11

BOLT-UPSET 6X14

112B0614

1
Out of stock

12

WASHER SPRING 6MM

461F0600

1
Out of stock

13

LAMP-ASSY,IGNITION

23016-1025

1
Out of stock

14

BULB 12V 3W

92069-018

1

$3.87

In stock

15

SWITCH-ASSY-IGNITION

27005-1117

1
Out of stock

16

1

$9.31

In stock

17

TUBE,IGNITION SWITCH LAMP

92059-1559

1
Out of stock

18

DAMPER IGNITION SWITH

92075-4016

1
Out of stock

19

BOOT

49006-4004

1
Out of stock

20

FB BAT FB12A-A

26012-1004

1

$96.88

In stock

21

LABEL-WARNING,BATTERY

56040-1036

1
Out of stock

22

NUT,IGNITION SW LOCK

27007-004

1
Out of stock
