2002 Kawasaki Prairie 650 4X4 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2002 Kawasaki Prairie 650 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

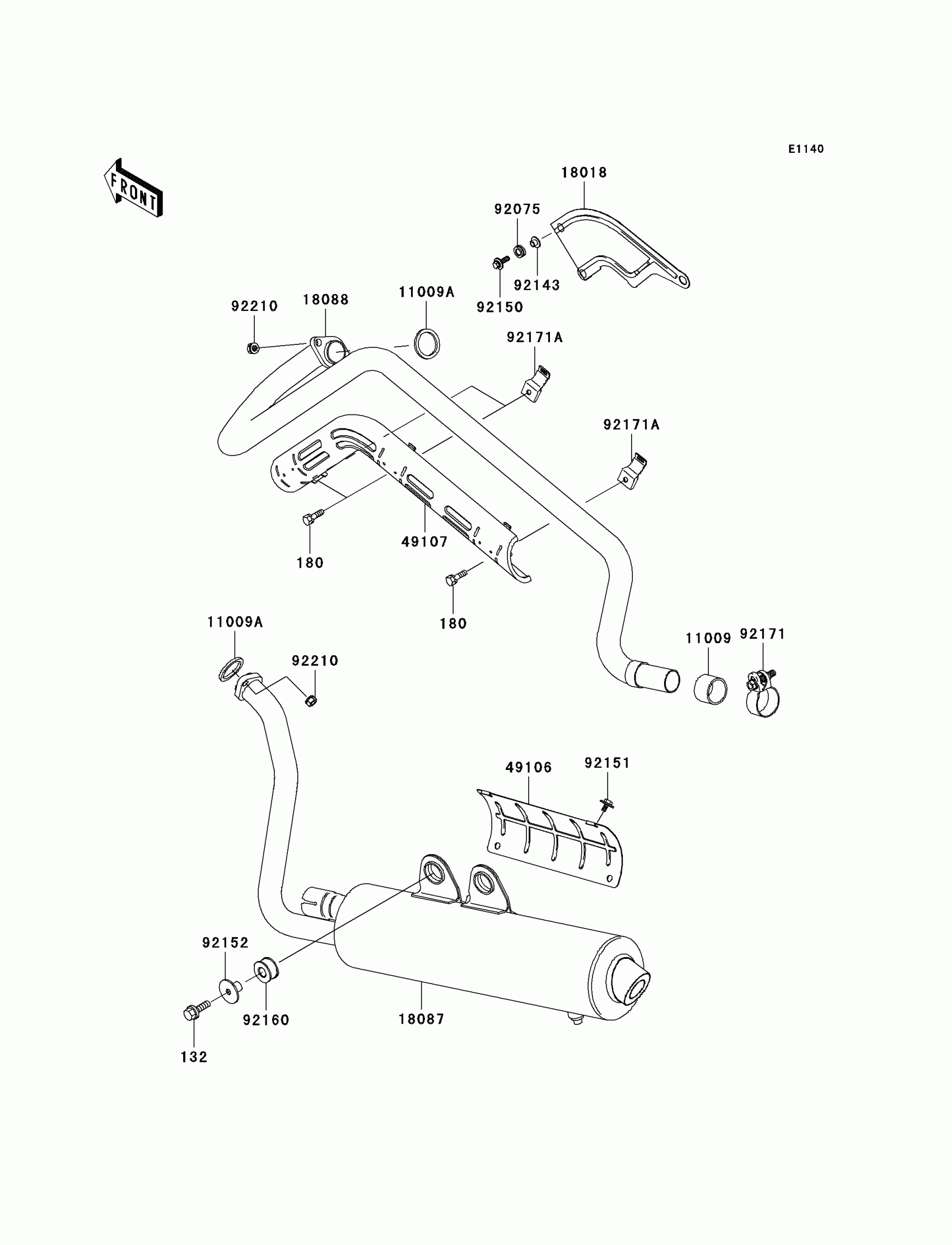

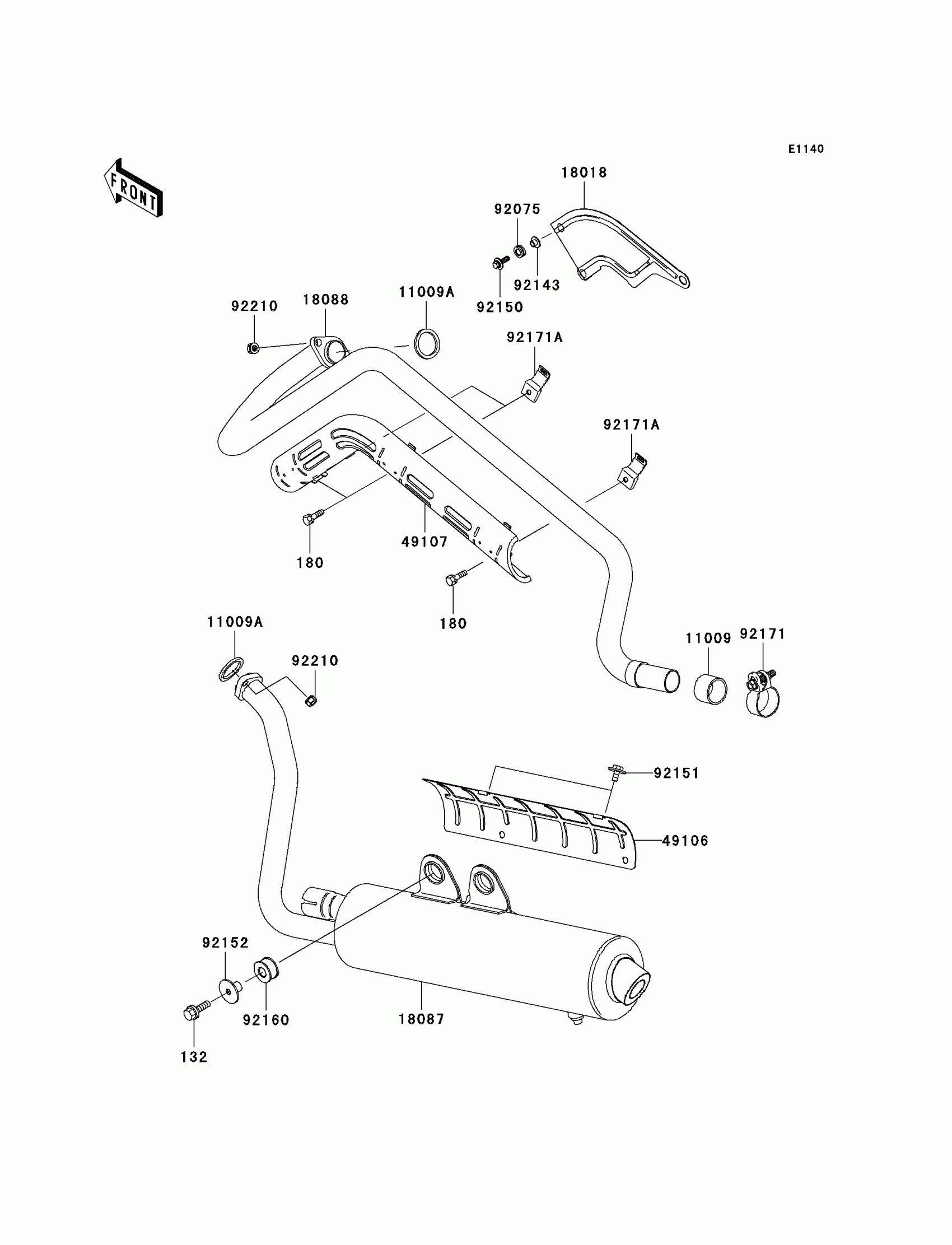

2002 Kawasaki Prairie 650 4X4 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132Y0830

1
Out of stock

180

BOLT-UPSET-WS,6X20

180Y0620

1
Out of stock

11009

GASKET,MUFFLER CONNECTING

11009-1865

1
Out of stock

11009A

GASKET,EXHAUST HOLDER

11009-1894

1
Out of stock

18018

PLATE-HEAT GUARD

18018-1134

1
Out of stock

18087

MUFFLER

18087-1148

1
Out of stock

18088

PIPE-EXHAUST

18088-1140

1
Out of stock

49106

COVER-MUFFLER

49106-1269

1
Out of stock

49107

COVER-EXHAUST PIPE

49107-1210

1
Out of stock

92075

DAMPER

92075-1947

1
Out of stock

92143

COLLAR

92143-1057

1
Out of stock

92150

BOLT,FLANGED,6X20

92150-1633

1
Out of stock

92151

BOLT,UPSET-WP,6X12

92151-1944

1
Out of stock

92152

COLLAR,MUFFLER

92152-1152

1
Out of stock

92160

DAMPER,MUFFLER

92160-1990

1
Out of stock

92171

CLAMP

92171-1330

1
Out of stock

92171A

CLAMP

92171-1357

1
Out of stock

92210

NUT,8MM

92210-1242

1
Out of stock
