2002 Kawasaki Prairie 650 4X4 Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2002 Kawasaki Prairie 650 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

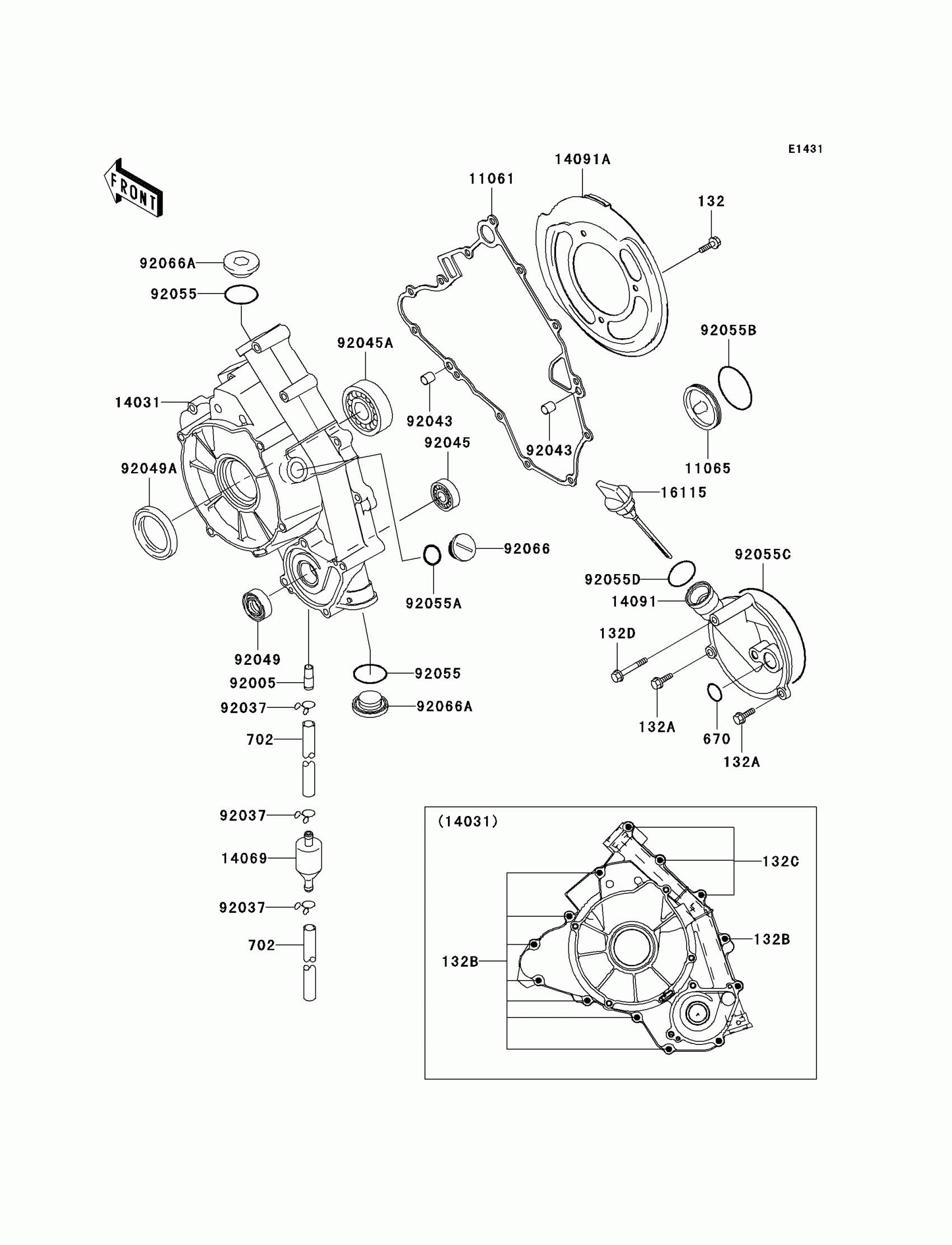

2002 Kawasaki Prairie 650 4X4 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X12

132Y0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X20

132Y0620

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X30

132Y0630

1
Out of stock

132C

BOLT-FLANGED-SMALL,6X55

132Y0655

1
Out of stock

132D

BOLT-FLANGED-SMALL

132Y0665

1
Out of stock

670

O RING,18MM

670D2018

1
Out of stock

702

TUBE-RUBBER,7X10X35

702A07035

1
Out of stock

11060

GASKET

11060-1963

1
Out of stock

11065

CAP

11065-1151

1
Out of stock

14031

COVER-GENERATOR

14031-1374

1
Out of stock

14069

BREATHER

14069-1051

1

$8.09

In stock

14091

COVER

14091-1194

1
Out of stock

14091A

COVER

14091-1365

1
Out of stock

16115

CAP-OIL FILLER

16115-1072

1
Out of stock

92005

FITTING

92005-1369

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92045

BEARING-BALL,6901

92045-1246

1
Out of stock

92045A

BEARING-BALL

92045-1403

1
Out of stock

92049

SEAL-OIL,SC 12X22X5

92049-1228

1
Out of stock

92049A

SEAL-OIL,HTC 28X45X7

92049-1576

1
Out of stock

92055

RING-O,25.7X2.4

92055-1136

1
Out of stock

92055A

RING-O,20X2

92055-1146

1
Out of stock

92055B

RING-O,44.7X2.4

92055-1279

1
Out of stock

92055C

RING-O,99.5X2.0

92055-1632

1
Out of stock

92055D

RING-O

92055-2064

1
Out of stock

92066

PLUG,25X8

92066-1161

1
Out of stock

92066A

PLUG,COVER

92066-1163

1
Out of stock
