2002 Kawasaki Prairie 650 4X4 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2002 Kawasaki Prairie 650 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

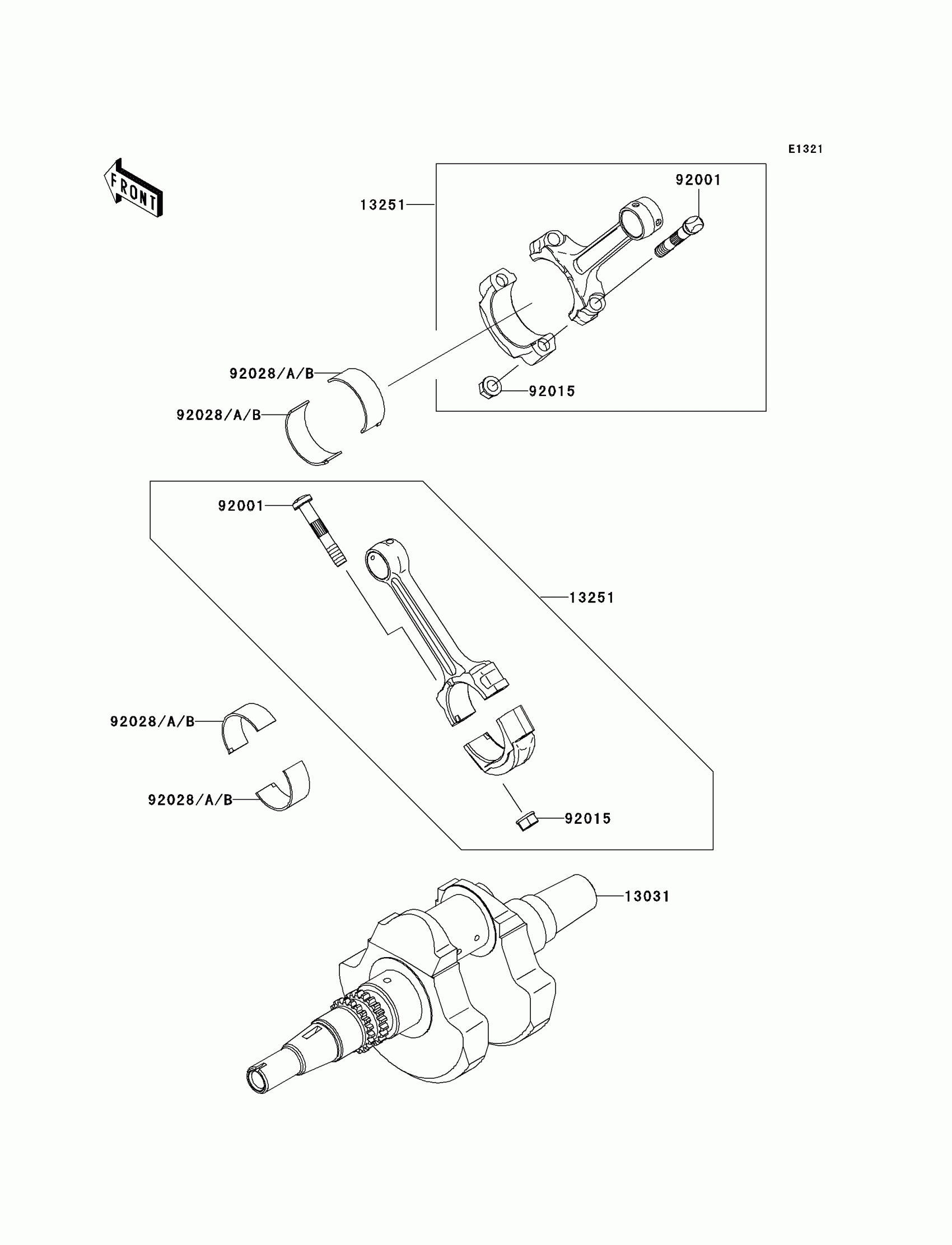

2002 Kawasaki Prairie 650 4X4 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-1473

1
Out of stock

13251

ROD-ASSY-CONNECTING

13251-1130

1
Out of stock

92001

BOLT,CONNECTING ROD

92001-1980

1

$8.37

In stock

92015

NUT,FLANGED,8MM

92015-1311

1
Out of stock

92028

—

$8.64

In stock

92028A

1

$8.64

In stock

92028B

—

$8.64

In stock
