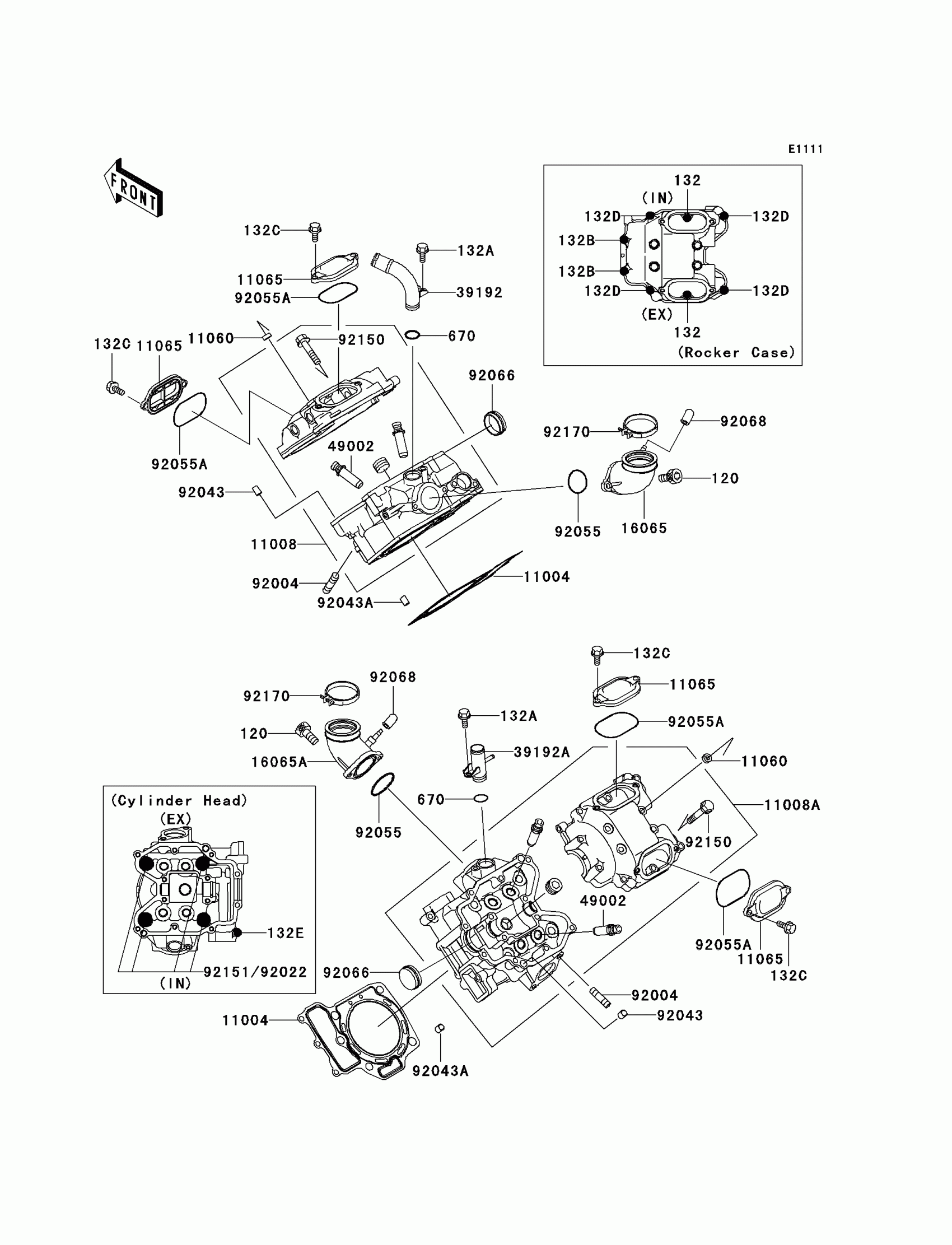

Kawasaki Prairie 650 4X4 Cylinder Head Diagram

#

Description
Price

120

BOLT-SOCKET,6X20

120Z0620

Unavailable

130

BOLT-FLANGED

130T0655

Unavailable

132

BOLT-FLANGED-SMALL,6X25

132H0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X12

132Y0612

Unavailable

132B

BOLT-FLANGED-SMALL,6X130

132Y06130

Unavailable

132C

BOLT-FLANGED-SMALL,6X20

132Y0620

Unavailable

132D

BOLT-FLANGED-SMALL,6X30

132Y0630

Unavailable

132E

BOLT-FLANGED-SMALL

132Y0695

Unavailable

670

O RING,16MM

670B2016

$1.04

11004

GASKET-HEAD

11004-1373

Unavailable

11008

HEAD-COMP-CYLINDER,FR

11008-1381

Unavailable

11008A

HEAD-COMP-CYLINDER,RR

11008-1386

Unavailable

11060

GASKET,6.2X12X0.3

11060-1994

$1.71

11065

CAP,ROCKER CASE

11065-1152

$23.41

16065

HOLDER-CARBURETOR,FR

16065-1370

$40.14

16065A

HOLDER-CARBURETOR,RR

16065-1371

$40.14

39192

PIPE-WATER

39192-1132

$17.01

39192A

PIPE-WATER

39192-1133

$27.23

49002

GUIDE-VALVE

49002-1097

Unavailable

92004

STUD,8X22

92004-1217

$4.27

92022

WASHER,11.5X20.5X1.6

92022-1720

$3.29

92043

PIN,6.2X8X14

92043-1263

$0.46

92043A

PIN,10.1X12X14

92043-4009

$4.67

92055

RING-O,38MM

92055-1295

$12.40

92055A

RING-O,55.6X2.4

92055-1644

$5.88

92066

PLUG

92066-1289

$10.91

92068

PLUG,12X25

92068-006

$3.25

92151

BOLT,FLANGED,10X150

92151-1917

$16.19

92170

CLAMP

92170-1722

$6.89
