2005 Kawasaki Prairie 360 4X4 Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 2005 Kawasaki Prairie 360 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

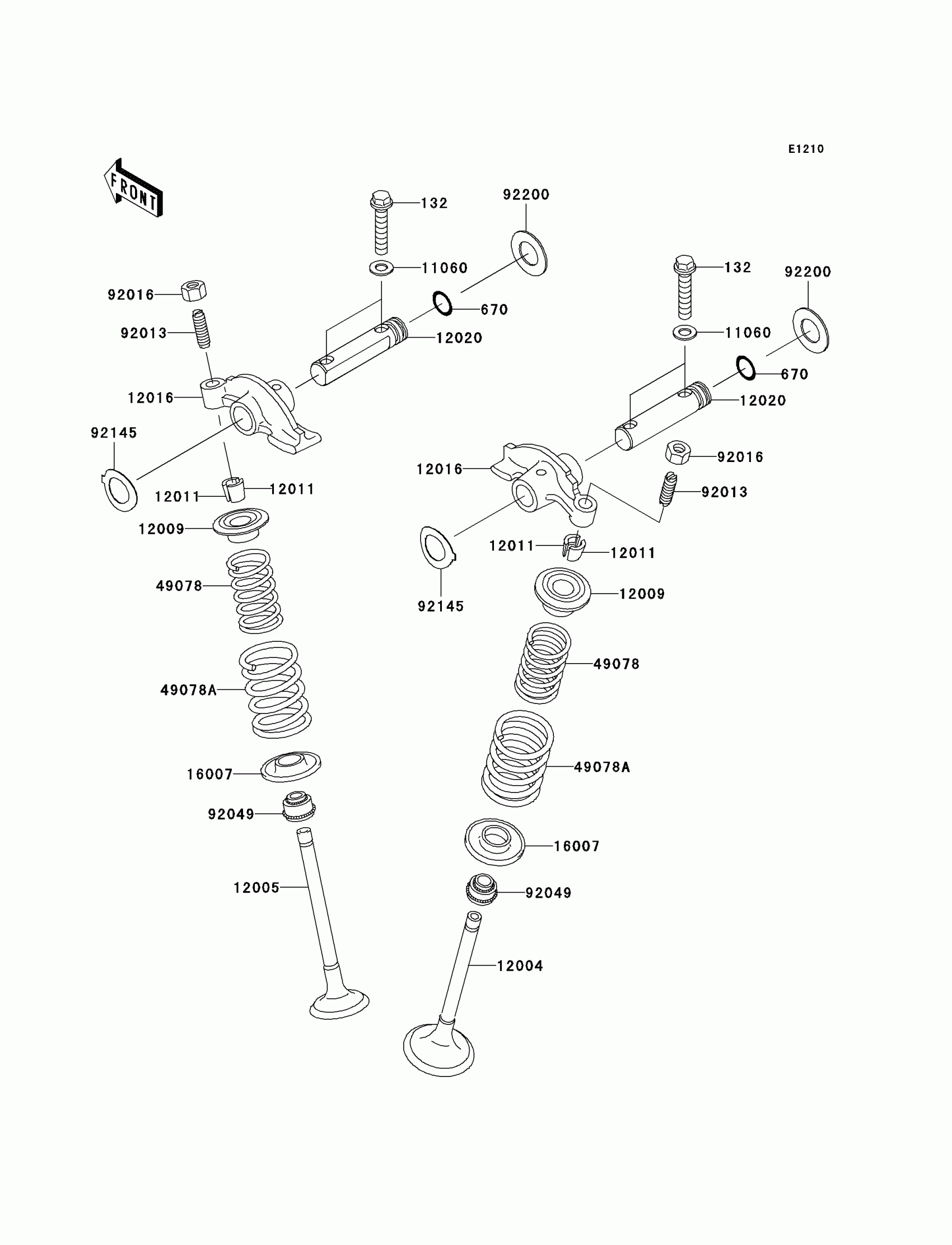

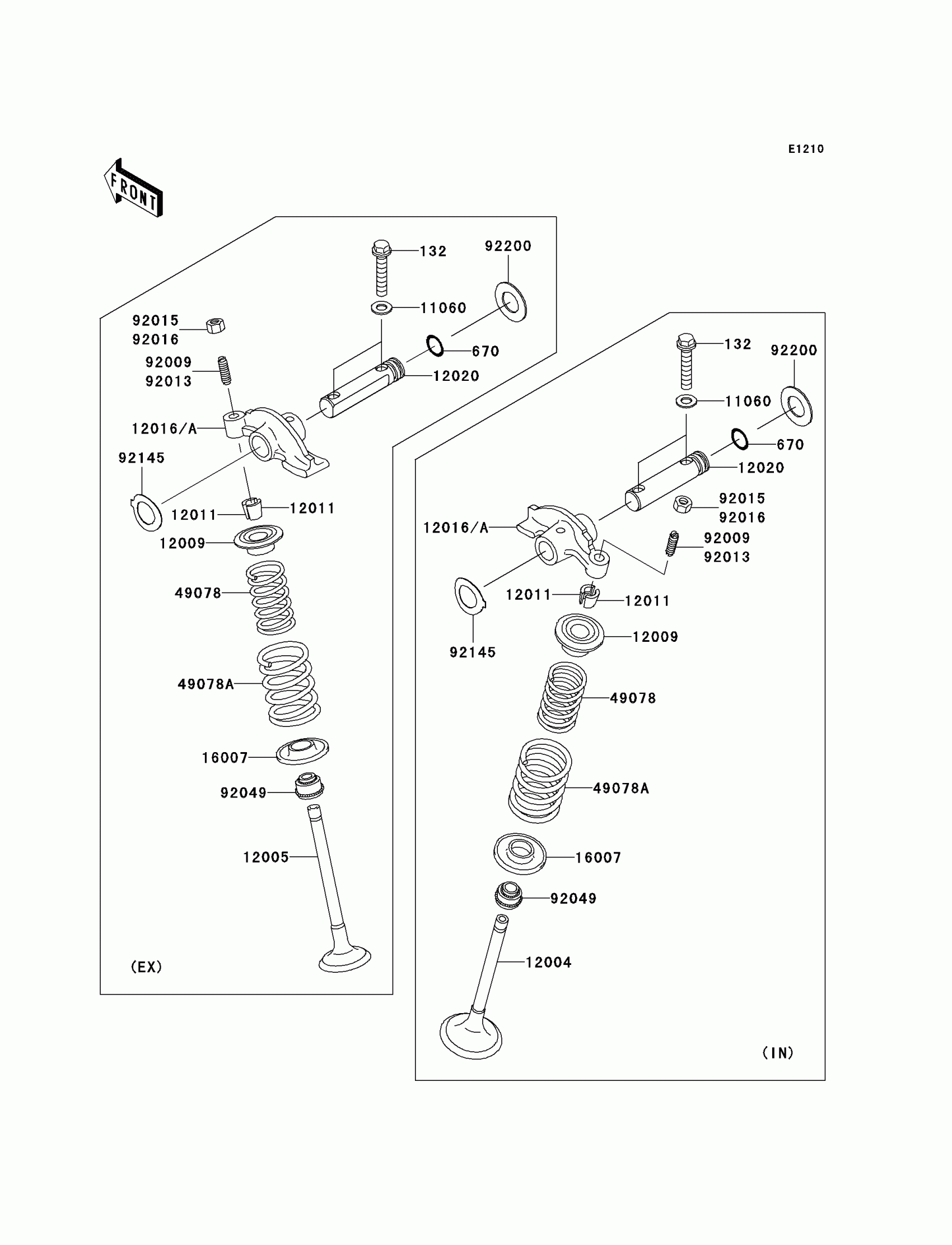

2005 Kawasaki Prairie 360 4X4 Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X30

132Y0630

1
Out of stock

670

O RING,10MM

670D1510

1
Out of stock

11060

GASKET,6.2X12X0.3

11060-1994

1
Out of stock

12004

VALVE-INTAKE

12004-1155

1
Out of stock

12005

VALVE-EXHAUST

12005-1326

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-005

1
Out of stock

12011

COLLET,RETAINER

12011-004

1
Out of stock

12016

ARM-ROCKER

12016-1138

1
Out of stock

12020

SHAFT-ROCKER

12020-1085

1
Out of stock

16007

SEAT-SPRING,VALVE

16007-1024

1
Out of stock

49078

SPRING-ENGINE VALVE,INNER

49078-1209

1
Out of stock

49078A

SPRING-ENGINE VALVE,OUTER

49078-1210

1
Out of stock

92013

SCREW,6MM

92013-009

1
Out of stock

92016

NUT,6MM

92016-061

1
Out of stock

92049

SEAL-OIL,RV37129.5

92049-016

1
Out of stock

92145

SPRING,ROCKER SHAFT

92145-1532

1
Out of stock

92200

WASHER,13.4X25X1.0

92200-0045

1
Out of stock
