2005 Kawasaki Prairie 360 4X4 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2005 Kawasaki Prairie 360 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

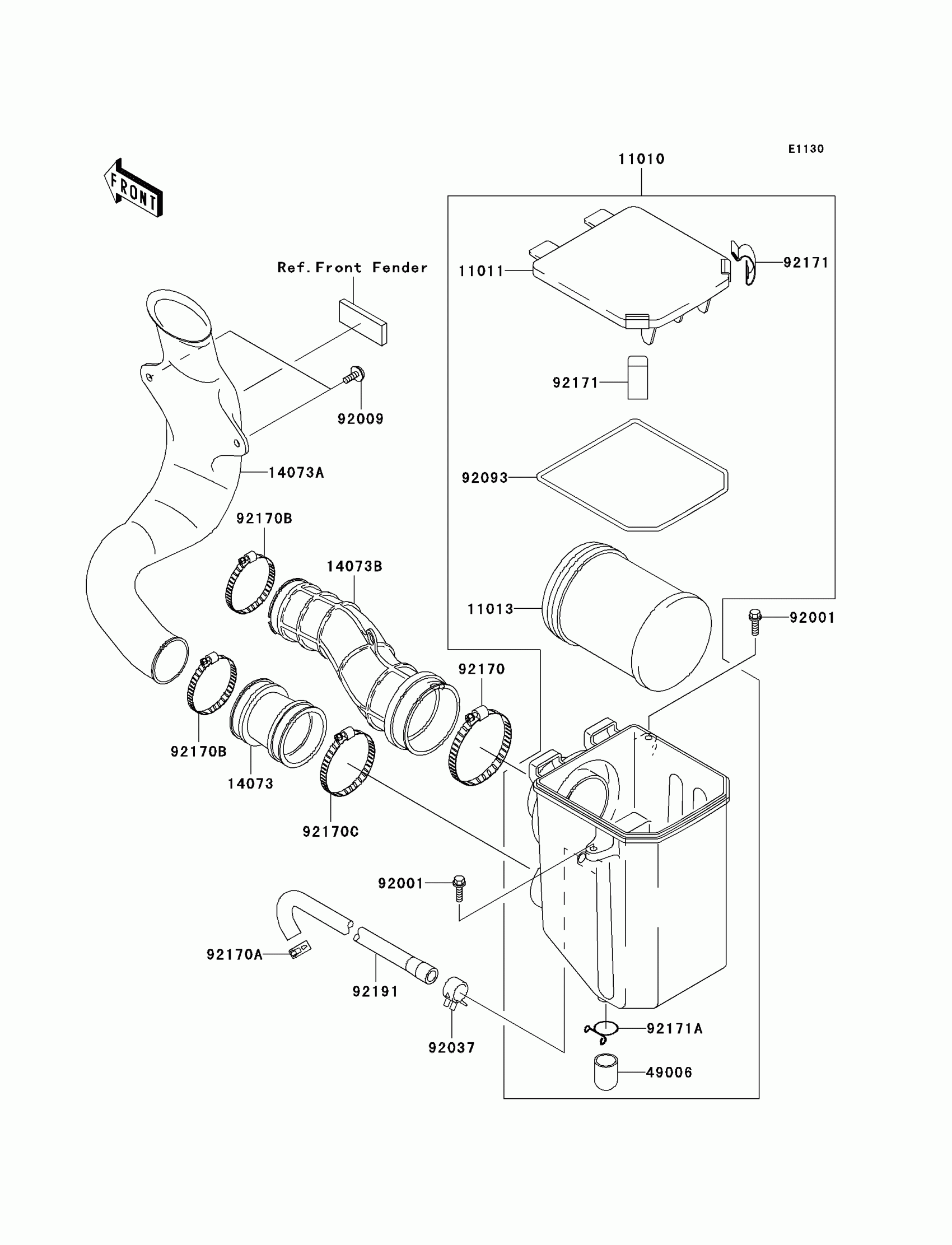

2005 Kawasaki Prairie 360 4X4 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-1766

1

$177.16

In stock

11011

CASE-AIR FILTER,UPP

11011-1639

1

$22.36

In stock

11013

ELEMENT-AIR FILTER

11013-1292

1

$8.32

In stock

14073

DUCT,A/C-INLET

14073-1802

1

$5.73

In stock

14073A

DUCT,INLET

14073-1803

1

$29.54

In stock

14073B

DUCT,A/C-CARBURETOR

14073-1823

1

$33.10

In stock

49006

BOOT

49006-1359

1

$5.46

In stock

92001

BOLT,6X20

92001-1460

1

$3.12

In stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92037

CLAMP

92037-1678

1

$9.80

In stock

92093

1

$4.50

In stock

92170

CLAMP

92170-1307

1

$18.51

In stock

92170A

CLAMP

92170-1491

1

$5.93

In stock

92170B

CLAMP

92170-1674

1

$9.32

In stock

92170C

CLAMP

92170-1764

1

$9.09

In stock

92171

1

$4.66

In stock

92171A

CLAMP

92171-1427

1

$5.19

In stock

92191

TUBE,AIR CLEANER

92191-1644

1
Out of stock
