2005 Kawasaki Prairie 360 4X4 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2005 Kawasaki Prairie 360 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

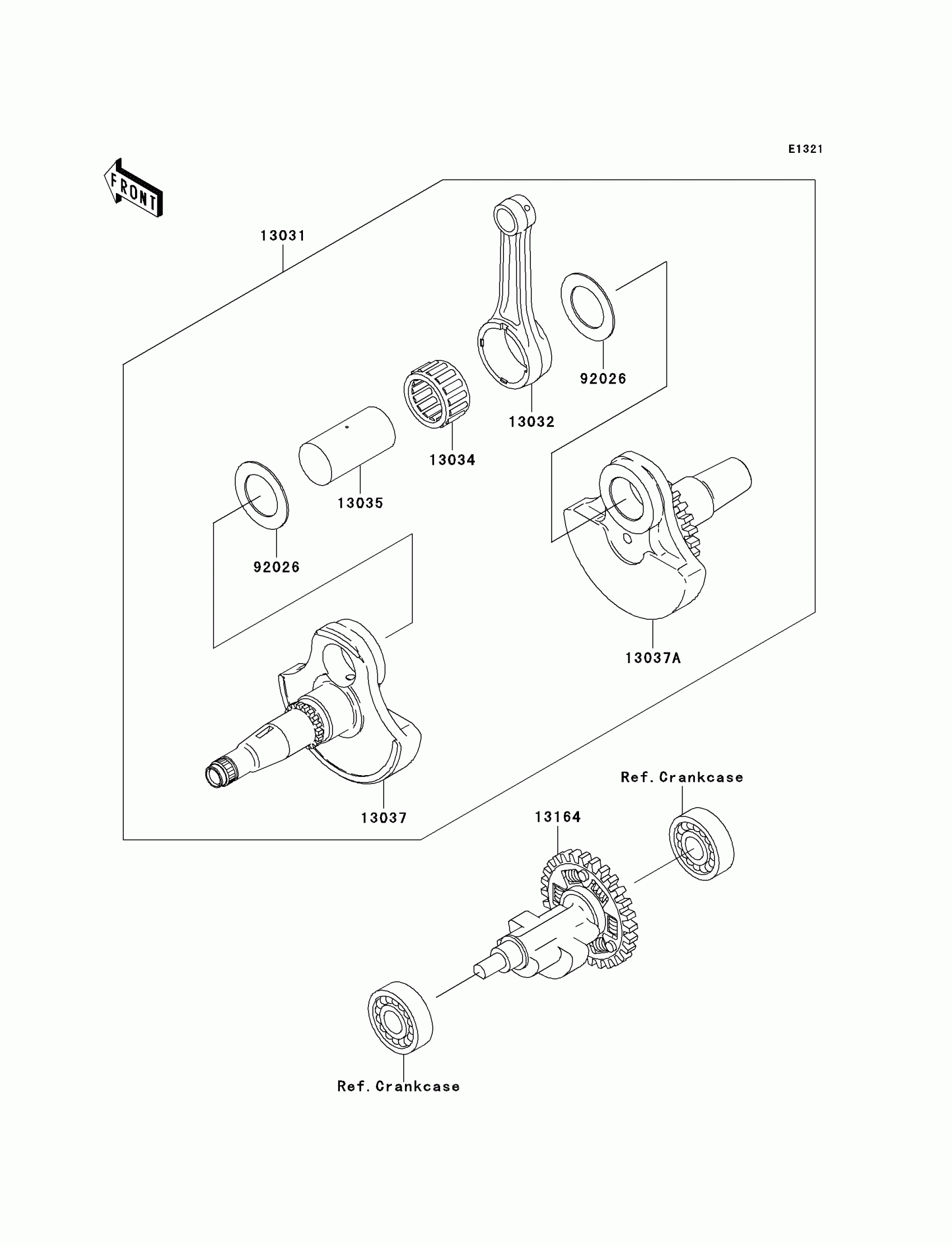

2005 Kawasaki Prairie 360 4X4 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-1489

1
Out of stock

13032

ROD-CONNECTING,NG

13032-1276

1
Out of stock

13034

BEARING-BIG END,B4

13034-1110

1
Out of stock

13035

PIN-CRANK,GREEN

13035-1091

1
Out of stock

13037

CRANKSHAFT,LH

13037-1644

1
Out of stock

13037A

CRANKSHAFT,RH

13037-1667

1
Out of stock

13164

BALANCER-COMP

13164-1013

1
Out of stock

92026

SPACER,34X54X1.5

92026-1595

1
Out of stock
