2005 Kawasaki Prairie 360 4X4 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2005 Kawasaki Prairie 360 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

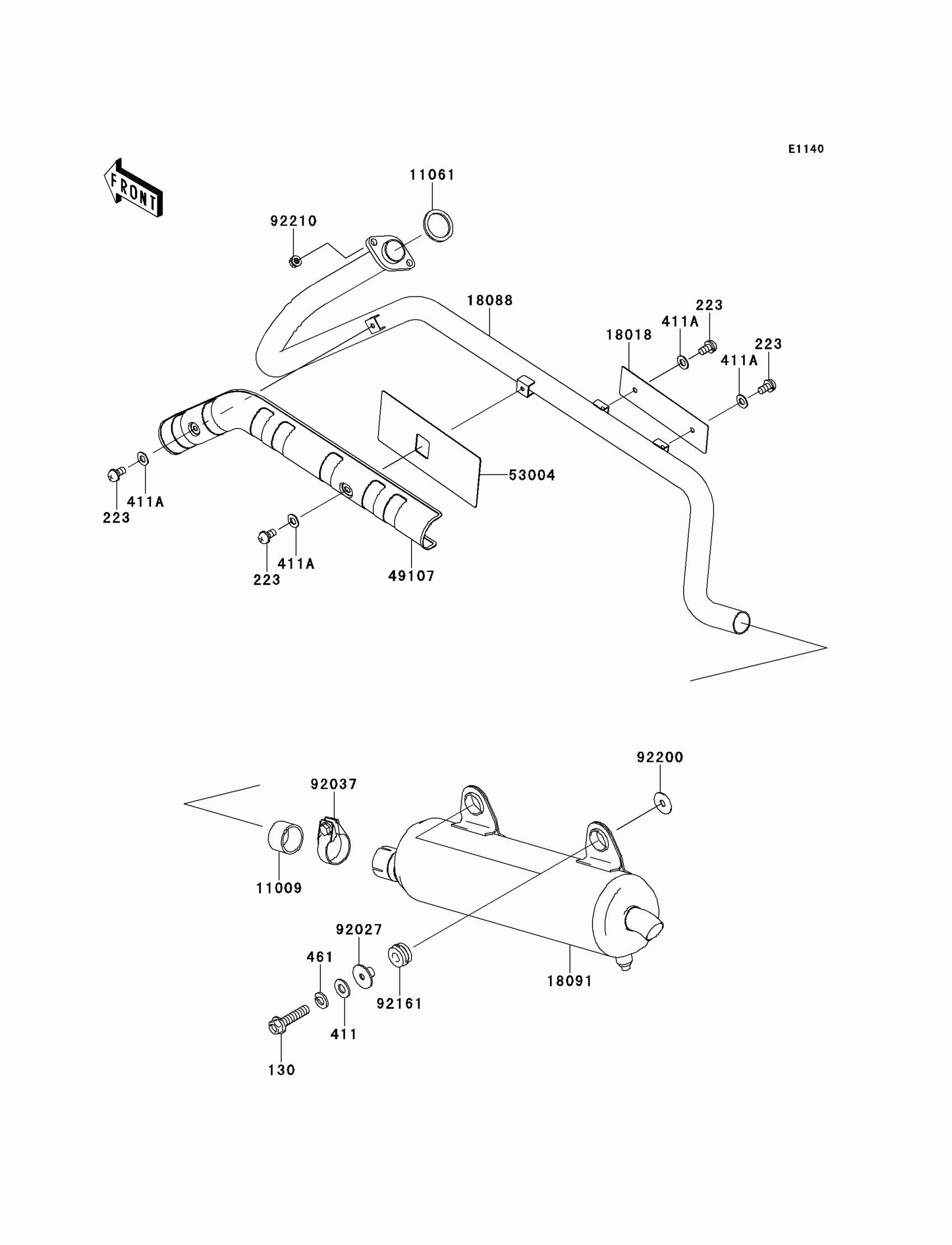

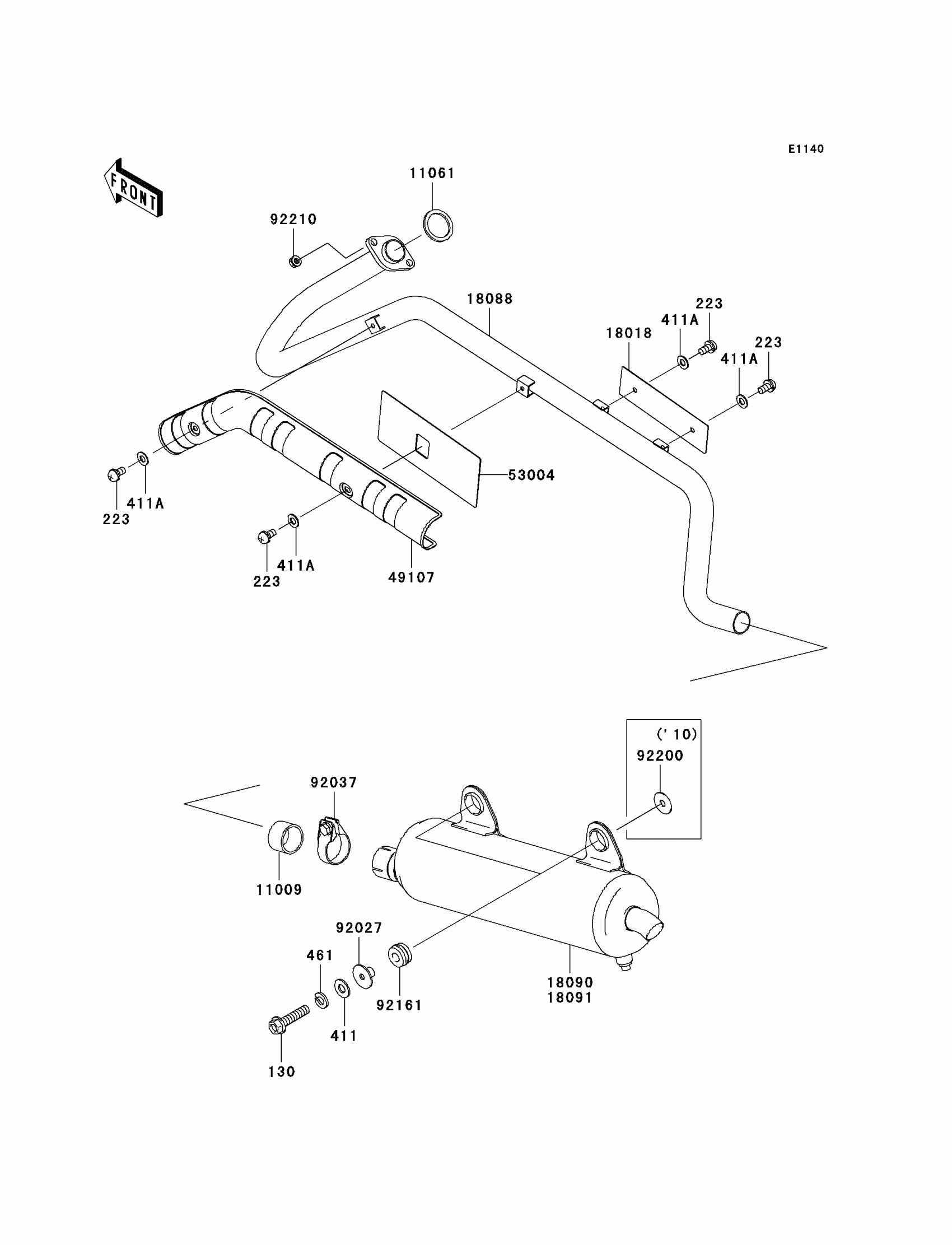

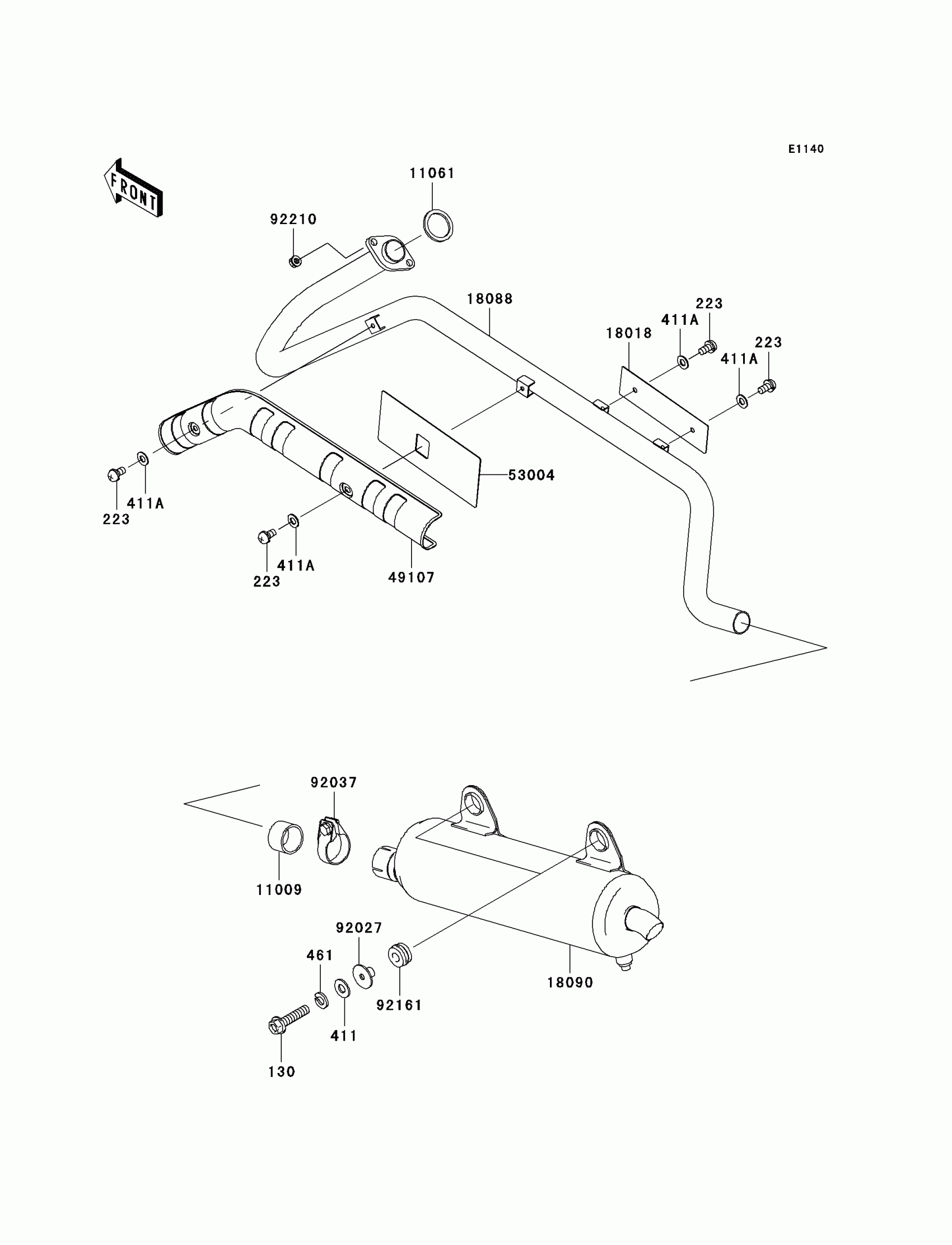

2005 Kawasaki Prairie 360 4X4 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X35

130Z0835

1
Out of stock

223

SCREW-PAN-WS-CROS,6X12

223C0612

1
Out of stock

411

WASHER PLAIN 8MM

411B0800

1
Out of stock

411A

WASHER PLAIN

411F0600

1
Out of stock

461

WASHER SPRING 8MM

461F0800

1
Out of stock

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1667

1
Out of stock

11061

GASKET,EXHAUST

11061-1053

1
Out of stock

18018

PLATE-HEAT GUARD,EXHAUST PIPE

18018-1135

1
Out of stock

18088

PIPE-EXHAUST

18088-1215

1
Out of stock

18090

BODY-COMP-MUFFLER

18090-1954

1
Out of stock

49107

COVER-EXHAUST PIPE

49107-1222

1
Out of stock

53004

MAT

53004-1181

1

$24.37

In stock

92027

COLLAR,MUFFLER

92027-1981

1
Out of stock

92037

CLAMP,42MM

92037-1349

1
Out of stock

92161

DAMPER,MUFFLER

92161-1292

1
Out of stock

92210

NUT,8MM

92210-1242

1
Out of stock
