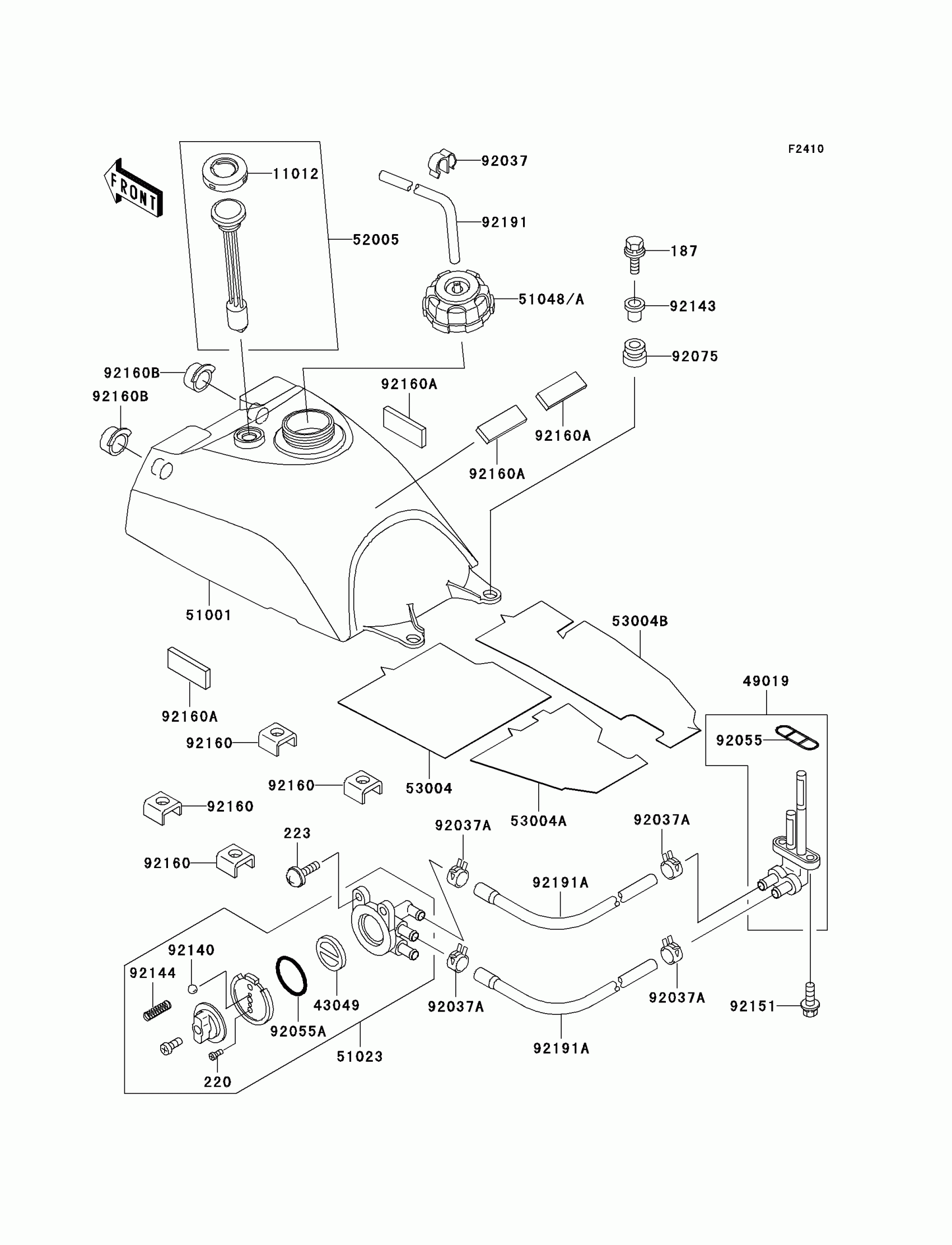

Find the part on the Fuel Tank diagram for your 2002 Kawasaki Prairie 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki Prairie 300 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

187

BOLT-UPSET-WSP,6X35

187G0635

1
Out of stock

220

SCREW-PAN-CROS,3X8

220B0308

1
Out of stock

223

SCREW-PAN-WS-CROS

223C0610

1
Out of stock

11012

CAP,FUEL GAUGE

11012-1627

1
Out of stock

43049

PACKING,TAP VALVE

43049-1066

1
Out of stock

49019

FILTER-FUEL

49019-1084

1
Out of stock

51001

TANK-COMP-FUEL

51001-1542

1
Out of stock

51023

TAP-ASSY,FUEL

51023-1247

1
Out of stock

51048A

CAP-ASSY-TANK,FUEL

51048-1133

1
Out of stock

52005

GAUGE,FUEL

52005-1131

1
Out of stock

53004

MAT,FUEL TANK,LH

53004-1125

1
Out of stock

53004A

MAT,FUEL TANK,CNT,RR

53004-1126

1
Out of stock

53004B

MAT,FUEL TANK,RH

53004-1127

1
Out of stock

92037

CLAMP

92037-1458

1
Out of stock

92037A

CLAMP,TUBE

92037-1505

1
Out of stock

92055

RING-O,FUEL TAP PACKING

92055-1112

1
Out of stock

92055A

RING-O,TAP LEVER

92055-1419

1
Out of stock

92075

DAMPER

92075-1787

1
Out of stock

92140

BALL,STAINLESS,5/32"

92140-1051

1
Out of stock

92143

COLLAR,L=19.6

92143-1100

1
Out of stock

92144

SPRING,FUEL TAP KNOB

92144-1212

1
Out of stock

92151

BOLT,6X14

92151-1198

1
Out of stock

92160

DAMPER

92160-1773

1
Out of stock

92160A

DAMPER

92160-1834

1
Out of stock

92160B

DAMPER

92160-1909

1
Out of stock

92191

TUBE,5X9.4X450

92191-1107

1
Out of stock

92191A

TUBE

92191-1247

1
Out of stock
