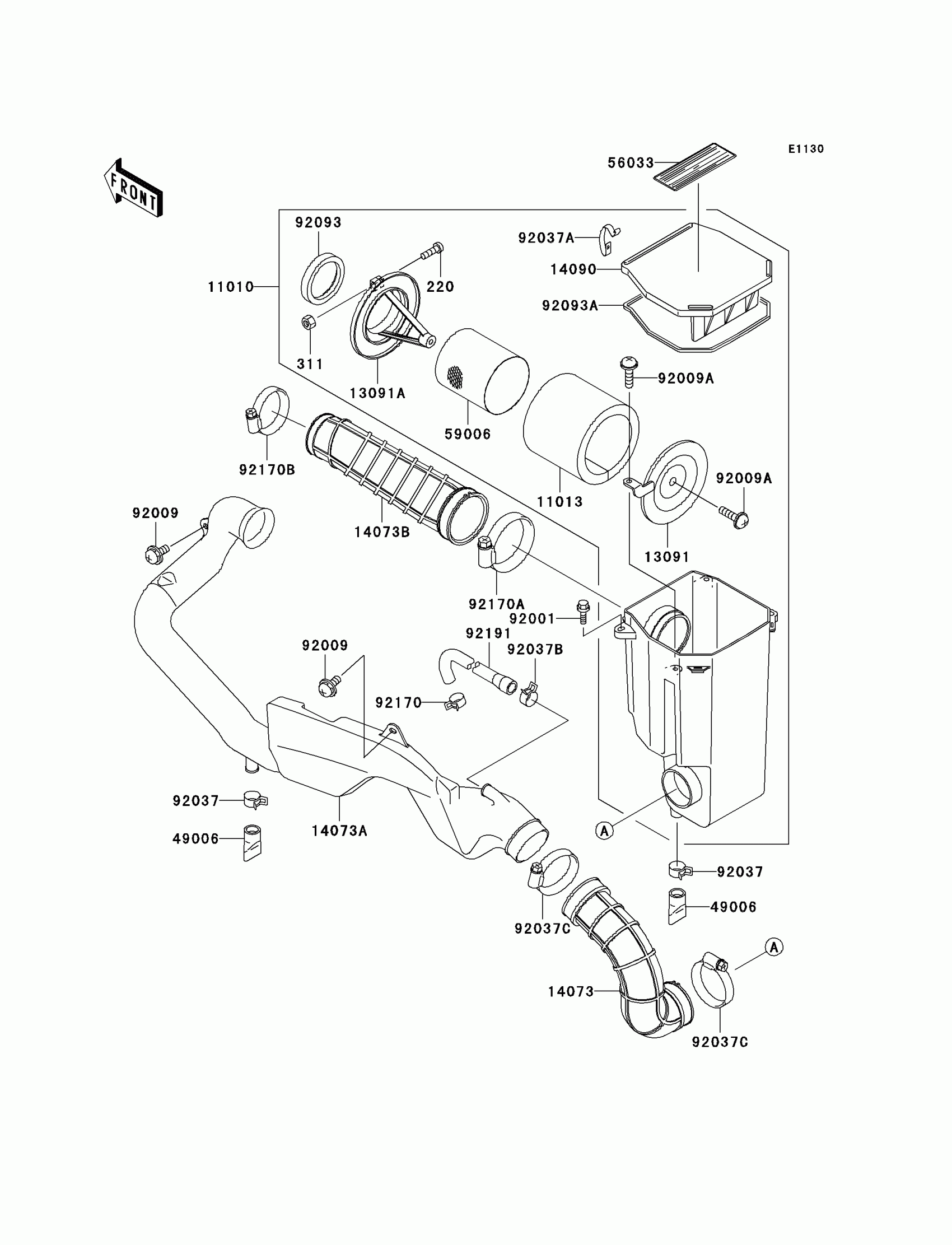

Kawasaki Prairie 300 Air Cleaner Diagram

#

Description
Price

220

SCREW PAN HEAD 5X16

220B0516

$1.49

311

NUT-HEX

311B0500

$0.47

11010

FILTER-ASSY-AIR

11010-1681

$330.40

11013

ELEMENT-AIR FILTER

11013-1255

$10.89

13091

HOLDER,ELEMENT

13091-1488

$16.08

13091A

HOLDER,AIR FILTER ELEMENT

13091-1565

$14.06

14073

DUCT

14073-1654

$64.59

14073A

DUCT

14073-1682

$33.19

14073B

DUCT

14073-1735

Unavailable

14090

COVER,AIR FILTER

14090-1663

$38.95

49006

BOOT

49006-1292

$5.93

56033

LABEL-MANUAL,MAINTENANCE

56033-1079

$2.20

59006

ARRESTER-FLAME

59006-1052

$33.70

92001

BOLT,6X20

92001-1460

$2.99

92009

SCREW,6X16

92009-1276

$4.25

92009A

SCREW,6X16

92009-1890

$1.88

92037

CLAMP,HOSE CLIP

92037-1460

$8.23

92037A

CLAMP,AIR FILTER

92037-1783

$6.71

92037B

CLAMP

92037-1860

Unavailable

92037C

CLAMP

92037-3738

$5.47

92093

SEAL,DUST

92093-1322

$7.48

92093A

SEAL,FILTER CASE

92093-1404

$6.31

92170

CLAMP

92170-1491

$5.69

92170A

CLAMP

92170-1679

$5.95

92170B

CLAMP

92170-1764

$8.62

92191

TUBE

92191-1343

$11.34
