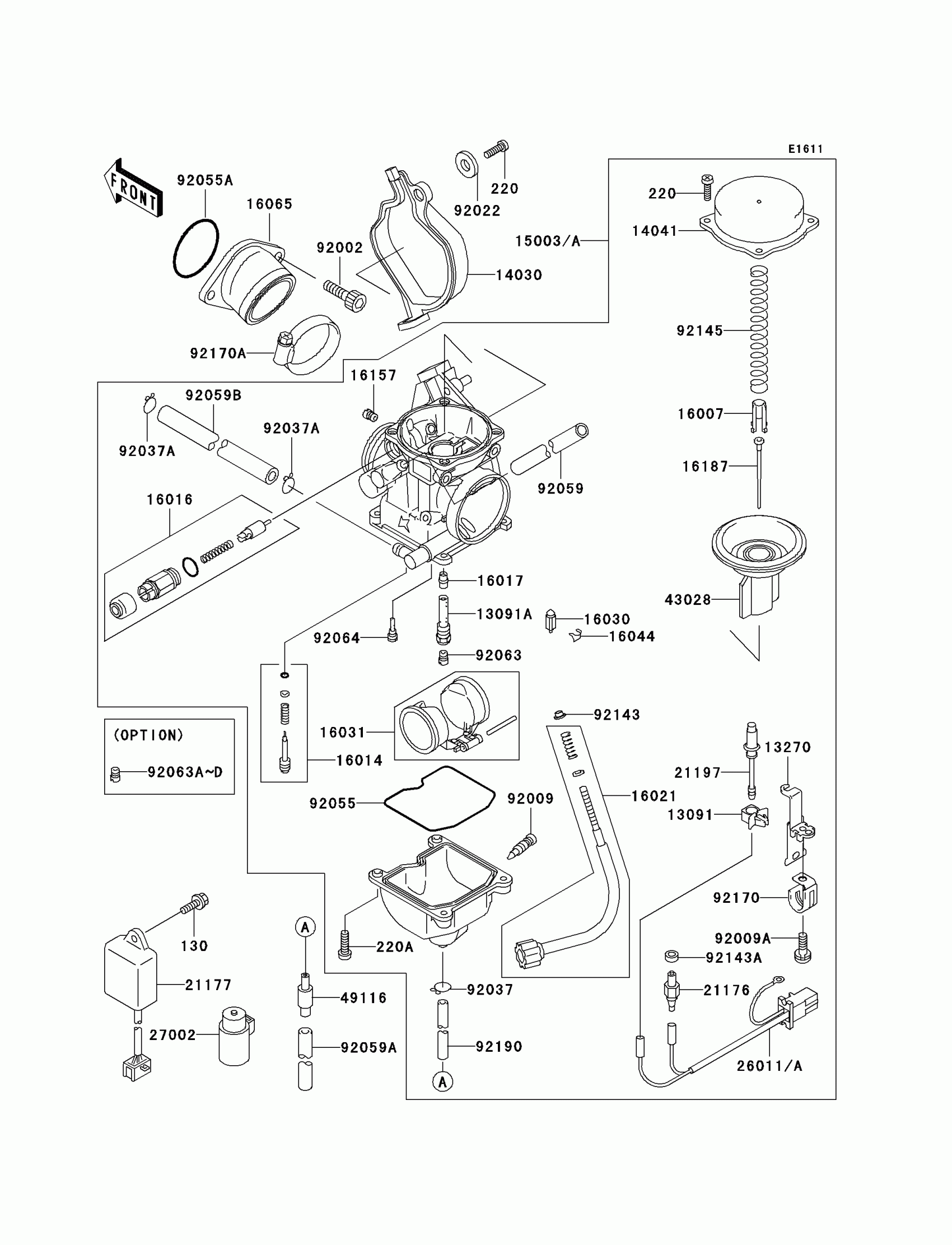

Kawasaki Prairie 300 Carburetor Diagram

#

Description
Price

13091

HOLDER,HEATER

13091-1866

$10.39

13091A

HOLDER,NEEDLE JET

13091-1914

$31.12

13270

PLATE,HEATER STAY

13270-1145

$12.81

14030

COVER-CARBURETOR

14030-1054

$11.28

14041

TOP-CHAMBER,MIXING,INSIDE

14041-1077

$97.80

15003A

CARBURETOR-ASSY

15003-1534

$750.14

16007

SEAT-SPRING,THROTTLE VALVE

16007-1120

$21.24

16014

SCREW-PILOT AIR

16014-1081

$19.94

16016

PLUNGER,STARTER

16016-1101

$51.56

16017

JET-NEEDLE,#6

16017-1394

$54.52

16021

SCREW-THROTTLE STOP

16021-1213

Unavailable

16030

VALVE-FLOAT

16030-1007

$42.48

16031

FLOAT

16031-1077

$47.31

16044

CLAMP,FLOAT VALVE

16044-007

$6.04

16065

HOLDER-CARBURETOR

16065-1355

$43.99

16157

JET-STARTER,#75

16157-1066

Unavailable

16187

NEEDLE-JET,N4YP

16187-1071

$43.23

21176

SENSOR

21176-1069

$151.50

21177

CONTROLLER

21177-1056

Unavailable

21197

HEATER

21197-1003

$109.75

26011A

WIRE-LEAD

26011-1733

$65.00

27002

RELAY-ASSY

27002-1095

$51.80

43028

DIAPHRAGM,VALVE

43028-1080

$204.57

49116

VALVE-ASSY

49116-1126

$16.82

92002

BOLT,6X16

92002-1143

$2.99

92009

SCREW,DRAIN,M6X0.75

92009-1551

$7.54

92009A

SCREW

92009-1706

$3.49

92022

WASHER,5.2X13X1

92022-1380

$3.29

92037

CLAMP,TUBE

92037-1201

$3.51

92037A

CLAMP,TUBE

92037-1531

$4.18

92055

RING-O,FLOAT CHAMBER

92055-1222

$13.15

92055A

RING-O,38MM

92055-1295

$12.40

92059

TUBE,6.5X9.5X230

92059-1720

$16.34

92059A

TUBE,7X10X100

92059-1736

$3.40

92059B

TUBE,6.5X11.5X170

92059-1837

$34.01

92063

JET-MAIN,#140

92063-1013

$10.71

92063A

JET-MAIN,#135

92063-1014

Unavailable

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

220A

SCREW-PAN-CROS,4X14

220D0414

$3.51

92063B

JET-MAIN,#138

92063-1015

Unavailable

92063C

JET-MAIN,#142

92063-1016

Unavailable

92063D

JET-MAIN,#145

92063-1017

Unavailable

92064

JET-PILOT,#35

92064-1035

$14.31

92143

COLLAR

92143-1589

$3.14

92143A

COLLAR

92143-1747

$4.31

92145

SPRING,VACUUM VALVE

92145-1227

$20.38

92170

CLAMP,HARNESS

92170-1396

$4.80

92170A

CLAMP

92170-1438

$6.85

92190

TUBE,4.5X8X330

92190-1557

$14.64
