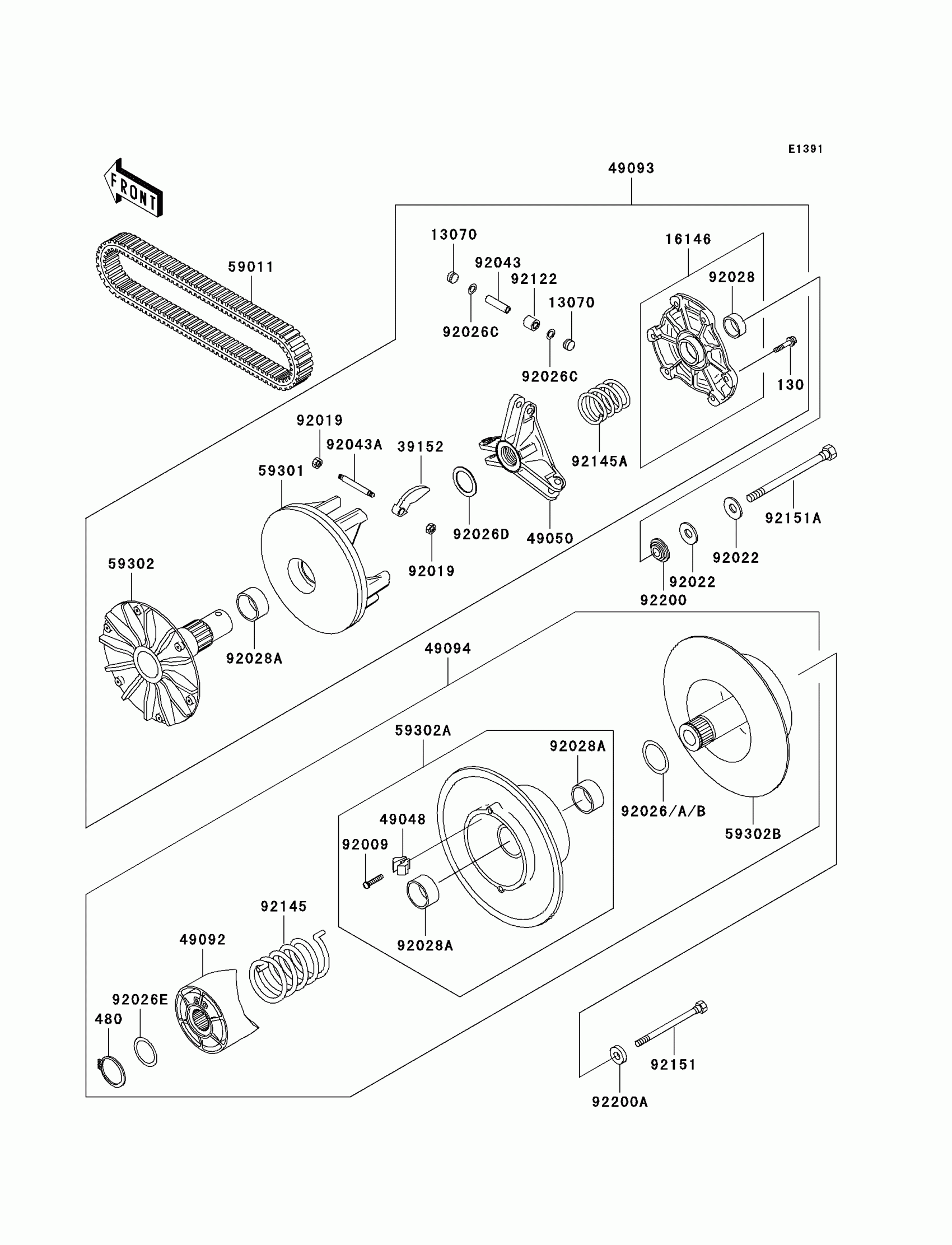

Kawasaki Prairie 300 Drive Converter Diagram

#

Description
Price

130

BOLT-FLANGED,6X30

130P0630

Unavailable

480

CIRCLIP

480J3400

$1.61

13070

GUIDE

13070-1330

$22.35

16146

COVER-ASSY

16146-1194

$66.37

39152

WEIGHT-RAMP

39152-1061

$40.55

49048

SHOE

49048-1060

$4.67

49050

SPIDER

49050-1064

$149.66

49092

RAMP

49092-1063

$61.90

49093

CONVERTER-ASSY-DRIVE

49093-1059

$973.94

49094

CONVERTER-ASSY-DRIVEN

49094-1058

$697.63

59011

BELT

59011-1065

$108.99

59301

SHEAVE-MOVABLE

59301-1060

Unavailable

59302

SHEAVE-COMP,FIXED

59302-1070

$384.54

59302A

SHEAVE-COMP,MOVABLE

59302-1072

$410.65

59302B

SHEAVE-COMP,FIXED

59302-1073

Unavailable

92009

SCREW,SHOE

92009-1849

$1.76

92019

NUT,LOCK,6MM

92019-008

$3.12

92022

WASHER,SPECIAL CONICAL

92022-1901

$4.93

92026

SPACER,39X50X0.50

92026-1507

Unavailable

92026A

SPACER,39X50X0.60

92026-1508

Unavailable

92026B

SPACER,39X50X0.80

92026-1510

Unavailable

92026C

SPACER

92026-1512

$1.20

92026D

SPACER,32.3X44.3X1.60

92026-1520

$8.17

92026E

SPACER,34X44X0.80

92026-1521

$3.81

92028

BUSHING

92028-1861

$5.54

92028A

BUSHING

92028-1864

$6.78

92043

PIN

92043-1572

$3.01

92043A

PIN

92043-1573

$9.91

92122

ROLLER

92122-1202

$5.03

92145

SPRING,CONVERTER DRIVEN

92145-1129

$25.56

92145A

SPRING,CONVERTER DRIVE

92145-1187

$24.05

92151

BOLT,10X95

92151-1315

$7.51

92151A

BOLT,12X165

92151-1393

$19.67

92200

WASHER

92200-1401

$12.62

92200A

WASHER,10.2X37X5.0

92200-1402

$15.39
