2002 Kawasaki Prairie 300 Front Bevel Gear Diagram

← All diagrams

Find the part on the Front Bevel Gear diagram for your 2002 Kawasaki Prairie 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

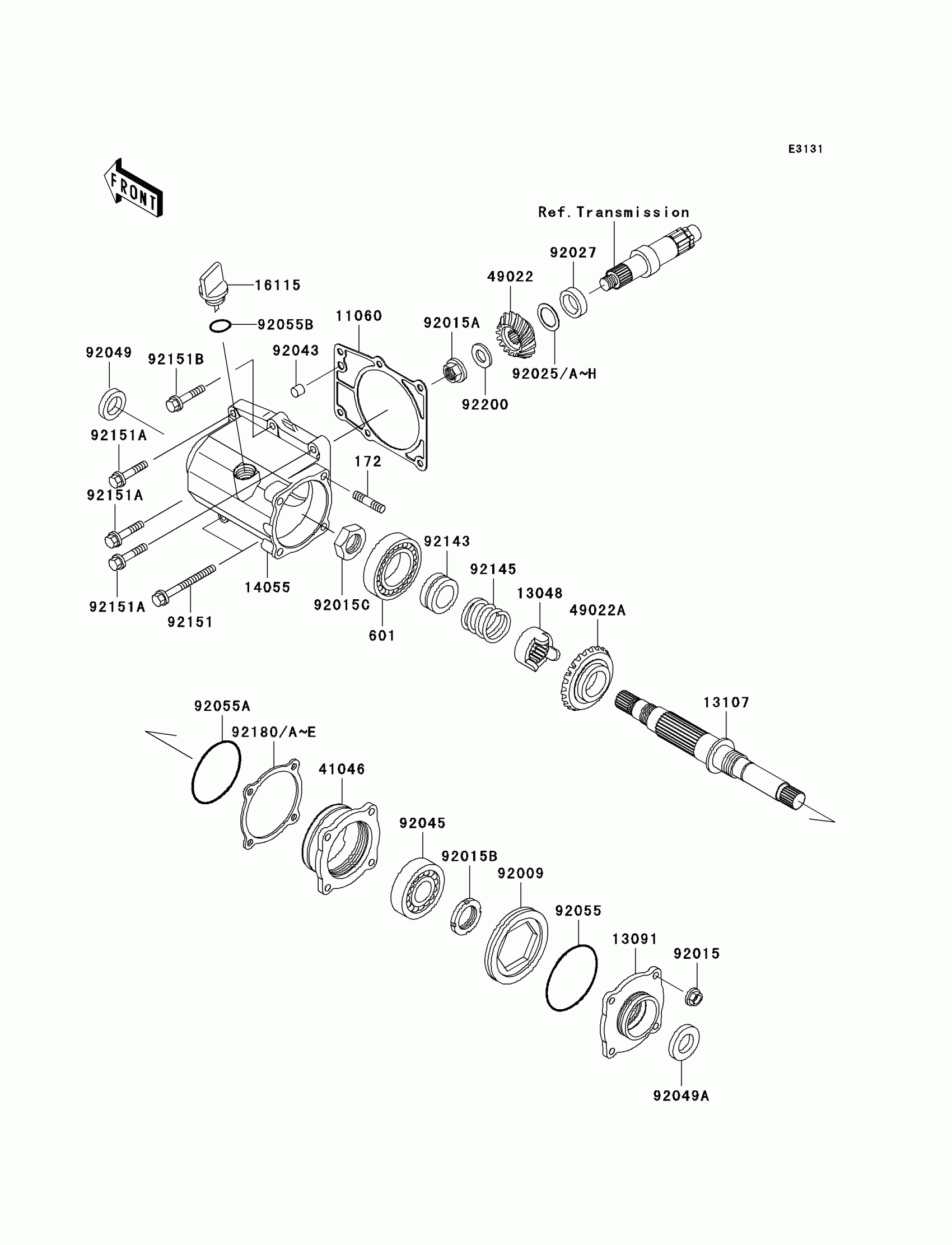

2002 Kawasaki Prairie 300 Front Bevel Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,GEAR CASE

11060-1728

1
Out of stock

13048

CAM-DAMPER

13048-1080

1
Out of stock

13091

HOLDER

13091-1950

1

$73.29

In stock

13107

SHAFT

13107-1388

1
Out of stock

14055

CASE-GEAR

14055-1127

1

$213.98

In stock

16115

CAP-OIL FILLER

16115-1065

1
Out of stock

41046

HOUSING-BEARING

41046-1094

1

$179.43

In stock

49022

GEAR-BEVEL,14T

49022-1151

1
Out of stock

49022A

GEAR-BEVEL,20T

49022-1180

1
Out of stock

92009

SCREW-SET-SOCKET,75X10

92009-1667

1
Out of stock

92015

NUT,8MM

92015-1402

1
Out of stock

92015A

NUT,16MM

92015-1581

1
Out of stock

92015B

NUT,30MM

92015-1858

1
Out of stock

92015C

NUT,26MM

92015-1990

1
Out of stock

92025

SHIM,25.3X36X0.15

92025-1688

—
Out of stock

92025A

SHIM,25.3X36X0.50

92025-1689

—
Out of stock

92025B

SHIM,25.3X36X0.60

92025-1690

—
Out of stock

92025C

SHIM,25.3X36X0.70

92025-1691

—
Out of stock

92025D

SHIM,25.3X36X0.80

92025-1692

—
Out of stock

92025E

SHIM,25.3X36X0.90

92025-1693

—
Out of stock

92025F

SHIM,25.3X36X1.00

92025-1694

—
Out of stock

92025G

SHIM,25.3X36X1.10

92025-1695

—
Out of stock

92025H

SHIM,25.3X36X1.20

92025-1696

—
Out of stock

92027

COLLAR,25.3X36X10

92027-1968

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1
Out of stock

92045

BEARING-BALL,6306SH2

92045-1190

1
Out of stock

92049

SEAL-OIL,AE1252E0

92049-1395

1
Out of stock

92049A

SEAL-OIL,AE1265E0

92049-1400

1
Out of stock

92055

"O" RING

92055-081

1
Out of stock

92055A

RING-O,79.5MM

92055-1230

1
Out of stock

92055B

RING-O,20X3

92055-2185

1
Out of stock

92143

COLLAR

92143-1900

1
Out of stock

92145

SPRING,BEVEL

92145-1209

1
Out of stock

92151

BOLT,8X100

92151-1431

1
Out of stock

92151A

BOLT,8X35

92151-1432

1
Out of stock

92151B

BOLT,8X32

92151-1446

1
Out of stock

92180

SHIM,T=1.00

92180-1126

—
Out of stock

92180A

SHIM,T=0.10

92180-1127

—
Out of stock

92180B

SHIM,T=0.15

92180-1128

—
Out of stock

92180C

SHIM,T=0.50

92180-1129

—
Out of stock

172

BOLT-STUD,8X30

172G0830

1
Out of stock

601

BEARING-BALL

601A6209

1
Out of stock

92180D

SHIM,T=0.80

92180-1130

—
Out of stock

92180E

SHIM,T=1.20

92180-1131

—
Out of stock

92200

WASHER,16.3X31X3.2

92200-1104

1
Out of stock
