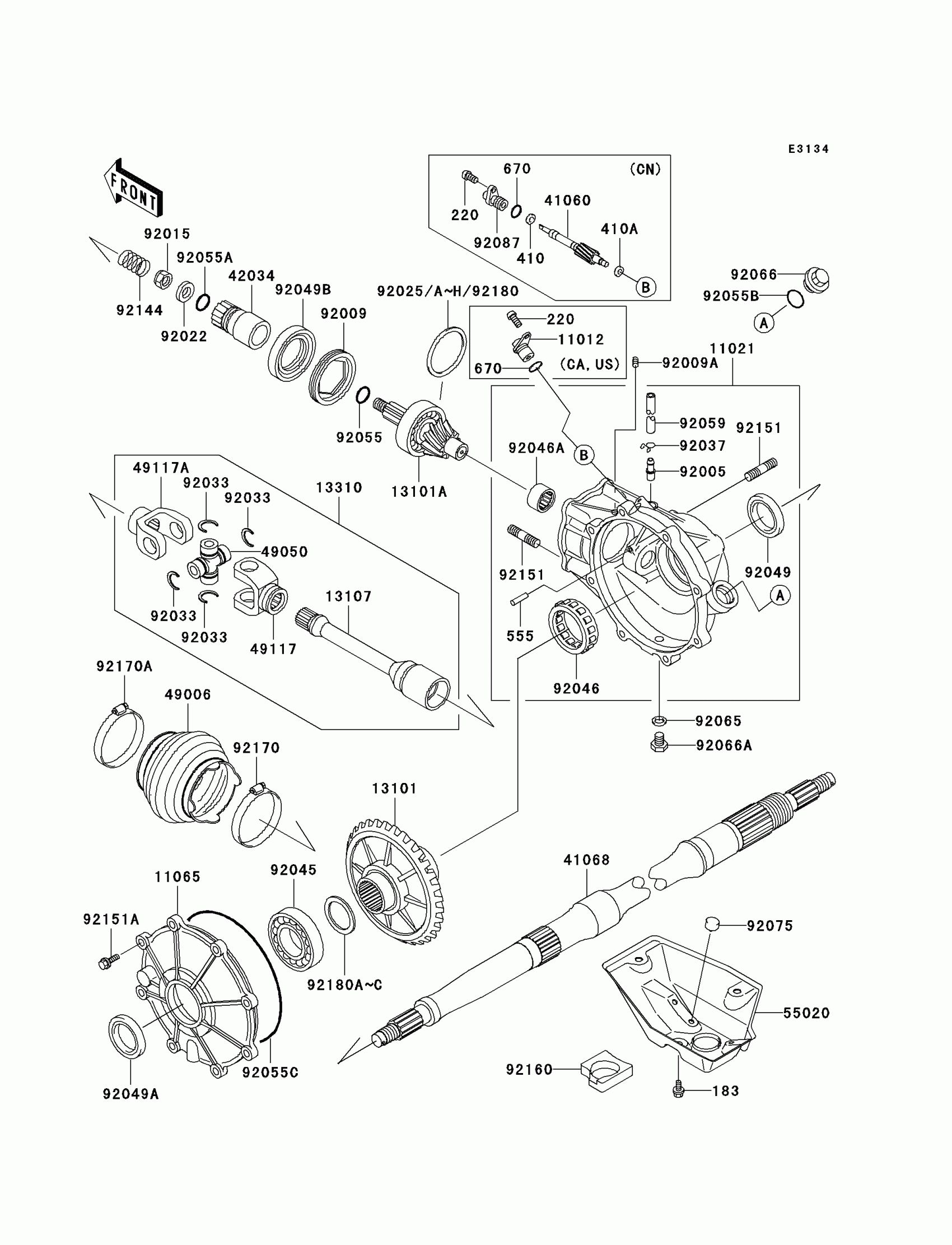

Kawasaki Prairie 300 Drive Shaft Diagram

#

Description
Price

11021

CASE-ASSY,DRIVE SHAFT

11021-1128

Unavailable

11065

CAP

11065-1103

$201.23

13101

GEAR-ASSY,39T

13101-1277

$350.49

13101A

GEAR-ASSY,9T

13101-1283

$255.51

13107

SHAFT,DRIVE

13107-1408

$172.29

13310

SHAFT-ASSY,DRIVE

13310-1024

Unavailable

41068

AXLE

41068-1388

$400.30

42034

COUPLING

42034-1145

$139.98

49006

BOOT

49006-1307

$29.78

49050

SPIDER

49050-1002

$138.29

49117

YOKE,DRIVE

49117-1085

$55.56

49117A

YOKE,DRIVE

49117-1086

$55.56

55020

GUARD

55020-1551

Unavailable

92005

FITTING,BREATHER

92005-1127

$17.17

92009

SCREW

92009-1528

Unavailable

92009A

SCREW,6X12

92009-1896

$1.88

92015

NUT,12MM

92015-1182

$7.83

92022

WASHER,12.3X25X3.2

92022-1293

$6.61

92025

SHIM,52.5X61.5X0.15

92025-1669

Unavailable

92025A

SHIM,52.5X61.5X0.18

92025-1670

Unavailable

92025B

SHIM,52.5X61.5X0.8

92025-1671

Unavailable

92025C

SHIM,52.5X61.5X0.9

92025-1672

Unavailable

92025D

SHIM,52.5X61.5X1.0

92025-1673

Unavailable

92025E

SHIM,52.5X61.5X1.1

92025-1674

Unavailable

92025F

SHIM,52.5X61.5X1.2

92025-1675

Unavailable

92025G

SHIM,52.5X61.5X1.3

92025-1676

Unavailable

92025H

SHIM,52.5X61.5X1.4

92025-1677

Unavailable

92033

RING-SNAP

92033-1030

$4.14

92037

CLAMP,TUBE

92037-147

$7.34

92045

BEARING-BALL,#6009

92045-1015

$35.50

92046

BEARING-NEEDLE

92046-1247

$52.65

92046A

BEARING-NEEDLE

92046-1265

$43.07

92049

SEAL-OIL

92049-1248

$21.20

183

BOLT-UPSET-WS-SMALL

183H0814

$0.66

220

SCREW-PAN-CROS

220X0614

Unavailable

555

PIN-SPRING

555A0422

$5.24

670

O RING,12MM

670B2012

$3.23

92049A

SEAL-OIL

92049-1287

$13.08

92049B

SEAL-OIL

92049-1460

$20.11

92055

RING-O

92055-012

$1.49

92055A

RING-O,27MM

92055-1119

$5.00

92055B

RING-O,25.7X2.4

92055-1136

$5.00

92055C

RING-O,160X2.6

92055-1599

$11.30

92059

TUBE,4.7X9.5X900

92059-1929

$9.14

92065

GASKET,10.5X16X1

92065-058

$3.96

92066

PLUG

92066-1303

$12.96

92066A

PLUG,DRAIN,10X8

92066-1490

Unavailable

92075

DAMPER

92075-021

$5.24

92144

SPRING

92144-1278

$5.18

92151

BOLT

92151-1424

$4.99

92151A

BOLT,8X25

92151-1506

$3.18

92160

DAMPER

92160-1956

$7.59

92170

CLAMP

92170-1676

$7.23

92170A

CLAMP

92170-1764

$11.48

92180

SHIM,52.5X61.5X0.10

92180-1115

Unavailable

92180A

SHIM,T=1.0

92180-1205

Unavailable

92180B

SHIM,T=0.1

92180-1206

Unavailable

92180C

SHIM,T=0.5

92180-1207

Unavailable

11012

CAP,METER GEAR

11012-1650

$24.59

41060

GEAR-METER SCREW

41060-1157

$38.11

410

WASHER PLAIN 5MM

410B0500

Unavailable

410A

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

92087

BUSHING-METER GEAR

92087-1057

$24.32
