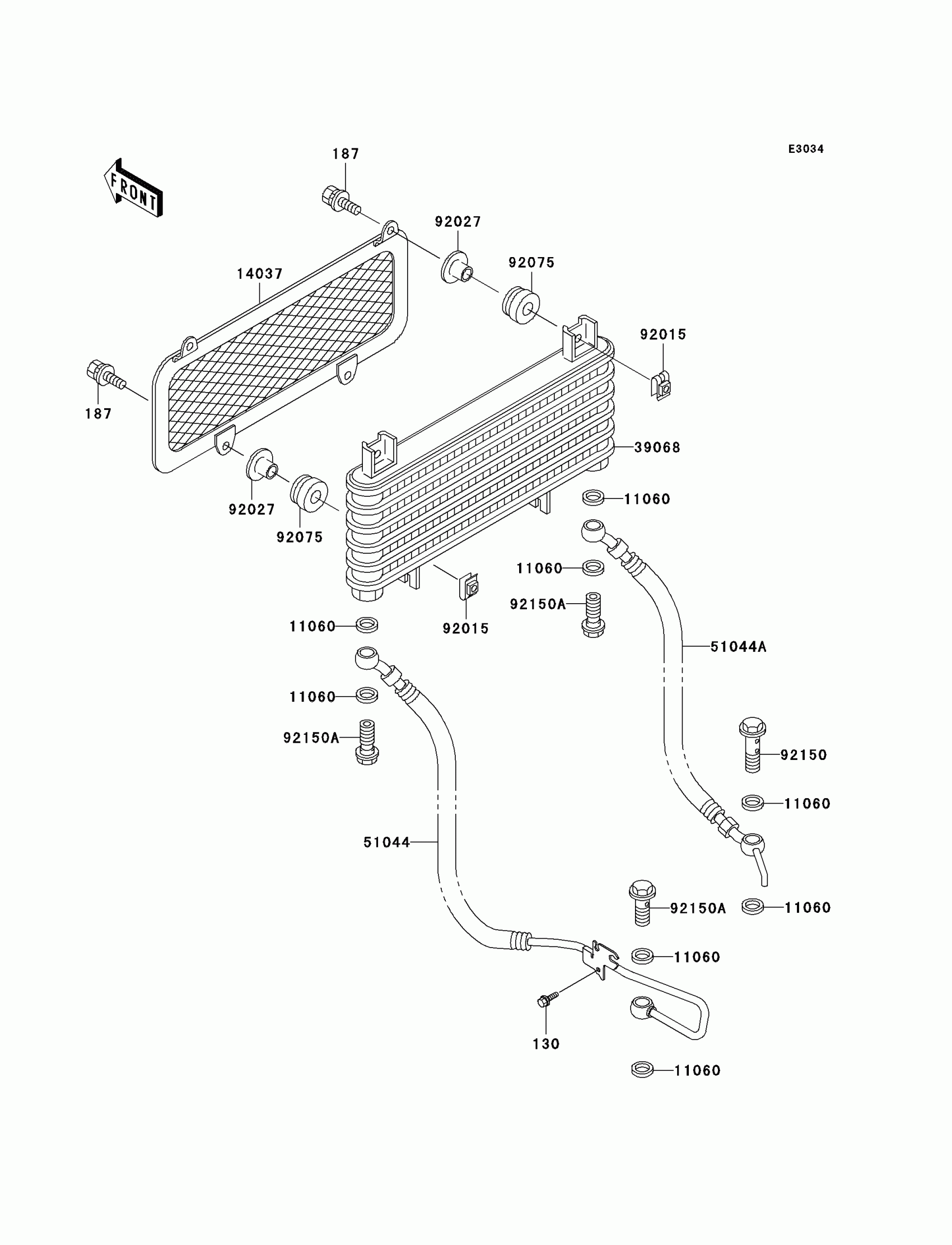

Kawasaki Prairie 300 4X4 Oil Cooler Diagram

Description

Price

130

BOLT-FLANGED,6X16

130H0616

Unavailable

187

BOLT-UPSET-WSP

187D0625

Unavailable

11060

GASKET,14X20X2

11060-1287

$2.36

14037

SCREEN

14037-1105

$49.03

39068

COOLER-ASSY-OIL

39068-1061

Unavailable

51044

TUBE-ASSY

51044-1201

Unavailable

51044A

TUBE-ASSY

51044-1207

$296.22

92015

NUT

92015-1487

$3.64

92027

COLLAR

92027-1767

$4.18

92075

DAMPER

92075-277

$1.90

92150

BOLT,BANJO,14X46

92150-1324

$23.75

92150A

BOLT

92150-1945

$16.93
