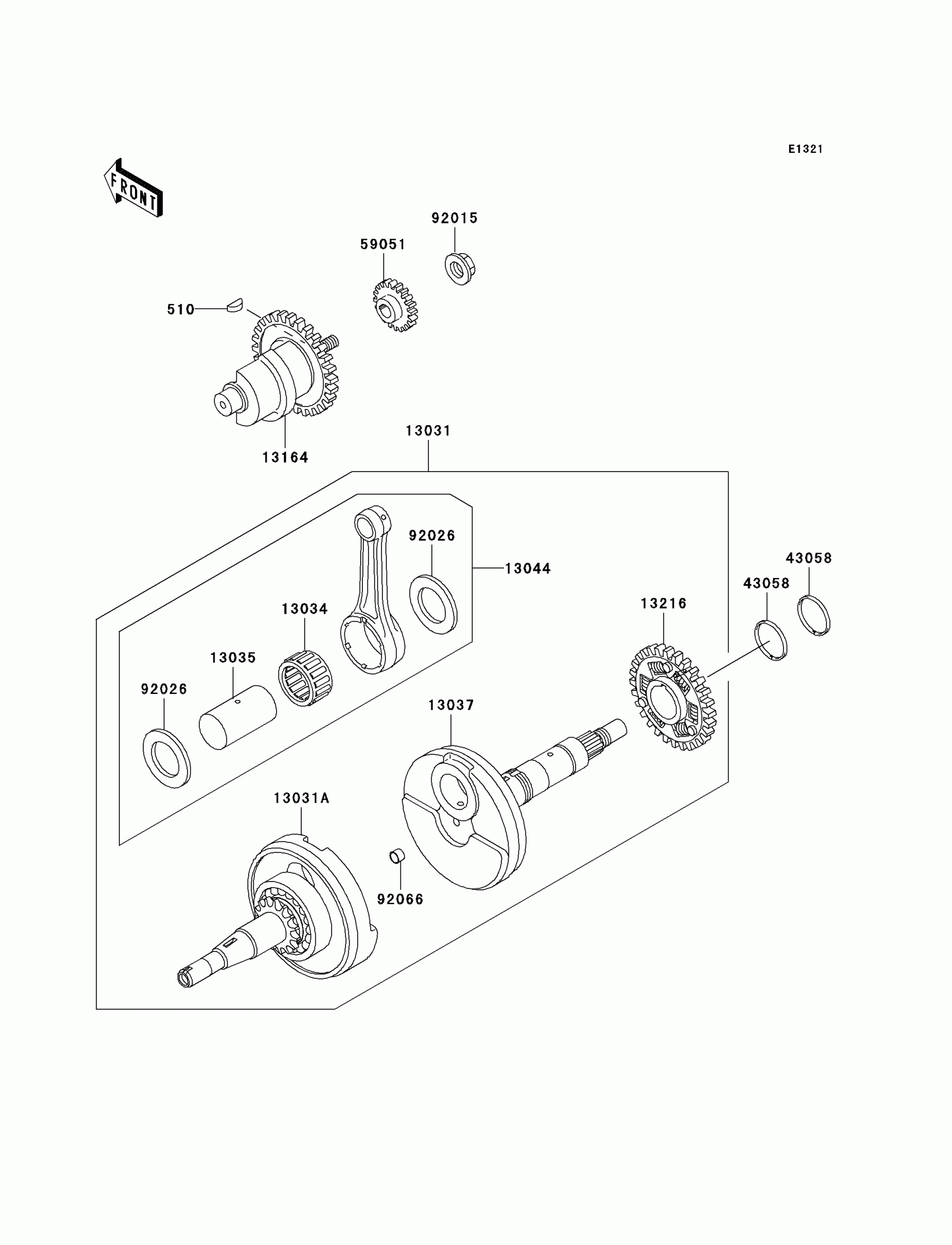

Kawasaki Prairie 300 4X4 Crankshaft Diagram

Description

Price

510

KEY-WOODRUFF

510A3100

$1.87

13031

CRANKSHAFT-COMP

13031-1440

Unavailable

13031A

CRANKSHAFT-COMP,LH

13031-1445

$396.26

13034

BEARING-BIG END,PK32X43X22.4

13034-1061

$48.84

13035

PIN-CRANK

13035-1067

$69.31

13037

CRANKSHAFT,RH

13037-1582

Unavailable

13044

SET-CONNECTING ROD

13044-5066

$281.88

13164

BALANCER-COMP

13164-1010

Unavailable

13216

GEAR-COMP,BALANCER

13216-1171

$150.32

43058

RING

43058-1091

Unavailable

59051

GEAR-SPUR,OIL PUMP

59051-1378

Unavailable

92015

NUT,FLANGED,10MM

92015-1428

$3.81

92026

SPACER,32X51.5X1.2

92026-1232

$11.12

92066

PLUG,CRANKSHAFT

92066-1159

Unavailable
