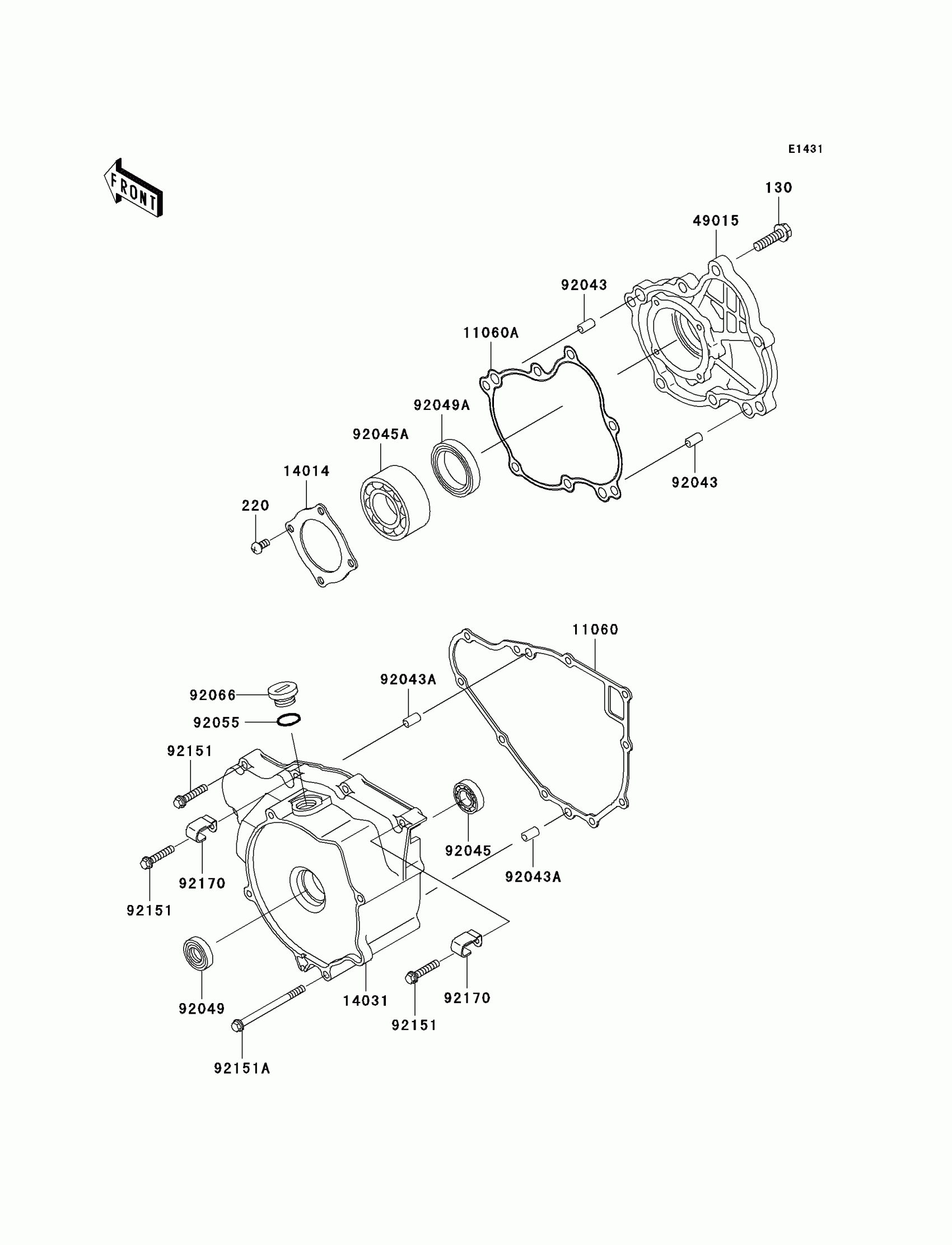

Kawasaki Prairie 300 4X4 Engine Cover(s) Diagram

Description

Price

130

BOLT-FLANGED,8X30

130P0830

Unavailable

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

11060

GASKET,GENERATOR COVER

11060-1656

$7.47

11060A

GASKET

11060-1850

$7.77

14014

PLATE-POSITION

14014-1138

Unavailable

14031

COVER-GENERATOR

14031-1339

$152.10

49015

COVER-CRANKCASE

49015-1055

$55.83

92043

PIN,6.2X8X14

92043-1263

$0.46

92043A

PIN,8.2X10X14

92043-1264

$0.51

92045

BEARING-BALL,6903C3

92045-1266

$20.02

92045A

BEARING-BALL,5206

92045-1329

$72.83

92049

SEAL-OIL,TC25356

92049-1317

$10.61

92049A

SEAL-OIL,TC30458

92049-1451

$11.59

92055

RING-O,20X2

92055-1146

$6.55

92066

PLUG,COVER

92066-1163

$11.20

92151

BOLT,6X30

92151-1139

$1.96

92151A

BOLT,6X80

92151-1430

$2.75

92170

CLAMP

92170-1863

$24.36
