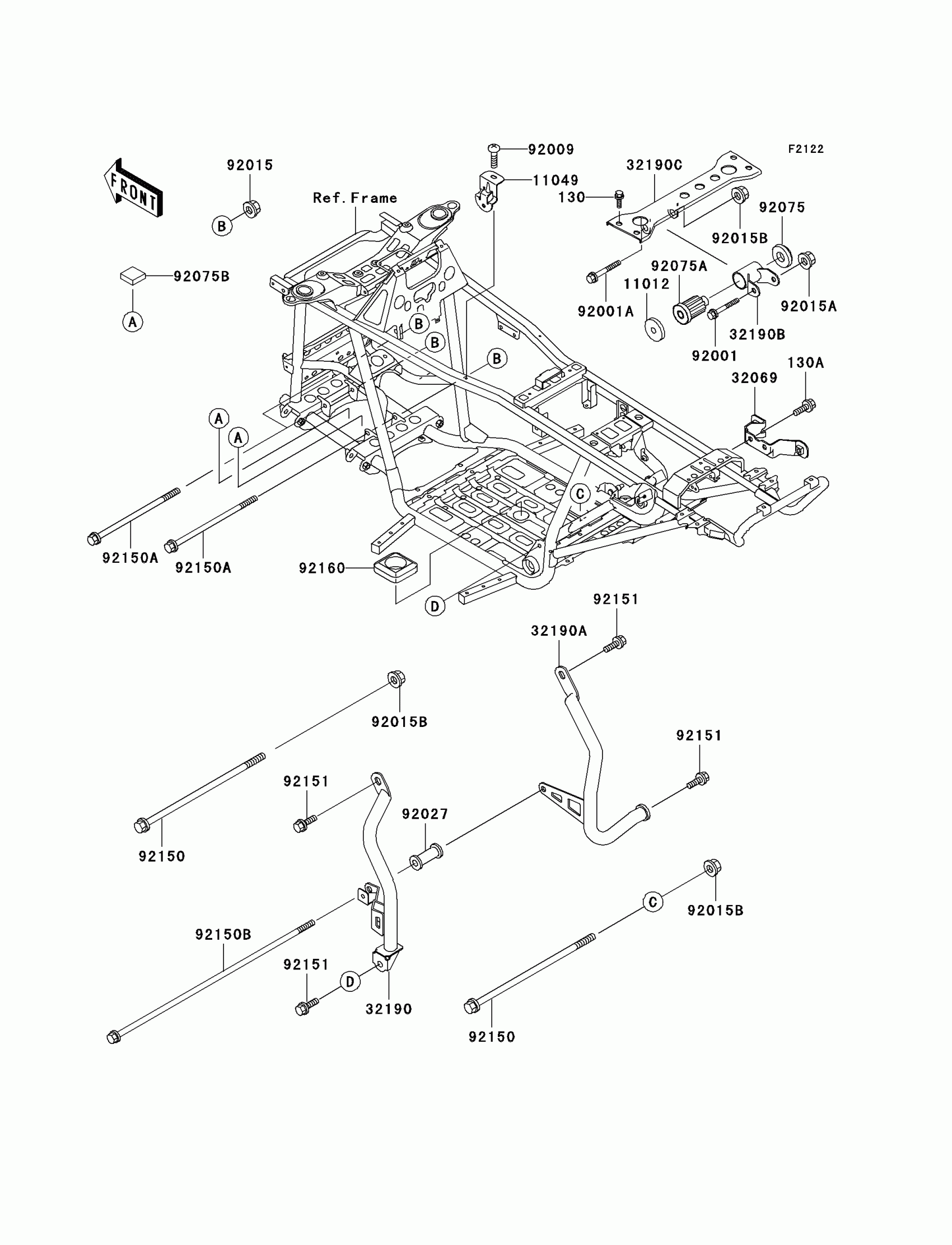

Kawasaki Prairie 300 4X4 Engine Mount Diagram

#

Description
Price

130

BOLT-FLANGED,8X12

130J0812

Unavailable

130A

BOLT-FLANGED,8X14

130J0814

Unavailable

11012

CAP,ENGINE BRACKET

11012-1228

$7.49

11049

BRACKET

11049-1738

$4.95

32069

BRACKET-MUFFLER

32069-1547

Unavailable

32190

BRACKET-ENGINE,LH

32190-1130

Unavailable

32190A

BRACKET-ENGINE,RH

32190-1132

Unavailable

32190B

BRACKET-ENGINE

32190-1141

$33.02

32190C

BRACKET-ENGINE

32190-1181

$78.80

92001

BOLT,FLANGED,8X60,BLACK

92001-1615

$5.97

92001A

BOLT,FLANGED,10X80

92001-1709

$10.02

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92015

NUT,FLANGED,10MM

92015-1335

$1.85

92015A

NUT,LOCK,FLANGED,8MM

92015-1397

$3.29

92015B

NUT,FLANGED,10MM

92015-1727

$3.29

92027

COLLAR,L=54

92027-275

$17.20

92075

DAMPER,ENGINE MOUNT,SIDE

92075-1274

$16.49

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1377

$31.41

92075B

DAMPER,FUEL TANK,RR

92075-1483

$10.73

92150

BOLT,FLANGED,10X150

92150-1686

$12.15

92150A

BOLT,FLANGED,10X120

92150-1831

$6.03

92150B

BOLT,FLANGED,10X205

92150-1899

Unavailable

92151

BOLT,FLANGED,10X16

92151-1137

$2.58

92160

DAMPER

92160-1772

$10.41
