1995 Kawasaki Police 1000 Swingarm/shock Absorber Diagram

← All diagrams

Find the part on the Swingarm/shock Absorber diagram for your 1995 Kawasaki Police 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

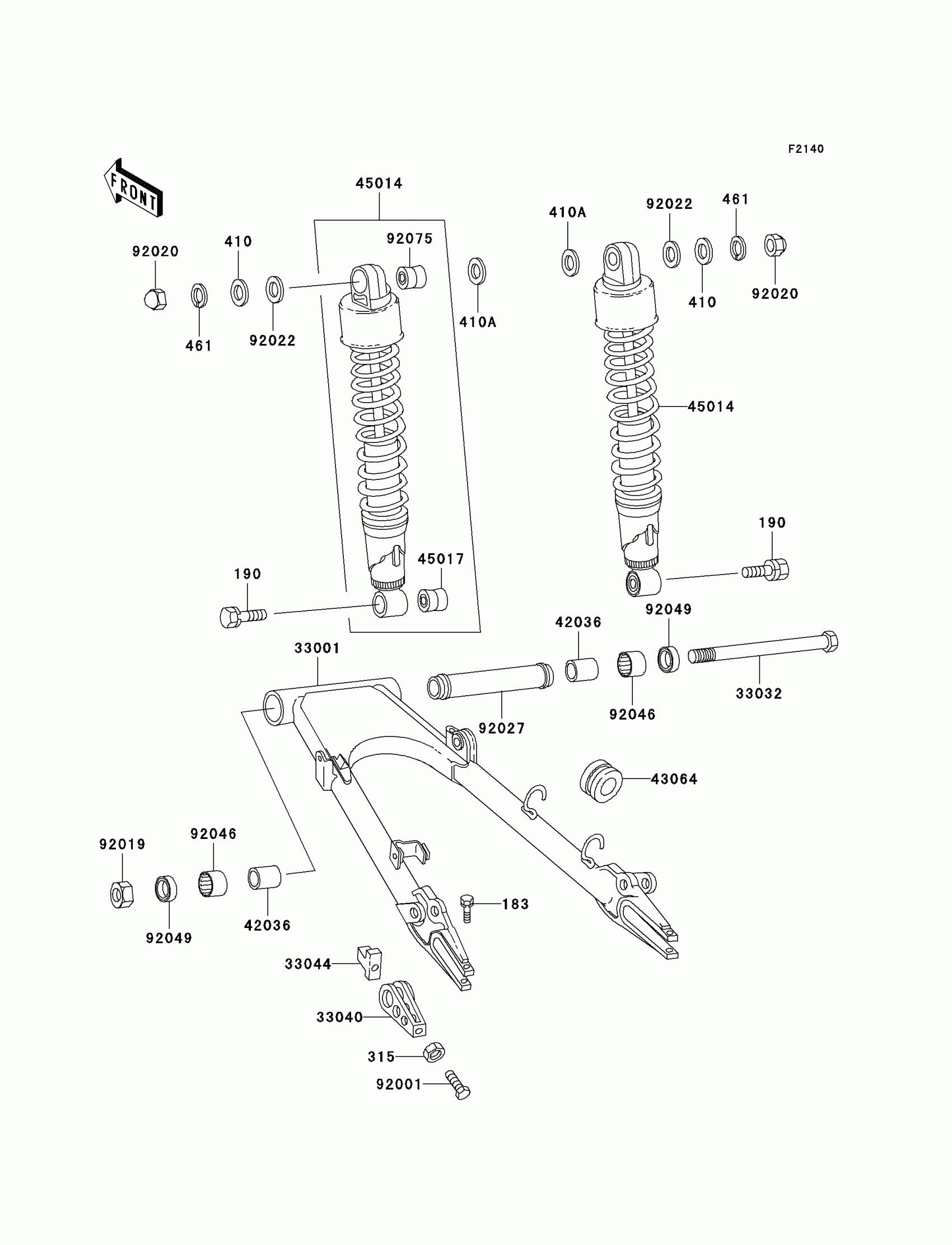

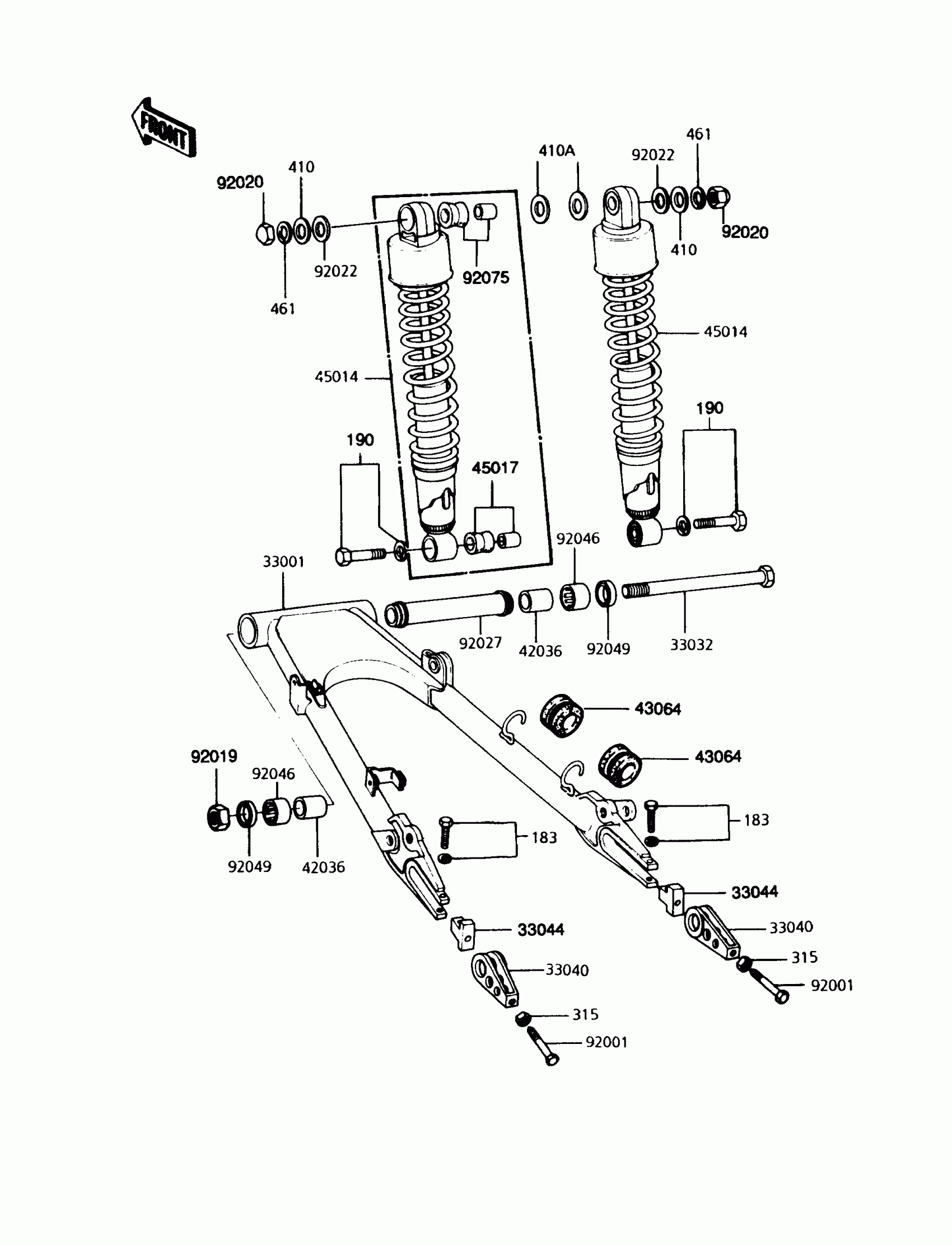

1995 Kawasaki Police 1000 Swingarm/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

33001

ARM-COMP-SWING

33001-4006

1
Out of stock

33032

SHAFT-SWING ARM

33032-036

1
Out of stock

33040

ADJUSTER-CHAIN

33040-066

1
Out of stock

33044

STOPPER,CHAIN ADJUSTER

33044-001

1
Out of stock

42036

SLEEVE,SWING ARM

42036-1040

1
Out of stock

43064

GROMMET,HOSE CLAMP

43064-007

1
Out of stock

45014

SHOCKABSORBER,RR

45014-1174

1
Out of stock

45017

DAMPER,SHOCKABSORBER,LWR

45017-019

1
Out of stock

92001

BOLT,10X50

92001-143

1
Out of stock

92019

NUT,LOCK,16MM

92019-005

1
Out of stock

92020

NUT,CAP,12MM

92020-014

1
Out of stock

92022

WASHER,12.4X28X2.3

92022-1239

1
Out of stock

92027

COLLAR,SWING ARM

92027-1561

1
Out of stock

92046

BEARING-NEEDLE,BHTM2530-1

92046-1035

1
Out of stock

92049

SEAL-OIL,MH25334

92049-1060

1
Out of stock

92075

DAMPER,SHOCKABSORBER

92075-1141

1
Out of stock

183

BOLT-UPSET-WS-SMALL

183G0840

1
Out of stock

190

BOLT-UPSET-WS

190N1035

1
Out of stock

315

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

410

WASHER-PLAIN-SMALL,12MM

410B1200

1
Out of stock

410A

WASHER-PLAIN-SMALL,14MM

410B1400

1
Out of stock

461

WASHER-SPRING,12MM

461F1200

1
Out of stock
