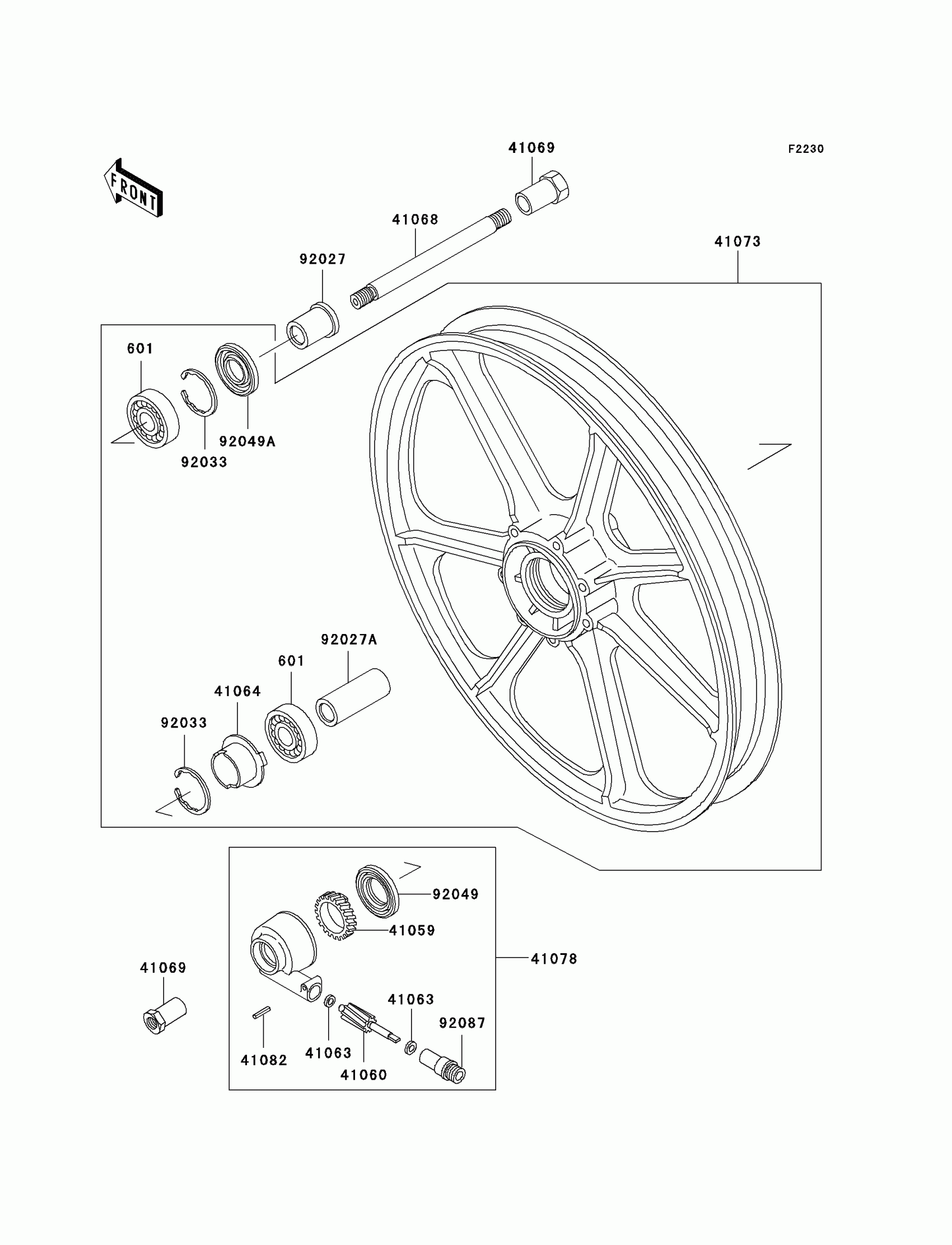

Kawasaki Police 1000 Front Wheel Diagram

Description

Price

41059

GEAR-METER SCREW,26T

41059-026

$43.35

41060

GEAR-METER SCREW,9T

41060-1016

Unavailable

41063

WASHER,5.1X9X0.4

41063-001

$4.17

41064

RECEIVER-SPEEDOMETER

41064-1006

$11.33

41068

AXLE,FR,L=259

41068-1072

$89.53

41069

COLLAR,FRONT AXLE

41069-031

$32.52

41073A

WHEEL-ASSY,FR,P.C.GRAY

41073-1550-DH

$1,121.72

41078

CASE-ASSY-METER GEAR

41078-1013

Unavailable

41082

PIN,SPRING

41082-001

$3.53

92027

COLLAR,L=30

92027-1225

$16.49

92027A

COLLAR,FR HUB,L=80

92027-1437

$34.54

92033

RING-SNAP,42MM

92033-1041

$4.64

92049

SEAL-OIL,BJN30427-C3

92049-1057

$7.08

92049A

SEAL-OIL,BJN22425

92049-1058

$7.41

92087

BUSHING-METER GEAR

92087-1002

$22.34

601

BEARING-BALL,#6302UG

601B6302UG

$38.63
