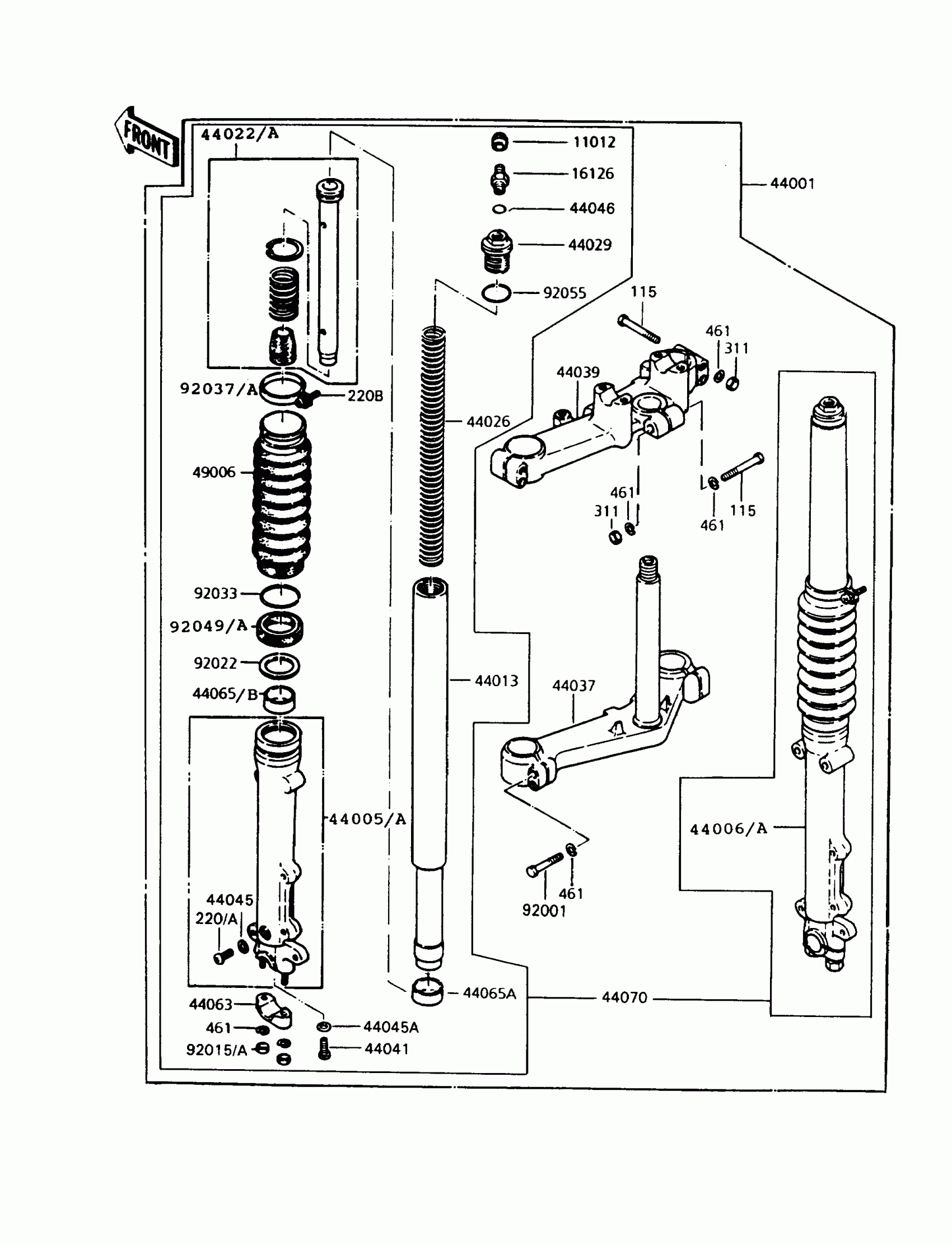

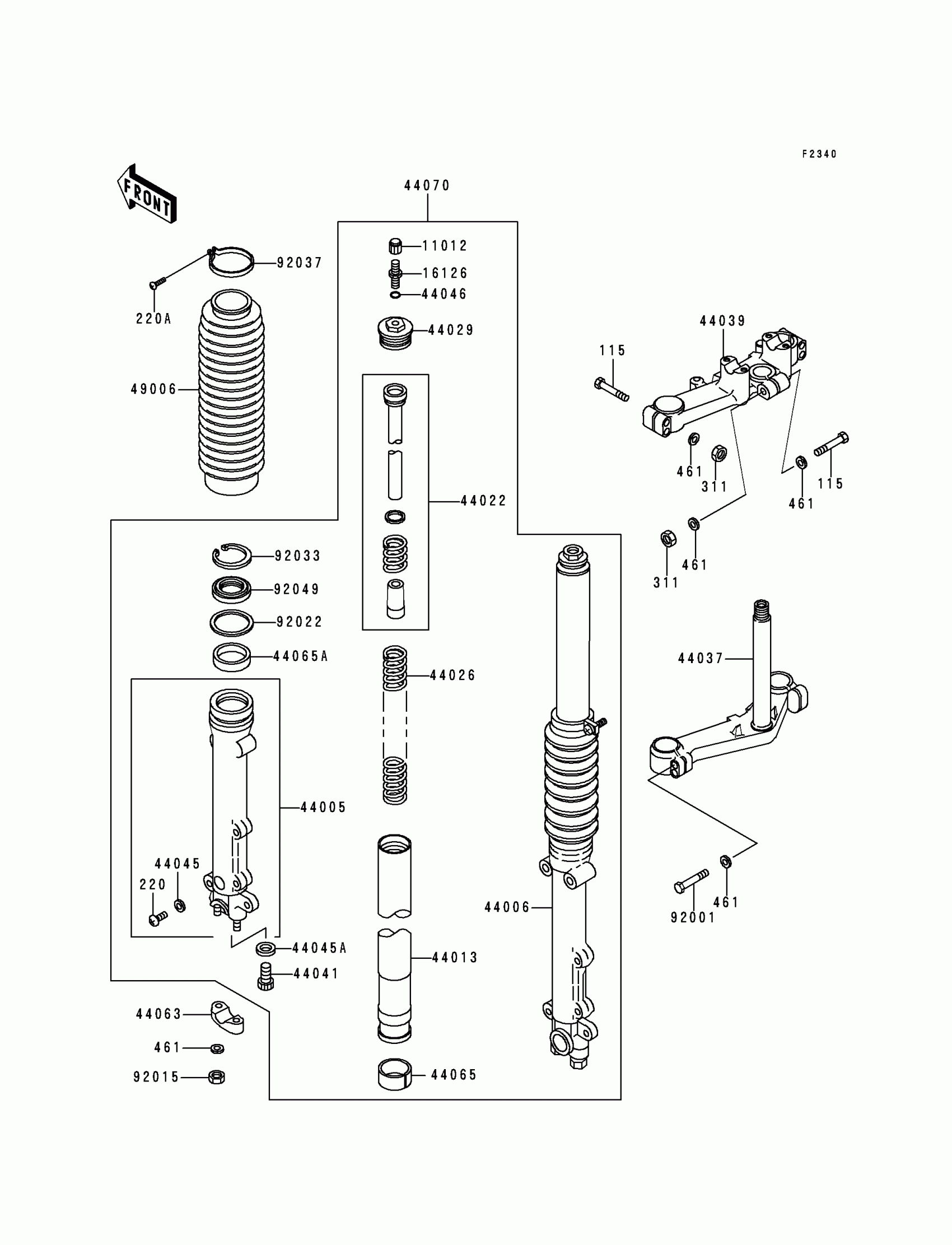

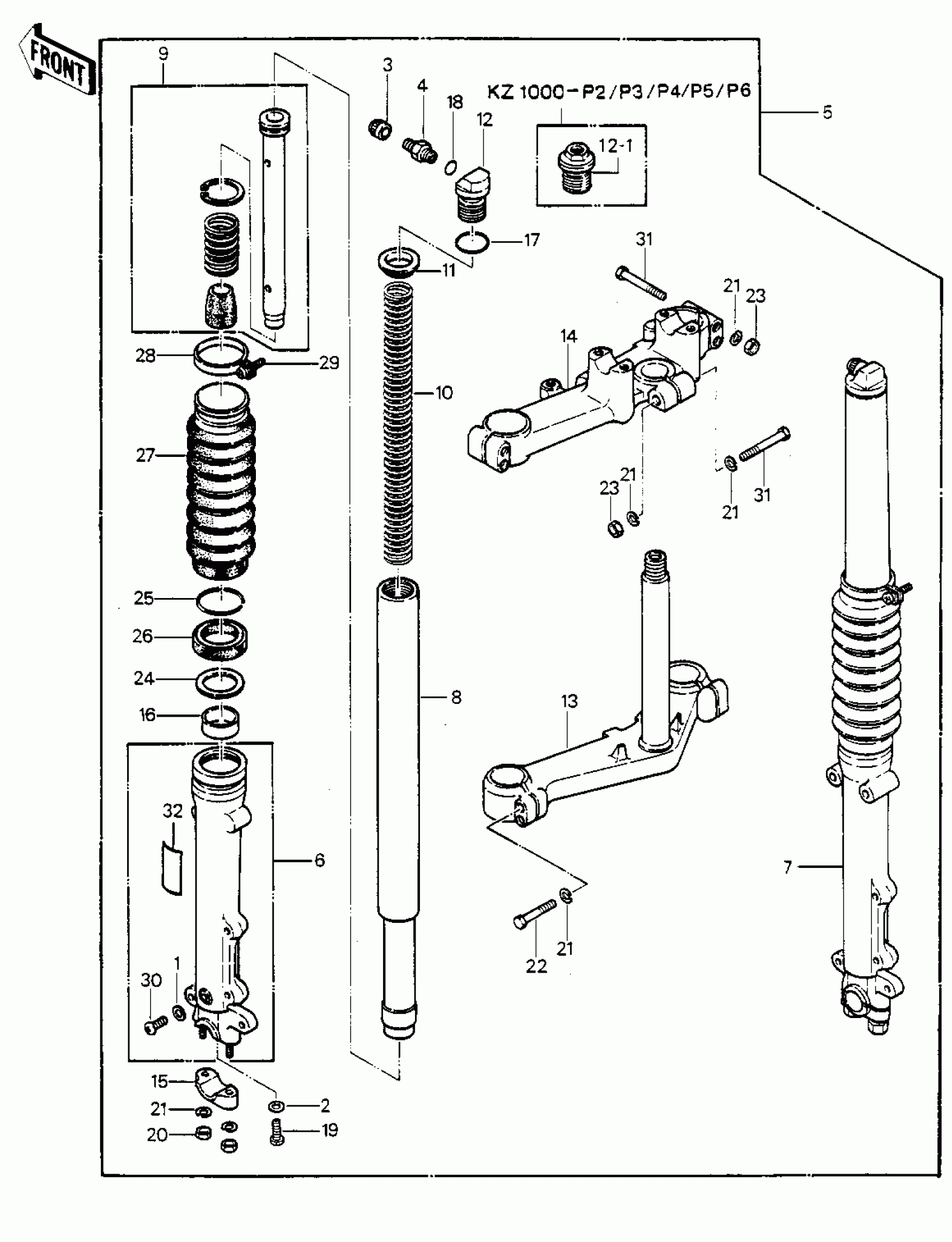

Kawasaki Police 1000 FRONT FORK Diagram

#

Description
Price

1

GASKET,FORK DRAIN PLUG

44045-002

$4.12

2

GASKET

44045-057

$3.86

3

CAP,AIR VALVE

11012-1241

Unavailable

4

VALVE,AIR

16126-1052

$32.11

5

FORK-FRONT

44001-1343

$1,218.63

5

FORK-FRONT

44001-4011

$1,246.73

5

FORK-FRONT

44001-1606

$1,211.81

6

TUBE,LH,FORK OUTER

44005-1100

$213.35

6

PIPE-LEFT FORK OUTER

44005-4002

Unavailable

7

TUBE,RH,FORK OUTER

44006-1100

$300.32

7

PIPE-RIGHT FORK OUTER

44006-4002

Unavailable

8

PIPE-FORK INNER

44013-1097

$337.96

8

PIPE-FORK INNER

44013-4002

Unavailable

9

CYLINDER-FORK

44022-1083

Unavailable

9

CYLINDER-FORK

44022-1071

$134.17

10

SPRING-FRONT FORK

44026-1154

$62.73

10

SPRING-FRONT FORK

44026-4002

$53.32

10

SPRING-FRONT FORK

44026-1312

Unavailable

11

GUIDE,FORK SPRING

44028-033

Unavailable

12

SEAT-FORK SPRING

44029-1029

$57.54

12-1

SEAT-FORK SPRING

44029-4001

Unavailable

13

HOLDER-FORK UNDER

44037-1087

$170.40

13

HOLDER-FORK UNDER

44037-4004

$627.00

14

UNAVAILABLE IN PRICE BOOK

44029-1056

Unavailable

14

HOLDER-FORK UPPER

44039-4007

$382.76

15

HOLDER-FRONT AXLE

44063-1006

$44.66

15

HOLDER-FRONT AXLE

44063-011

$37.23

16

BUSHING-FRONT FORK,OUTER TUBE

44065-1091

$23.54

17

RING-O,FORK TOP

92055-1012

$6.75

18

"0" RING,AIR VALVE

92055-1094

$1.14

19

BOLT,SOCKET,FORK CYLINDER

44041-040

$5.21

20

NUT,LOCK,8MM

92015-1124

$4.30

21

WASHER SPRING 8MM

461F0800

Unavailable

22

BOLT,8X38

92001-1700

$9.61

23

NUT-HEX,8MM

311G0800

Unavailable

24

WASHER,FORK OUTER PIPE

92022-1262

$8.39

25

RING-SNAP,FORK

92033-1047

$5.11

26

SEAL-OIL,FORK OUTER TUBE

92049-1295

$20.52

27

BOOT,FORK,BLACK

49006-1079

$86.19

28

BAND,BOOT

92072-1046

$9.71

28

CLAMP,BOOT,BLACK

92037-1321

Unavailable

29

SCREW-PAN-CROS

220B0420

Unavailable

30

SCREW PAN HEAD 4X8

220B0408

Unavailable

31

BOLT,HEX HEAD,8X55

114G0855

Unavailable

32

LABEL-WARNING,FRONT FORK

56040-1110

Unavailable
