1986 Kawasaki Police 1000 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1986 Kawasaki Police 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

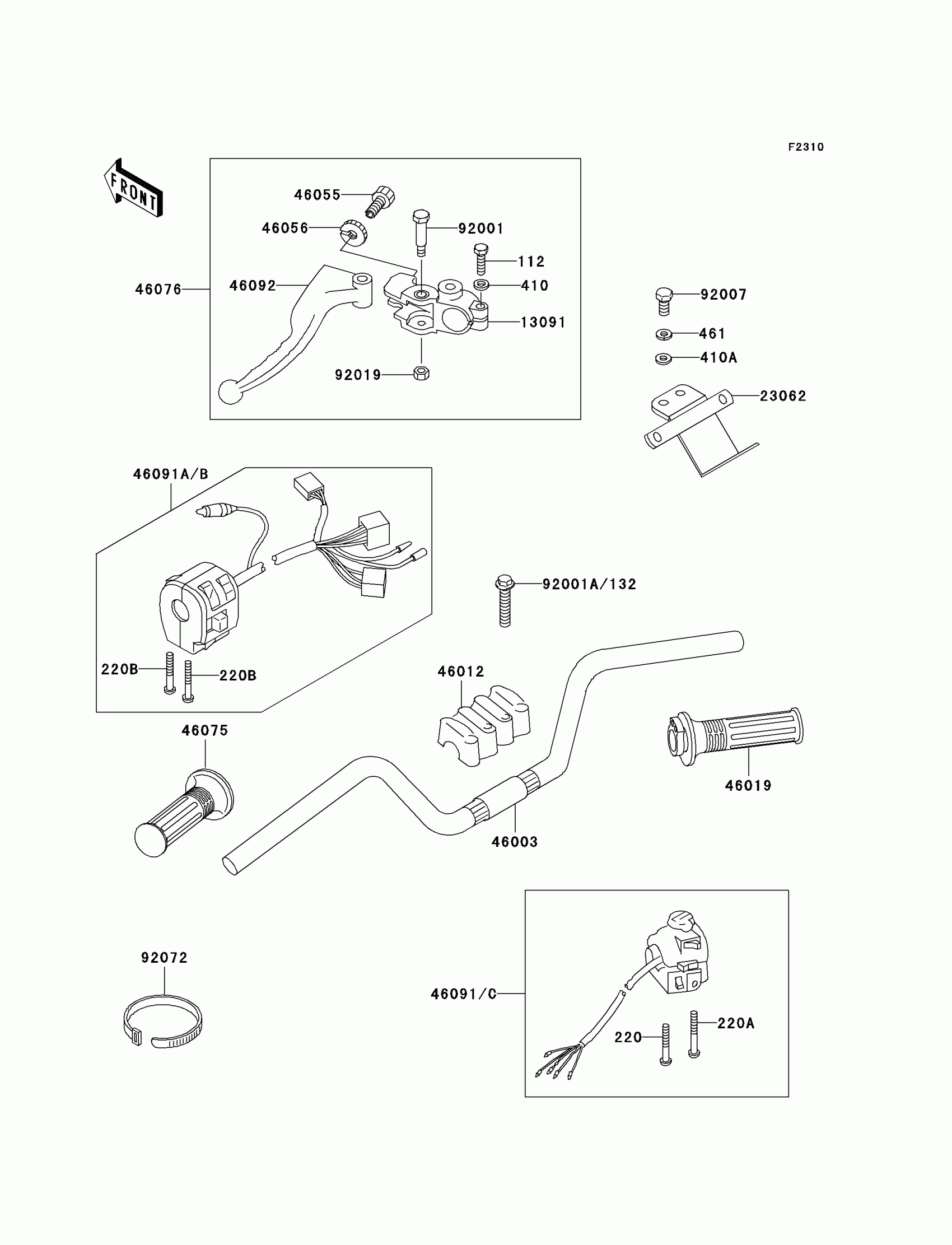

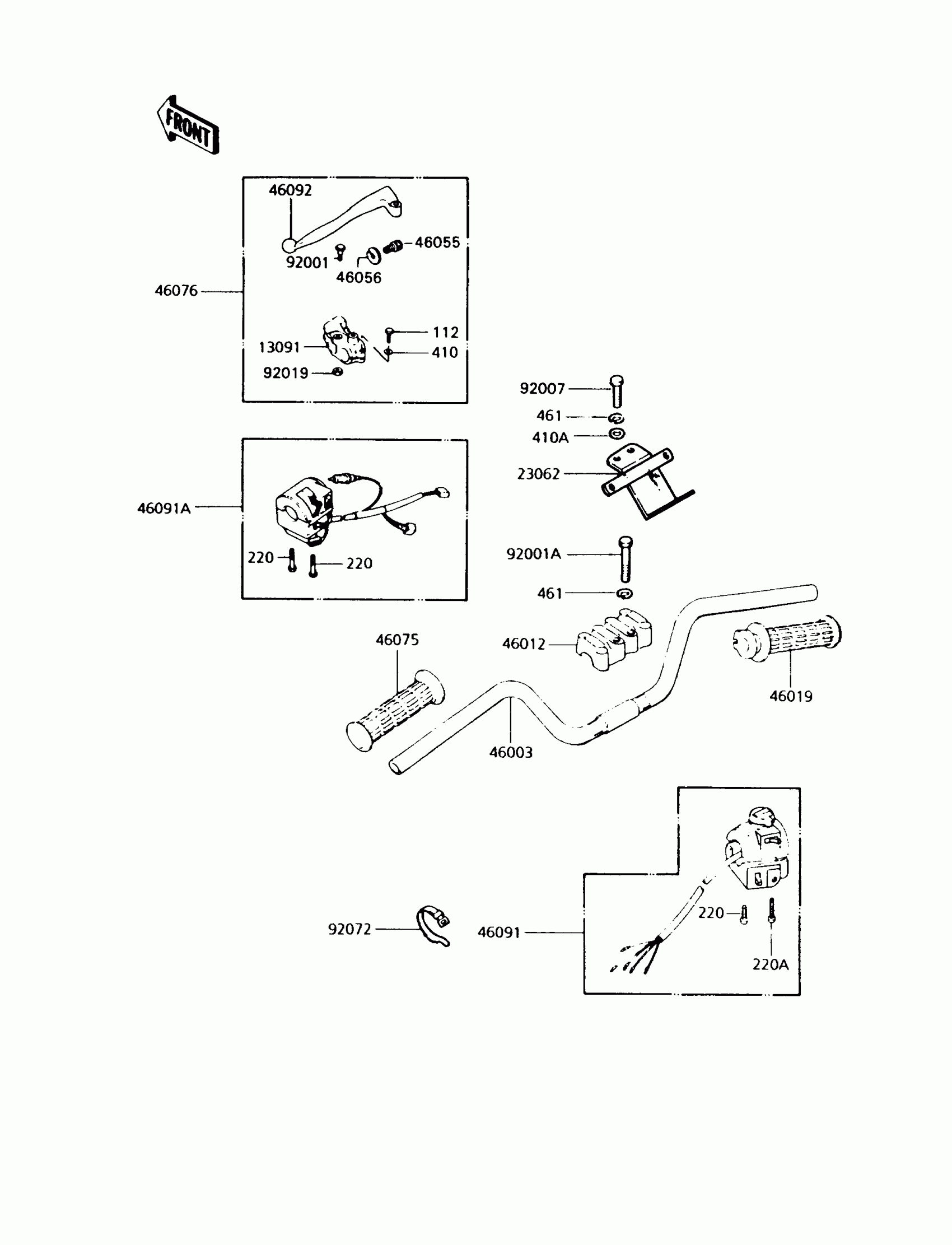

1986 Kawasaki Police 1000 Handlebar Diagram

#

Description
Price
Status
Order Qty

1

$58.25

In stock

2

LEVER-GRIP,CLUTCH

46092-1005

$29.09

In stock

3

$51.67

In stock

4

BOLT,CLUTCH LEVER

92001-1075

$8.03

In stock

5

NUT,LOCK,6MM

92019-008

$3.36

In stock

6

$7.04

In stock

7

SCREW,CABLE ADJUSTER

92009-1022

Out of stock

7

$12.92

In stock

8

BOLT,6X22

110N0622

Out of stock

9

$1.19

In stock

10

$421.17

In stock

11

SCREW-PAN-CROS

220B0535

$2.94

In stock

12

GRIP,LH

46075-1020

Out of stock

13

$229.34

In stock

14

GRIP-ASSY

46019-1022

$46.12

In stock

15

HOLDER-HANDLE

46012-4001

$171.43

In stock

16

BOLT 8X38

92001-1405

$13.05

In stock

16

BOLT,FLANGED,8X35

92001-1910

$5.71

In stock

17

WASHER SPRING 8MM

461F0800

Out of stock

17

WASHER SPRING 8MM

461F0800

Out of stock

18

HANDLE

46003-4008

$207.74

In stock

18

HANDLE

46003-4008

$207.74

In stock

19

BAND,L=149

92072-031

$3.97

In stock

20

SCREW PAN HEAD 5X30

220B0530

Out of stock

21

SCREW-PAN-CROS

220B0540

Out of stock

22

CAP-RR VIEW MIRROR

92102-009

Out of stock

23

BRACKET-COMP

23062-4003

$101.39

In stock

24

BOLT,8X16

92007-003

Out of stock

25

WASHER PLAIN 8MM

410B0800

Out of stock

26

MIRROR-ASSY,LH

56001-4004

$80.98

In stock

26

MIRROR-ASSY,LH

56001-4004

$80.98

In stock
