1995 Kawasaki Police 1000 Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 1995 Kawasaki Police 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

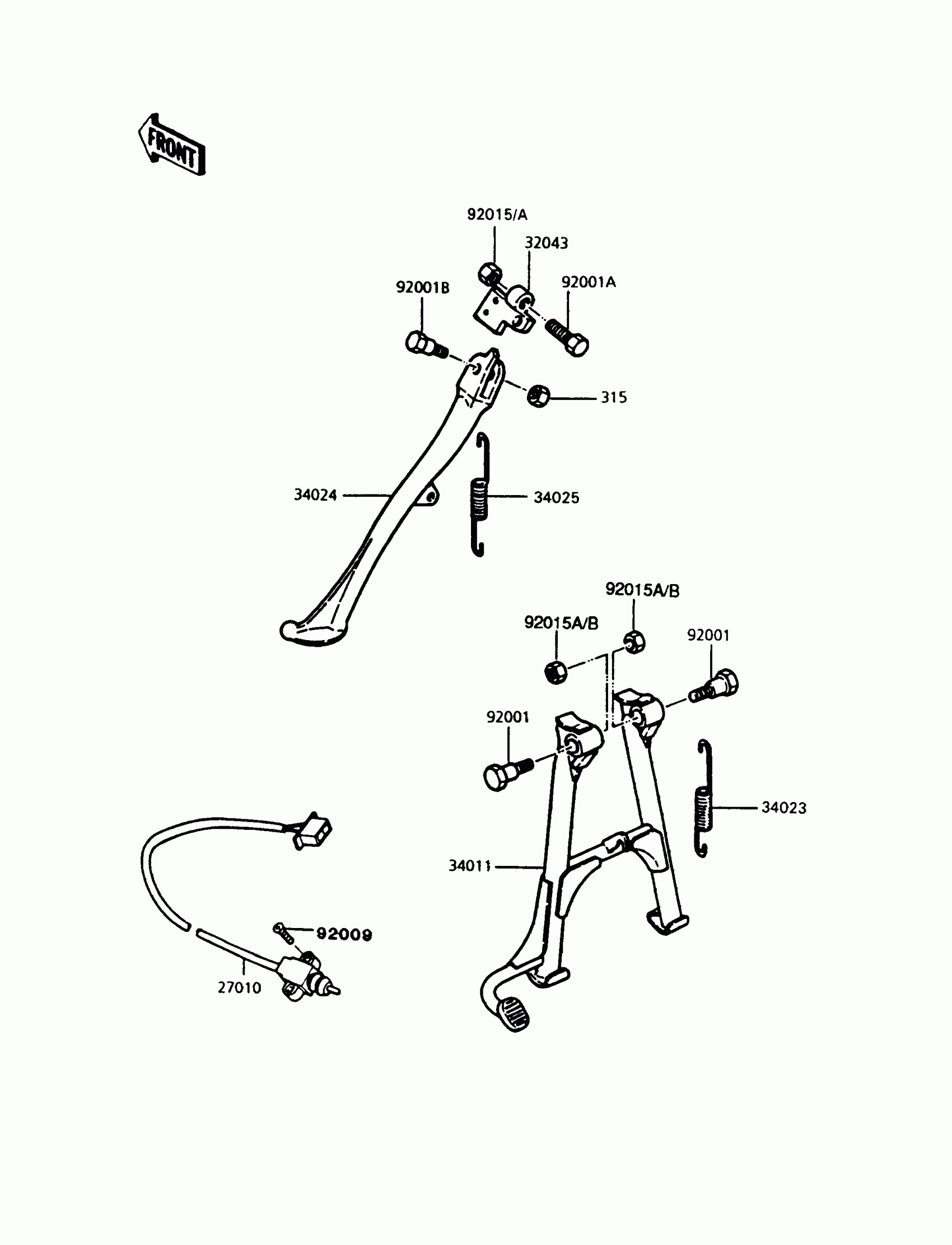

1995 Kawasaki Police 1000 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

27010

SWITCH,SIDE STAND

27010-1203

1

$83.20

In stock

32043

BRACKET-STAND,SIDE

32043-1295

1

$163.51

In stock

34011

STAND-CENTER

34011-1139

1

$194.66

In stock

34023

SPRING,CNT STAND

34023-012

1
Out of stock

34024

STAND-SIDE

34024-1216

1

$128.89

In stock

34025

SPRING,STAND

34025-005

1

$6.03

In stock

92001

BOLT,CENTER STAND

92001-1214

1

$9.12

In stock

92001A

BOLT,10X16

92001-4013

1

$11.92

In stock

92001B

BOLT,SIDE STAND

92001-4028

1
Out of stock

92009

SCREW,5X20

92009-1359

1
Out of stock

92015A

NUT,LOCK,10MM

92015-1376

1

$7.71

In stock

315

NUT-HEX-FINE,10MM

315B1000

1
Out of stock
