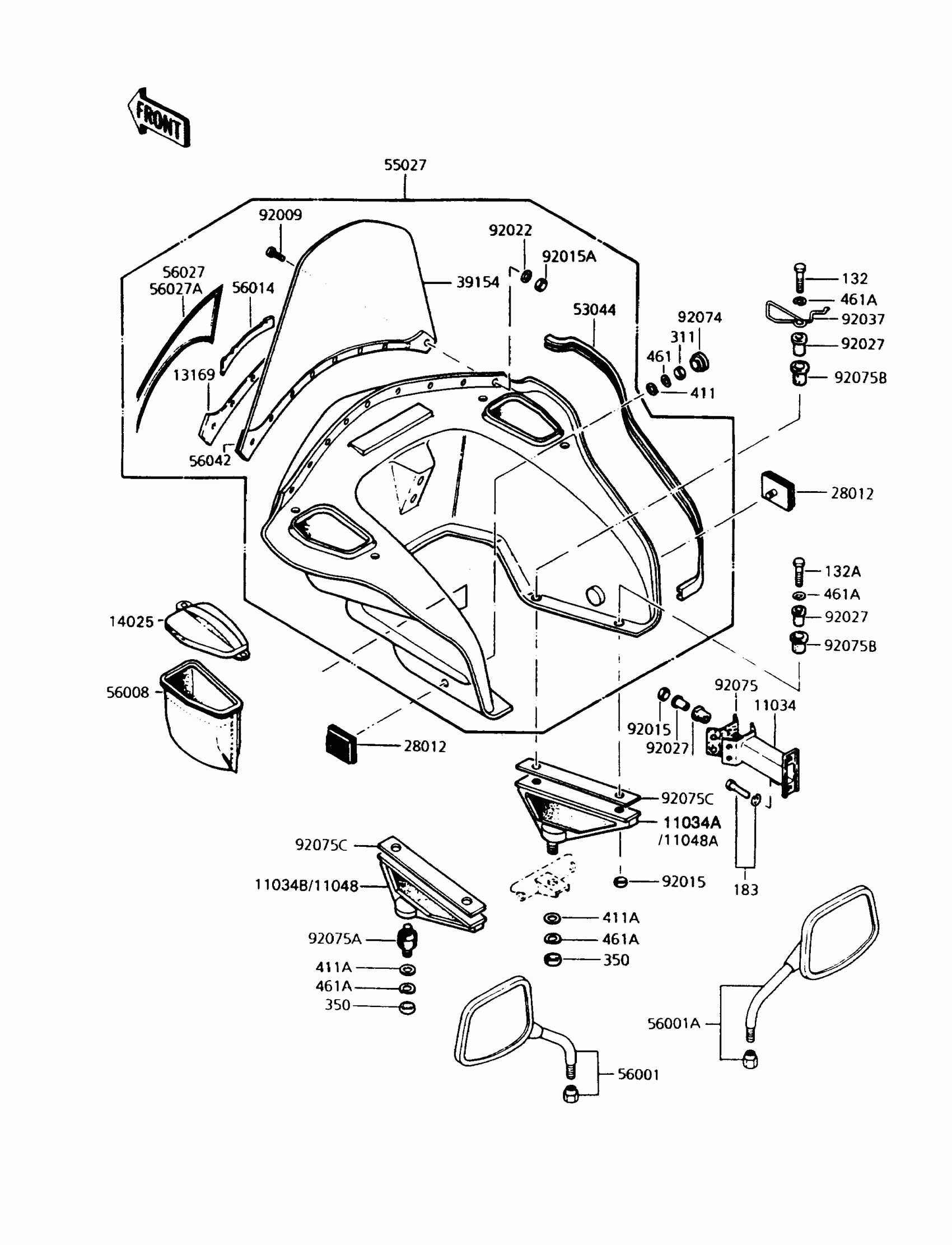

Kawasaki Police 1000 Cowling Diagram

#

Description
Price

11034

BRACKET,COWLING,FR

11034-4089

$127.88

11048

BRACKET,COWLING,LH

11048-1470

$162.38

11048A

BRACKET,COWLING,RH

11048-1471

$162.38

13169

PLATE,WINDSHIELD

13169-4014

Unavailable

14025

COVER,BAG

14025-4013

Unavailable

28012

REFLECTOR-REFLEX

28012-1003

$20.69

39154

WINDSHIELD

39154-4003

Unavailable

53044

TRIM,COWLING

53044-4001

$51.70

55027

COWLING-ASSY,J.WHITE

55027-4003-8C

$1,634.81

56001

MIRROR-ASSY,LH

56001-1368

$80.98

56001A

MIRROR-ASSY,RH

56001-1369

$80.98

56008

BAG

56008-4003

Unavailable

56014

EMBLEM,GOLD

56014-4011

Unavailable

56027

PATTERN,PINSTRIPE,RH

56027-4055

Unavailable

56027A

PATTERN,PINSTRIPE,LH

56027-4056

Unavailable

56042

ADHESIVE

56042-4003

$4.86

92009

SCREW,PLASTIC,5X28

92009-4005

$1.61

92015

NUT,LOCK,8MM

92015-1124

$4.30

92015A

NUT,PLASTIC,5MM

92015-4014

$1.19

92022

WASHER,PLAIN,5MM,PLASTIC

92022-4015

Unavailable

92027

COLLAR

92027-4015

$8.44

92037

CLAMP,COWLING HARNESS

92037-4005

$38.67

92074

PLUG

92074-027

$9.49

92075

DAMPER,COWLING FITTING

92075-1179

$13.03

92075A

DAMPER,COWLING BRACKET

92075-4013

Unavailable

92075B

DAMPER

92075-4020

$2.36

92075C

DAMPER,COWLING BRACKET

92075-4033

Unavailable

132

BOLT-FLANGED-SMALL,8X30

132E0830

$5.07

132A

BOLT-FLANGED-SMALL,8X35

132E0835

$4.37

183

BOLT-UPSET-WS-SMALL

183G0816

Unavailable

311

NUT-HEX

311B0500

$0.51

350

NUT-UNF INSERT

350BA1000

$4.15

411

WASHER-PLAIN,5MM

411B0500

Unavailable

411A

WASHER PLAIN 8MM

411B0800

Unavailable

461

WASHER SPRING 5MM

461F0500

Unavailable

461A

WASHER SPRING 8MM

461F0800

Unavailable
