1986 Kawasaki Police 1000 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1986 Kawasaki Police 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

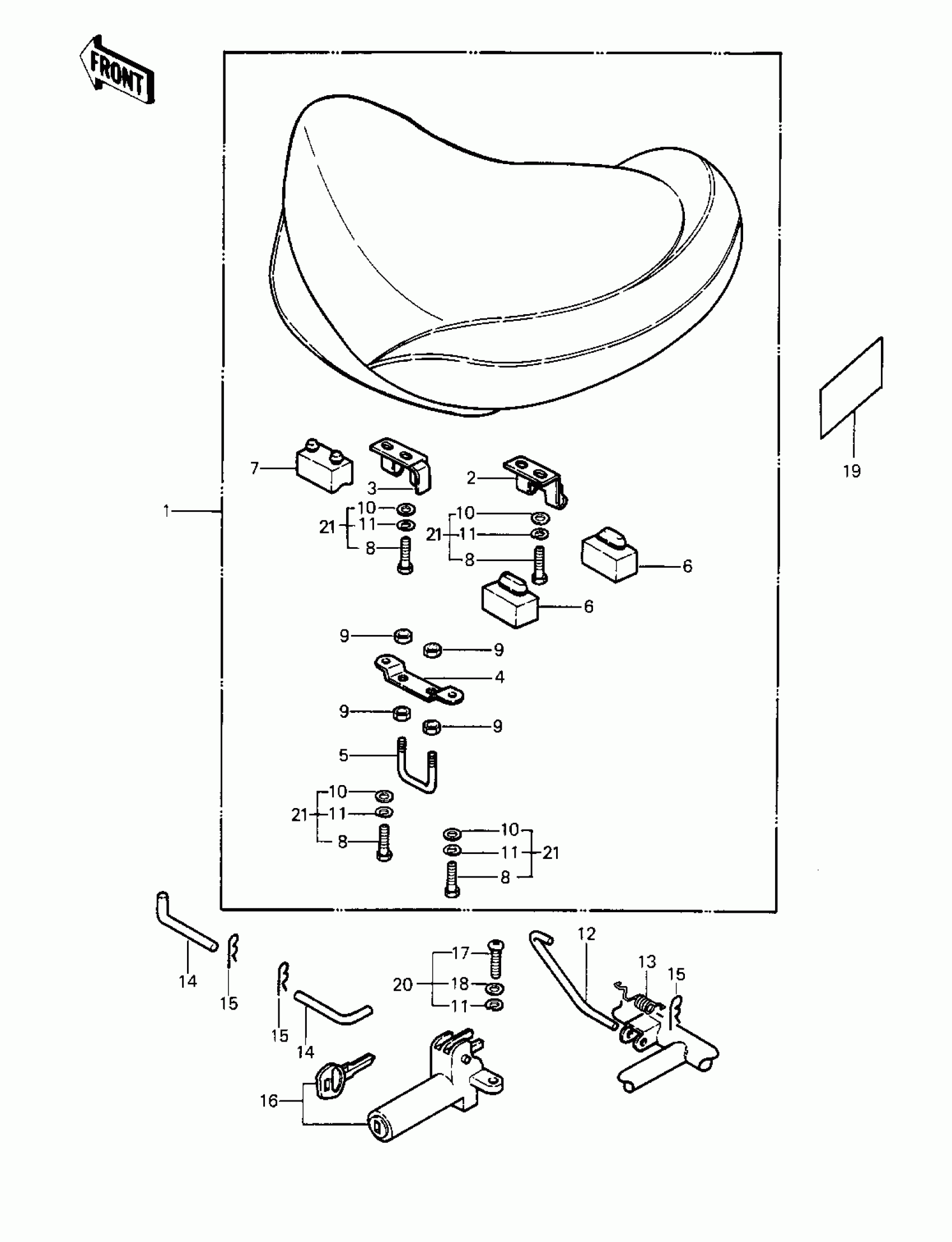

1986 Kawasaki Police 1000 Seat Diagram

#

Description
Price
Status
Order Qty

1

SEAT-ASSY

53001-1220

Out of stock

2

HINGE,BLACK

53009-017-10

Out of stock

3

HINGE,SEAT,FR

53009-1029

$15.59

In stock

4

BRACKET,SEAT CATCH

11034-1329

$15.71

In stock

5

HOOK,SEAT

53056-002

$15.71

In stock

6

DAMPER

92075-099

$4.37

In stock

7

DAMPER,SEAT

92075-1133

Out of stock

8

BOLT-UPSET 6X14

112B0614

Out of stock

9

NUT 6MM

311B0600

Out of stock

10

WASHER PLAIN 6MM

411B0600

Out of stock

11

WASHER SPRING 6MM

461F0600

Out of stock

11

WASHER SPRING 6MM

461F0600

Out of stock

12

STAY,SEAT STAND

35011-4003

$10.63

In stock

13

SPRING,SEAT HOOK

92081-1053

$14.39

In stock

14

PIN,SEAT PIVOT

92043-1021

Out of stock

15

PIN,SNAP

554A0600

Out of stock

16

LOCK ASSY,SEAT

27016-5015

$111.76

In stock

17

$1.32

In stock

17

BOLT-UPSET 6X14

112B0614

Out of stock

18

$1.19

In stock

19

LABEL-MANUAL,CHAIN

56031-1157

Out of stock

20

BOLT 6X14

187B0614

Out of stock

21

$0.86

In stock
