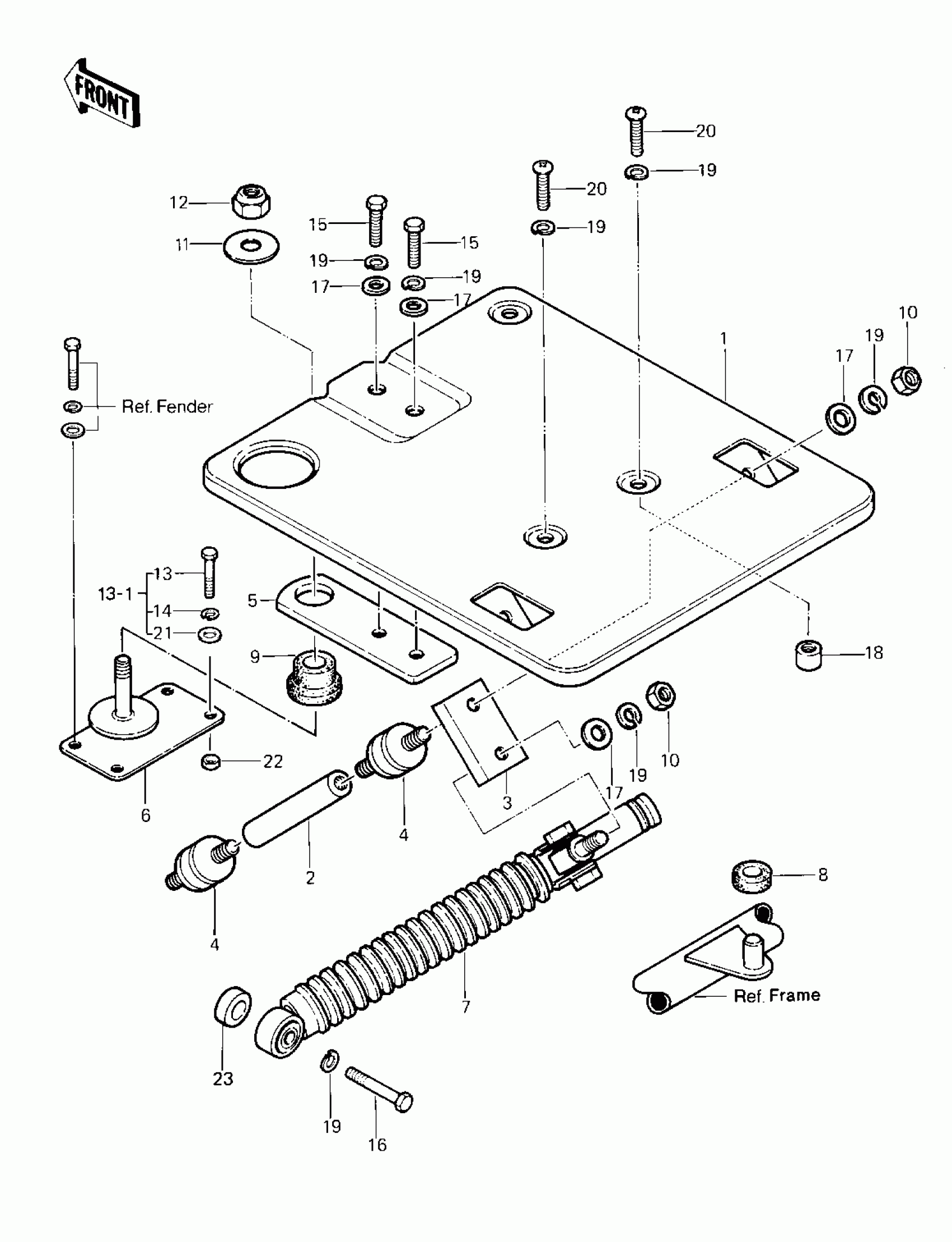

Kawasaki Police 1000 CARRIER Diagram

#

Description
Price

1

CARRIER

53029-4002

Unavailable

2

ARM,CARRIER DAMPER

21083-4006

$58.56

3

BRACKET,CARRIER SIDE DAMPER

11034-4103

$8.39

4

DAMPER,CARRIER

92075-4040

Unavailable

5

BRACKET,CARRIER,FR

11034-4034

$37.62

6

BRACKET,FR CARRIER DAMPER

11034-4159

$47.52

7

SHOCKABSORBER,RR

45014-4005

Unavailable

8

DAMPER

92075-203

$7.81

9

DAMPER,CARRIER

92075-4006

$29.31

10

NUT-HEX-SMALL,8MM

317B0800

Unavailable

11

WASHER

92022-4002

$13.03

12

NUT-LOCK,12MM

92019-009

$7.20

13

BOLT 6X22

112B0622

Unavailable

13-1

BOLT-UPSET-WSP

187B0622

$3.69

14

WASHER SPRING 6MM

461F0600

Unavailable

15

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

15

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

16

BOLT

114G0836

Unavailable

16

BOLT-SMALL-UPSET

115G0835

Unavailable

17

WASHER PLAIN 8MM

411B0800

Unavailable

18

BOSS,CARRIER SPACER

13061-4005

$2.34

19

WASHER SPRING 8MM

461F0800

Unavailable

20

SCREW-PAN-CROS,8X14

220B0814

Unavailable

21

WASHER PLAIN 6MM

411B0600

Unavailable

22

NUT,FLANGED,6MM

92015-1078

Unavailable

23

SPACER

92026-4003

$0.85
