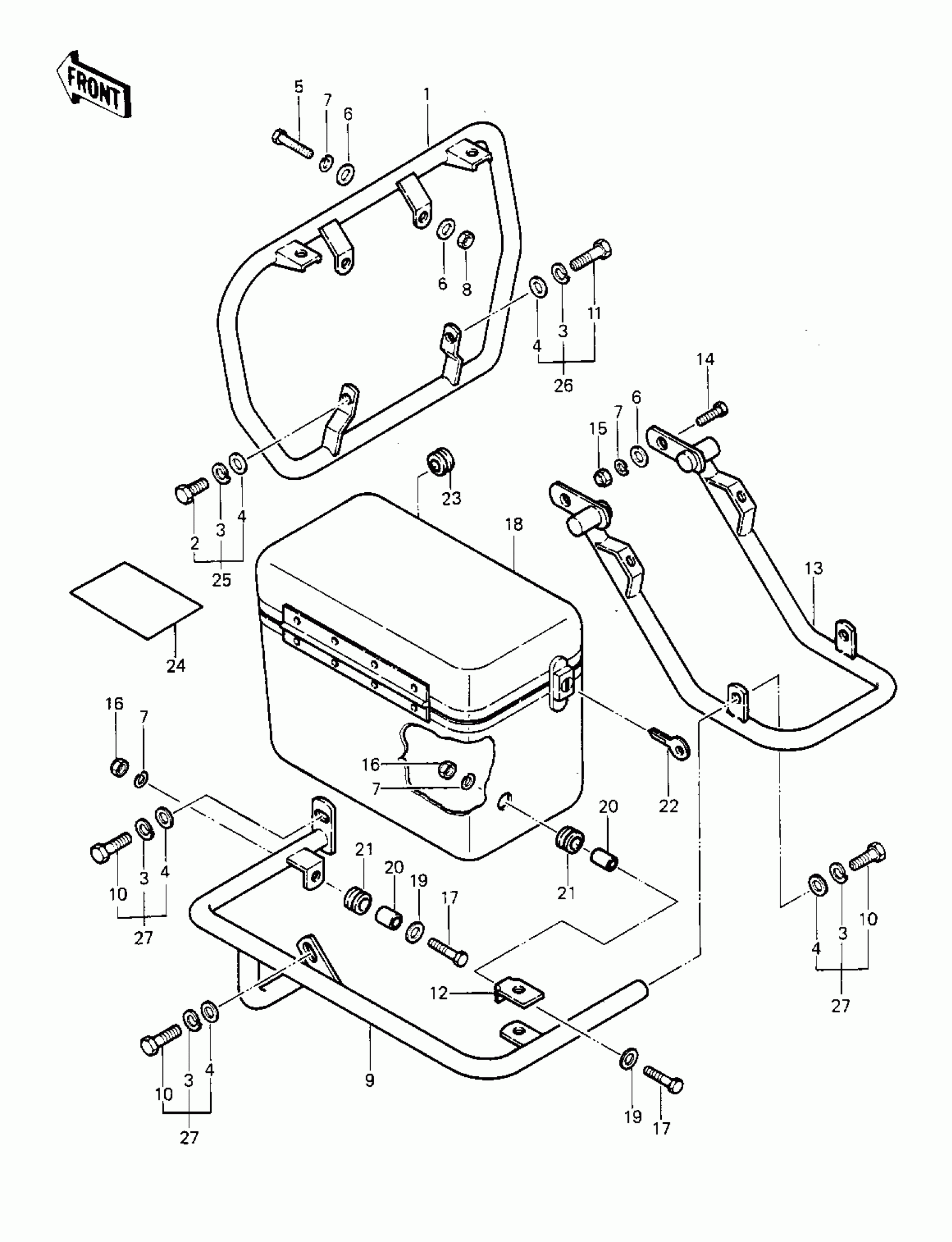

Kawasaki Police 1000 GUARDS/SADDLEBAGS Diagram

#

Description
Price

1

GUARD,FR

55020-1070

$464.11

2

BOLT-UPSET,10X20

112B1020

Unavailable

3

WASHER SPRING 10MM

461F1000

Unavailable

4

WASHER PLAIN 10MM

410B1000

Unavailable

4

WASHER-PLAIN,10MM

411B1000

Unavailable

5

BOLT-SMALL-UPSET

115G0845

Unavailable

6

WASHER PLAIN 8MM

410B0800

Unavailable

7

WASHER SPRING 8MM

461F0800

Unavailable

8

NUT-HEX-SMALL,8MM

317B0800

Unavailable

9

GUARD,SADDLE BAG,LH

55020-1071

$444.17

9

GUARD,SADDLE BAG,RH

55020-1072

$444.17

10

BOLT-UPSET,10X30

112G1030

Unavailable

11

BOLT,HEX HEAD 10X40

92001-1253

Unavailable

12

BRACKET,CARRIER BAG DAMPER

11034-4137

$13.03

13

GUARD,RR

55020-1073

$512.68

14

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

15

NUT,8MM

311B0800

Unavailable

16

NUT-CAP-SMALL,8MM

323N0800

$4.08

17

BOLT-SMALL-UPSET

115B0832

Unavailable

17

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

18

BAG,LH

56008-4006

$455.64

18

BAG,RH

56008-4007

$517.75

19

WASHER,8.5X20X1.6

92022-1561

$3.43

20

COLLAR

92027-280

$1.34

21

DAMPER

92075-303

Unavailable

22

KEY

27008-4001

$7.56

23

DAMPER,AMPLIFIER HARNESS

92075-4012

Unavailable

24

LABEL,TIRE&LOAD DATA

56037-4012

Unavailable

25

UNAVAILABLE IN PRICE BOOK

162B1-020

Unavailable

26

UNAVAILABLE IN PRICE BOOK

162B1-020

Unavailable

27

BOLT-FINE-WSP

162B1030

Unavailable
