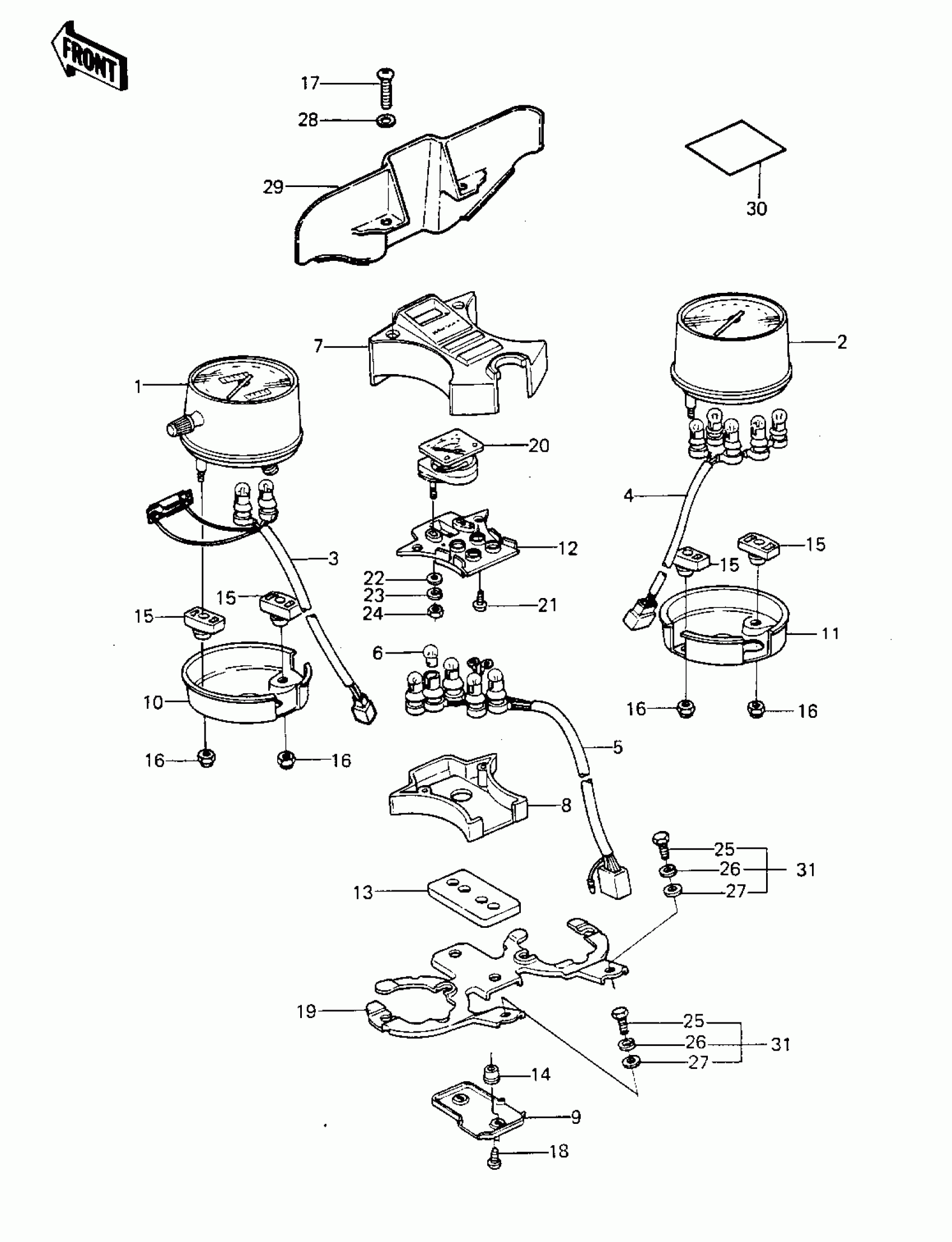

Kawasaki Police 1000 METERS Diagram

#

Description
Price

1

SPEEDOMETER,MPH

25005-1170

$1,213.98

2

TACHOMETER,X1000RPM

25015-1114

$754.73

3

SOCKET-ASSY,SPEEDOMETER

23008-1142

$94.65

4

SOCKET-ASSY,TACHOMETER

23008-1143

$104.19

5

SOCKET-ASSY,FUEL METER

23008-1144

Unavailable

6

BULB,12V 3.4W,T10

92069-1007

$3.97

7

COVER-METER CASE,PILOT BOX,UPP

25023-4004

$88.71

8

COVER,PILOT BOX,LWR

14025-4020

$35.61

9

COVER,METER BRACKET

14025-1211

$15.59

10

COVER,SPEEDOMETER

14025-4019

$51.67

11

COVER,TACHOMETER

14025-1458

$51.67

12

PLATE,SOCKET

13169-1238

$20.14

13

DAMPER,PILOT BOX

92075-1246

$18.02

14

DAMPER,METER

25019-023

$3.42

15

DAMPER,SHOCK,METER

92075-1101

$8.39

16

NUT-CAP

322C0500

Unavailable

17

SCREW-PAN-CROS

220C0445

$3.12

18

SCREW,TAPPING,4X10

92009-1040

$3.25

19

BRACKET-METER

25008-4001

$89.53

20

METER,FUEL

28011-1027

$138.51

21

SCREW,TAPPING,3.5X12

92008-012

$3.92

22

WASHER PLAIN 4MM

410B0400

Unavailable

23

WASHER SPRING 4MM

461F0400

Unavailable

24

NUT-HEX

311B0400

Unavailable

25

BOLT-UPSET 6X14

112B0614

Unavailable

26

WASHER SPRING 6MM

461F0600

Unavailable

27

WASHER PLAIN 6MM

411B0600

Unavailable

28

WASHER-PLAIN-SMALL,4MM,BLACK

410F0400

$0.53

28

WASHER-PLAIN-SMALL,4MM,BLACK

410F0400

$0.53

29

COVER-METER CASE

25023-4003

$11.22

30

LABEL-WARNING,BREAK IN CAUTION

56040-1007

$5.32

31

BOLT 6X14

187B0614

Unavailable
