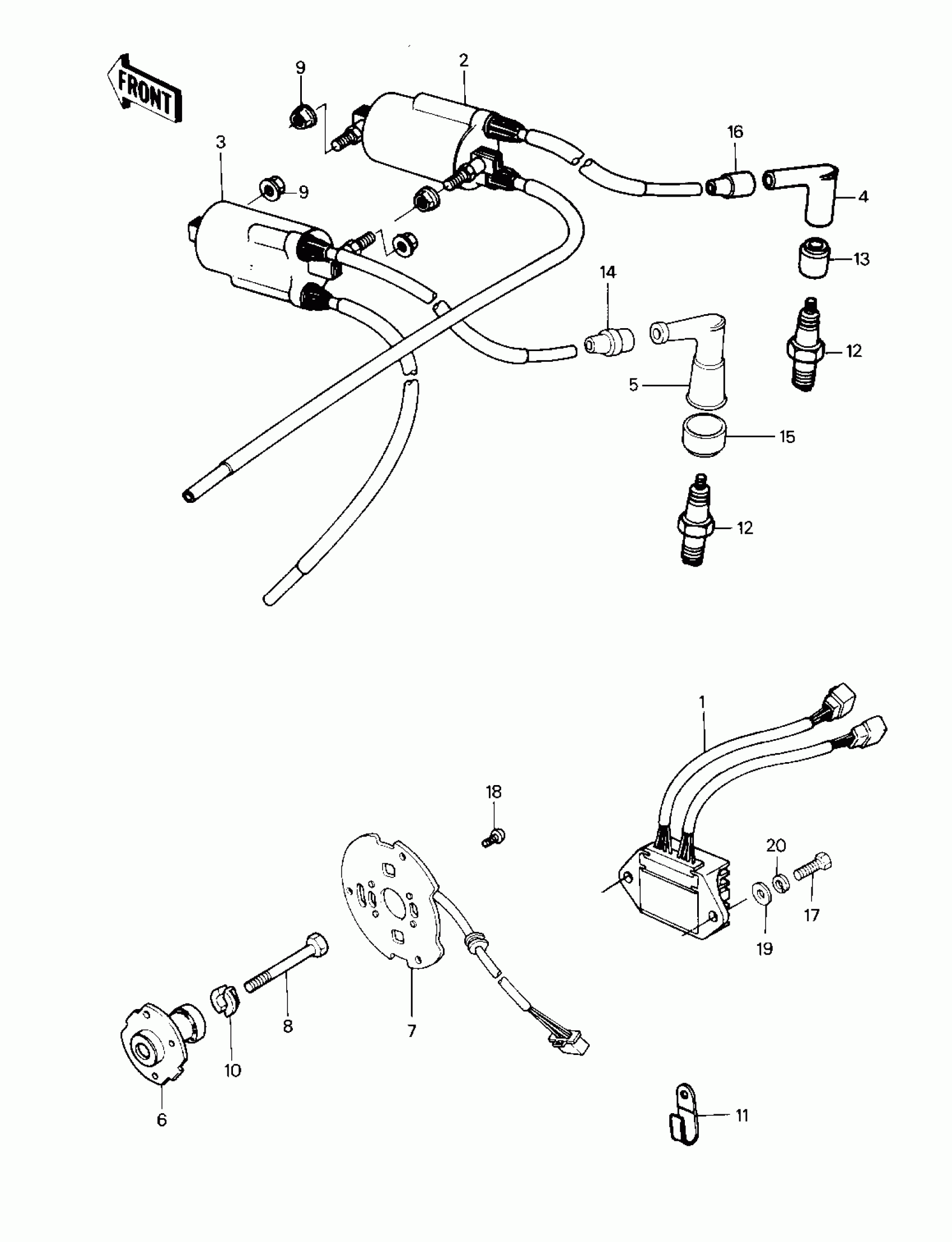

Kawasaki Police 1000 IGNITION Diagram

#

Description
Price

1

IGNITER

21119-1041

$733.53

2

COIL-IGNITION,#1&4

21121-1038

$153.29

3

COIL-IGNITION,#2&3

21121-1039

Unavailable

4

CAP-SPARK PLUG,RTFM20

21130-1007

Unavailable

5

CAP-SPARK PLUG

21130-1010

$52.70

6

GOVERNOR-BREAKER

21148-1020

$174.32

7

COIL-PULSING

59026-1012

$242.17

8

BOLT,8X63

92001-1397

$4.27

9

NUT,FLANGED,6MM

92015-1078

Unavailable

9

NUT,FLANGED,6MM

92015-1078

Unavailable

10

WASHER,BREAKER GOVERNOR

92022-244

$13.39

11

CLAMP,WIRING HARNESS

21126-008

$3.75

12

SPARK PLUG BR8ES

BR8ES

$2.92

13

GROMMET,PLUG CAP

21131-004

$10.81

14

GROMMET,HIGH TENSION

21131-005

$4.88

15

GROMMET,PLUG CAP

21131-006

$6.77

16

GROMMET,HIGH TENSION

21132-005

$3.39

17

BOLT-UPSET

112G0618

Unavailable

18

SCREW-PAN-CROS

220B0512

$0.51

19

WASHER PLAIN 6MM

411B0600

Unavailable

20

WASHER SPRING 6MM

461F0600

Unavailable
