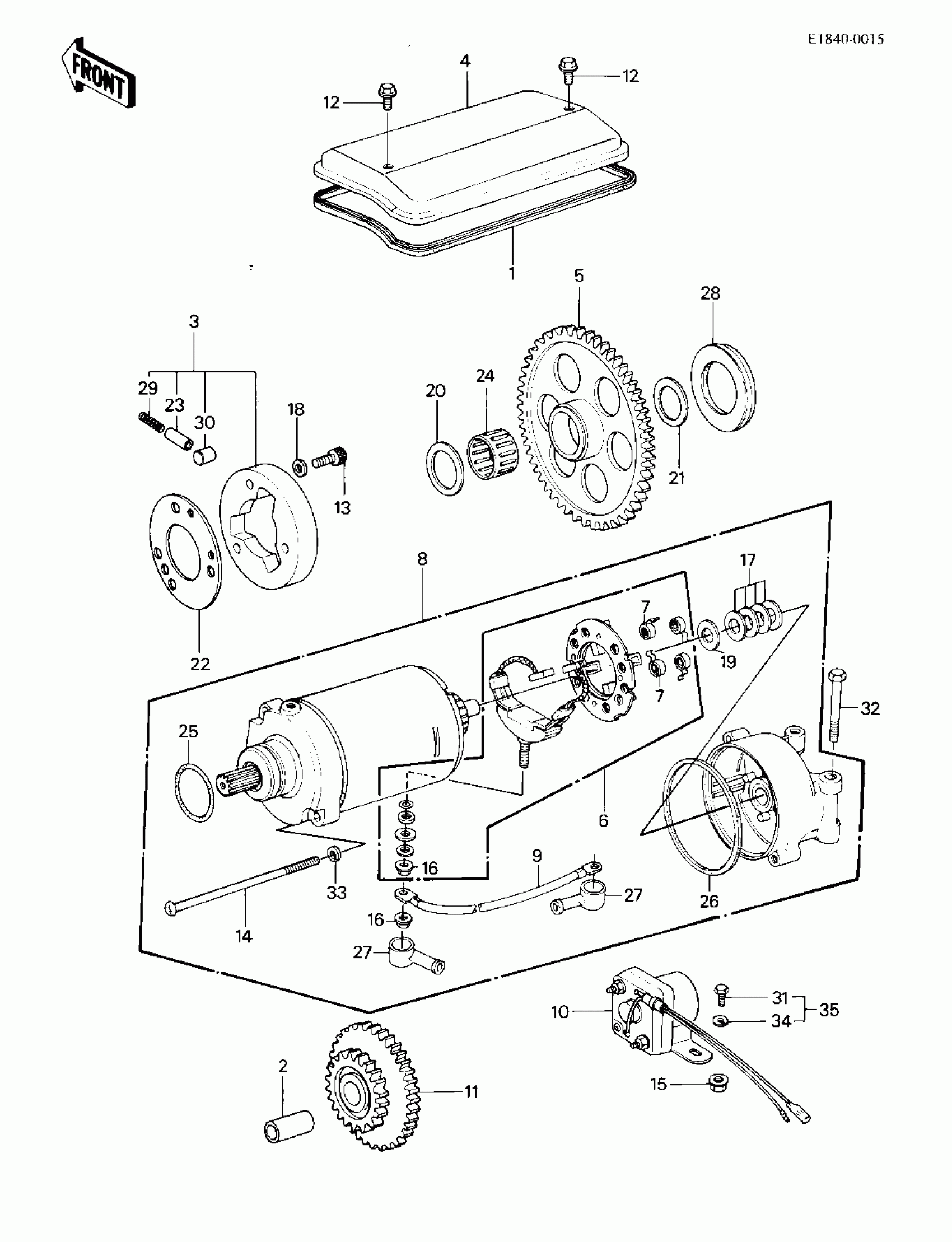

Kawasaki Police 1000 STARTER MOTOR/STARTER CLUTCH Diagram

#

Description
Price

1

GASKET,STARTER COVER

21166-001

$37.40

2

PIN

13002-007

$17.07

3

CLUTCH-ASSY-ONEWAY

13193-1006

$182.70

4

COVER,STARTER

14025-1245

$44.97

5

GEAR,STARTER CLUTCH

16085-1012

$236.72

6

BRUSH SET,CARBON

21039-1005

Unavailable

6

BRUSH,CARBON

21039-1053

$96.05

6

BRUSH,CARBON

21039-1053

$96.05

7

SPRING,CARBON BRUSH

21040-1002

$10.73

7

SPRING-BRUSH

21040-1003

$9.12

8

STARTER-ELECTRIC

21163-1143

$639.91

8

STARTER-ELECTRIC

21163-1143

$639.91

8

STARTER-ELECTRIC

21163-1143

$639.91

8

STARTER-ELECTRIC

21163-1086

$639.91

9

WIRE-LEAD,STARTER MOTOR

26011-1135

$75.70

10

SWITCH,MAGNETIC

27010-1047

Unavailable

11

GEAR-SPUR,STARTER MOTOR

21167-002

Unavailable

12

BOLT,6X10

92001-1151

$4.42

13

BOLT-SOCKET,8X16

120P0816

Unavailable

14

SCREW,PAN HEAD,5X110

21015-005

$9.86

15

NUT,FLANGED,6MM

92015-1078

Unavailable

16

NUT,FLANGED,6MM

92015-1078

Unavailable

17

WASHER,9.1X18X0.2

21025-011

$5.42

18

WASHER,8.5X13.5X2

92022-1108

$3.85

19

WASHER,9.1X18X0.8

92022-1132

$5.42

20

SPACER,25X38X1.0

92026-1031

$8.22

21

SPACER,25X34X2.0

92026-1033

$7.46

22

PLATE,CLUTCH STARTER

92026-112

Unavailable

23

PIN

92043-087

$10.11

24

BEARING-NEEDLE,K253020S

92046-1022

Unavailable

25

RING-O,STARTER MOTOR,25MM

21027-004

$7.86

26

RING-O,64MM

92055-1086

$9.68

27

GROMMET,STARTER TERMINAL

21017-017

$7.48

27

CAP,TERMINAL

11012-1354

$9.85

28

DAMPER,T=6.3

92075-1129

$25.68

28

DAMPER,T=7.3

92075-1130

$23.36

28

DAMPER,T=8.3

92075-1131

Unavailable

29

SPRING

92081-110

$3.78

30

ROLLER,15X14.4

92122-001

$9.19

31

BOLT-UPSET,6X12

112G0612

Unavailable

32

BOLT,EXCLUSIVE

92001-1456

Unavailable

32

BOLT,EXCLUSIVE

92001-1456

Unavailable

33

WASHER SPRING 5MM

461F0500

Unavailable

34

WASHER SPRING 6MM

461F0600

Unavailable

35

BOLT 6X12

180B0612

Unavailable
