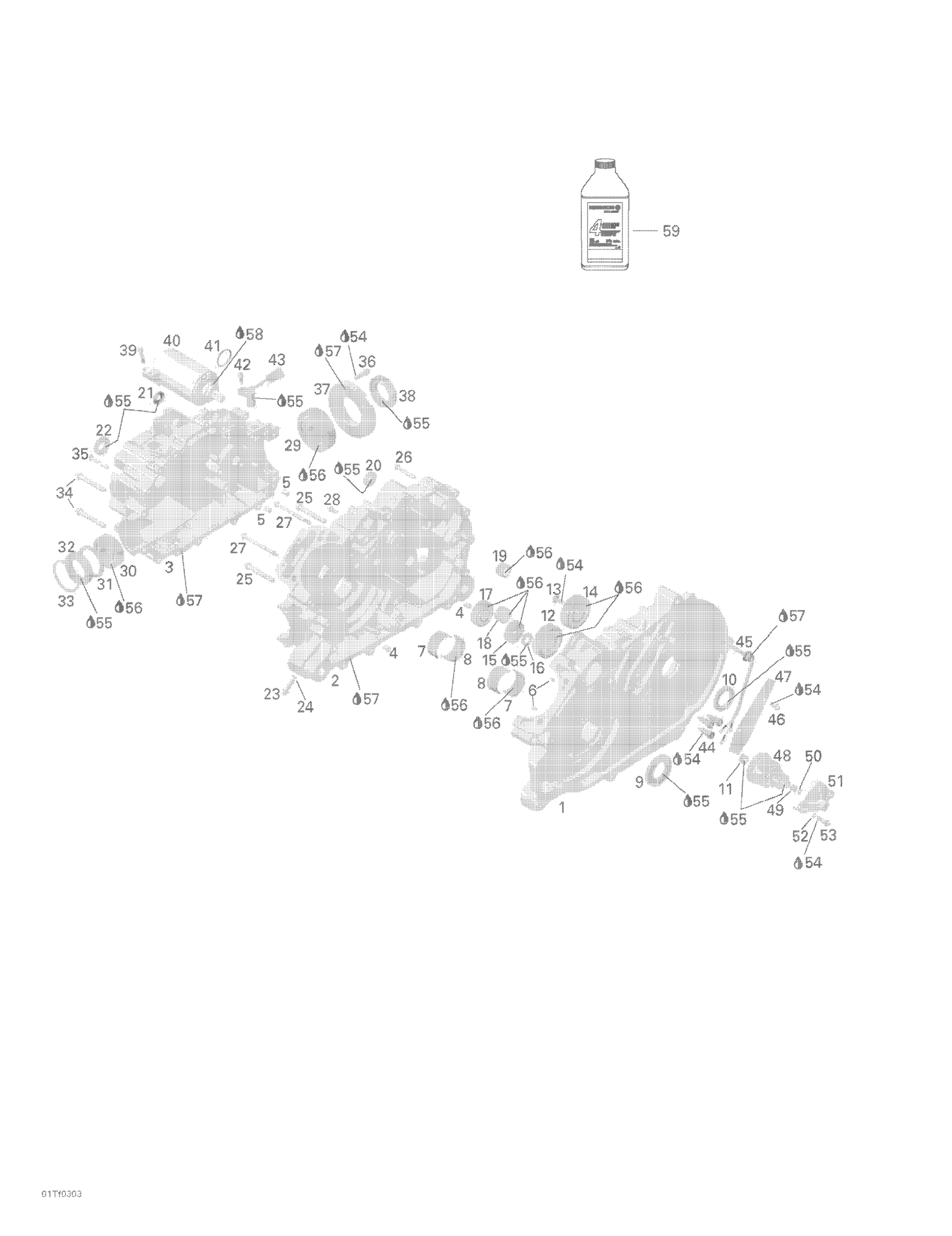

Can-Am Outlander 400, 2003 Crankcase Diagram

#

Description
Price

1

CRANKCASE ASS'Y - Call your local BRP dealership | Includes 1 to 22

420296761

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Center Pin 8 X 12

420632010

$3.07

5

Center Pin 8 X 12

420632010

$3.07

6

Drive Pin 5 X 10

420929650

$1.34

7

Plain Bearing

420233960

$22.79

8

Plain Bearing

420233965

$22.79

9

Oil Seal

420630152

$16.12

10

Oil Seal

420950089

$18.43

11

Needle Bushing

420232482

$15.57

12

Ball Bearing

420632295

$45.12

13

Torx Screw M6 X 16

420241529

$1.56

14

Ball Bearing

420932822

$28.97

15

Ball Bearing 6302

420232291

$28.43

16

Oil Seal

420250130

$17.66

17

Ball Bearing 6204

420932433

$22.28

18

Needle Bushing

420232085

$36.09

19

Needle Bushing

420832240

$19.94

20

Oil Seal

420250450

$16.89

21

Oil Seal

420650315

$9.62

22

Oil Seal

420930392

$11.77

23

FLANGED TORX SCREW M8 X 25 - Call your local BRP dealership

420641243

Unavailable

24

Sealing Ring

420950141

$1.64

25

Torx Flange Screw M8 x 65

420640333

$4.39

26

SOCKET HEAD SCREW M6 X 45 - Call your local BRP dealership

420241822

Unavailable

27

Torx Flange Screw M6 X 85

420641228

$6.11

28

Torx Flange Screw M6 x 16

420641043

Unavailable

29

Ball Bearing 6405

420632280

$93.82

30

Ball Bearing

420932822

$28.97

31

DISTANCE RING - Call your local BRP dealership

420247250

Unavailable

32

Oil Seal

420650682

$18.43

33

RETAINING RING - Call your local BRP dealership

420445070

Unavailable

34

Torx Flange Screw M8 x 65

420640333

$4.39

35

SOCKET HEAD SCREW M6 X 45 - Call your local BRP dealership

420241822

Unavailable

36

FLANGED TORX SCREW M8 X 25 - Call your local BRP dealership

420641243

Unavailable

37

Bearing Cover

420610243

$55.35

38

Oil Seal

420650682

$18.43

39

Socket Head Screw M6 X 35 | Formula Deluxe 583. This part replaces 420241811.

420241814

$1.74

40

Electric Starter | Includes 37 to 38

420684283

$252.69

40

Not Available As Spare Part - Friction Washer

Unavailable

40

BRUSH KIT - Call your local BRP dealership

420266305

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Torx Flange Screw M6 x 16

420641043

Unavailable

43

Camshft Position Sensor Ass'y

420265727

$104.49

44

Position Switch

420241856

$35.14

45

Wiring Harness

420265831

$50.74

46

Torx Flange Screw M6 x 16

420641043

Unavailable

47

Cover Sheet

420251290

$10.98

48

Starter Drive Assembly

420684052

$267.66

49

Spring

420938204

$5.29

50

Washer 5.3

420927574

$1.85

51

Reduction Cover Gear

420610891

$23.05

52

SPRING WASHER - Call your local BRP dealership

420845020

Unavailable

53

Hex. Screw M6 X 25

420240034

$1.56

54

Loctite 243, 10 ml

293800060

$20.77

55

Grease, Super Lube

293550030

$24.67

56

Not Available As Spare Part - Friction Washer

Unavailable

57

Loctite 5910, 300 ml

293800081

$57.99

58

Was 420297616 Klueber Grease, 60g

219704464

$23.82

59

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
